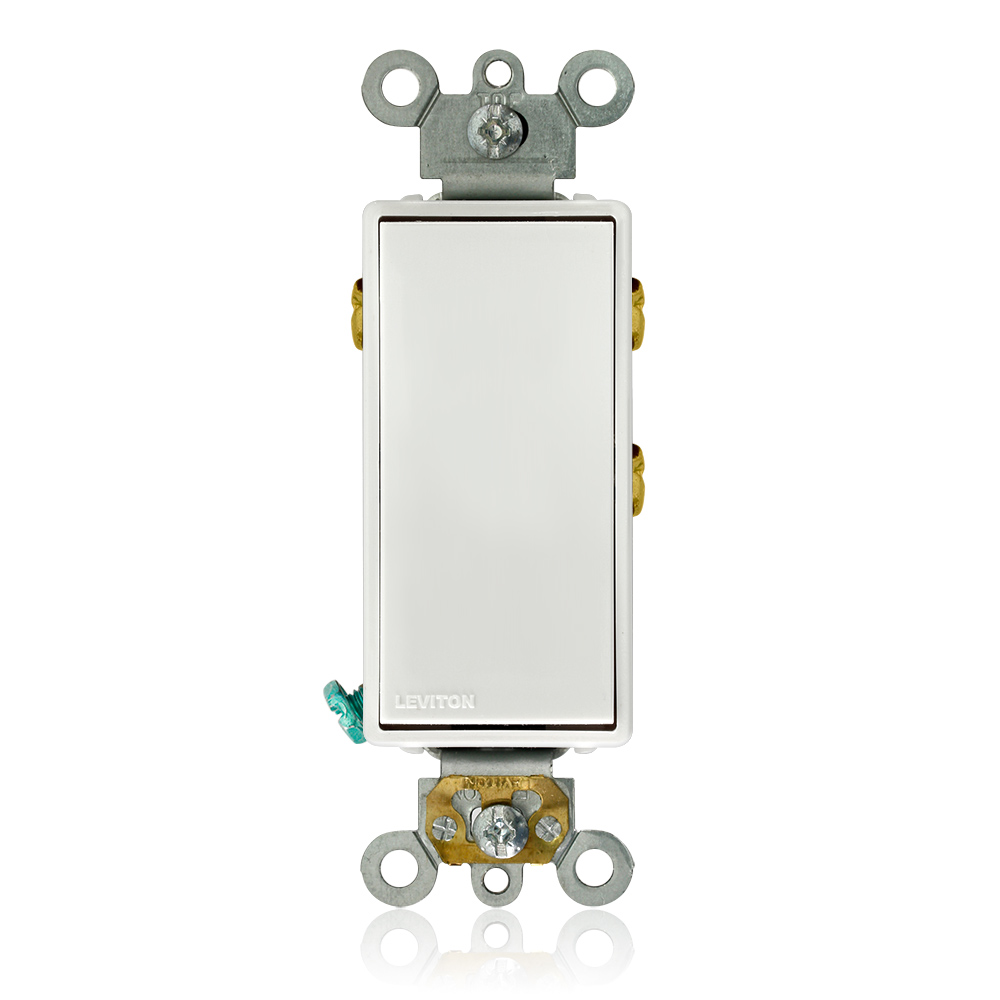

Product image for Leviton 5685-2W 15 Amp 120/277 Volt Decora Plus Rocker Double-Throw Maintained Contact 1-Pole White AC Quiet Switch
Image thumbnail 0
Image thumbnail 1
Email

Leviton 5685-2W 15 Amp 120/277 Volt Decora Plus Rocker Double-Throw Maintained Contact 1-Pole White AC Quiet Switch

Manufacturer: Leviton Mfg Co | Catalog # 5685-2W | Cooper Electric Part # 187375
$180.48/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
15 Amp, 120/277 Volt, Decora Plus Rocker Double-Throw Ctr-OFF Maintained Contact Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - Ivory

Technical Information

Action
SPDT
Actuator
Rocker
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Configuration
SPDT
Contact Rating
15 A, 120/277 VAC
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.70 W x 1.42 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Rocker Switch
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477789704
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477789704
Product UPC
07847778970

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Decora Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Color Variations
  • Black
Related Products
  • 5685-2E
  • 5685-2GY
  • 5685-2I
  • 5685-2T
