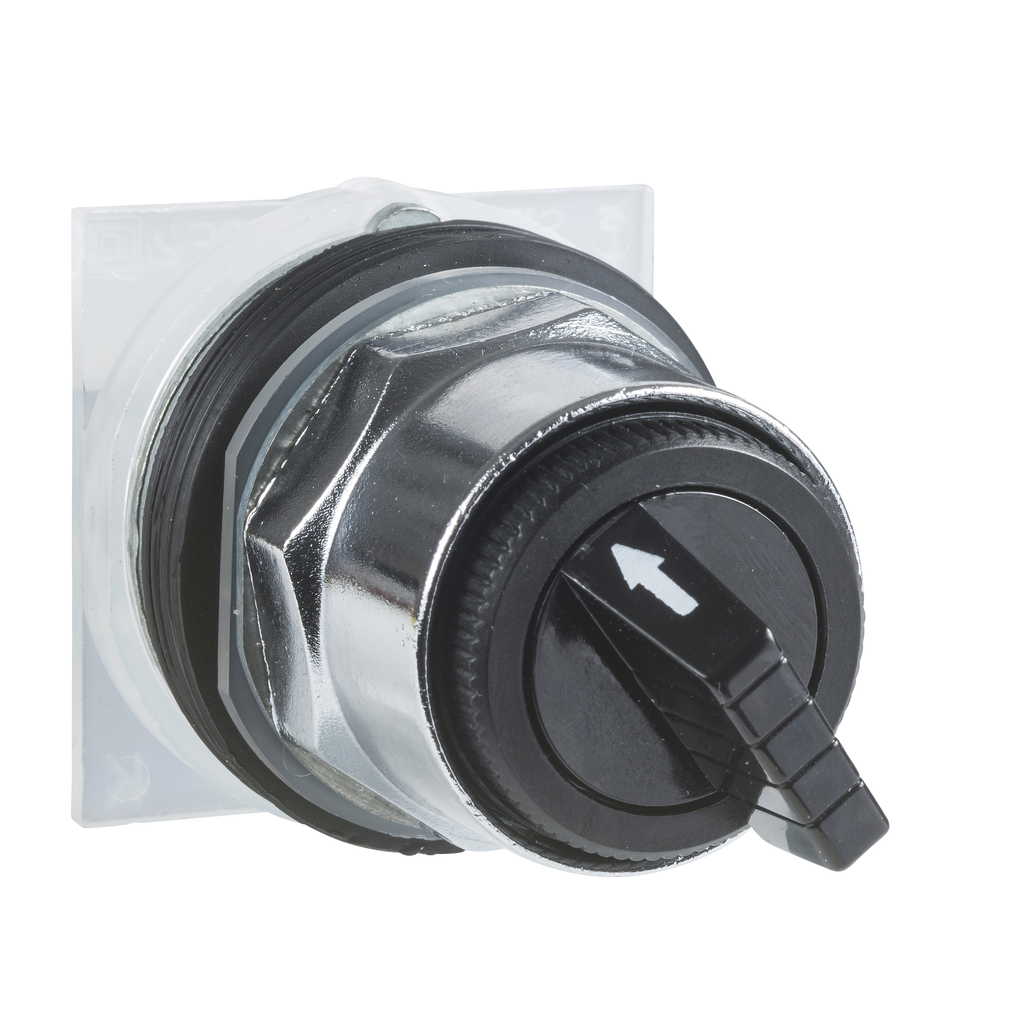

Product image for Square D 9001KS52FBH37 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 3-Position Round Knob Non-Illuminated Selector Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 9001KS52FBH37 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 3-Position Round Knob Non-Illuminated Selector Switch

Manufacturer: Square-D / Schneider | Catalog # 9001KS52FBH37 | Cooper Electric Part # 1870004
$152.15 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony 9001K selector switch, with a long blackhandle, has 3 positions and operates with a spring return mechanism (return both sides to center). It has a chromium-plated metal bezel. This selector switch is equipped with 1 NC + 1 NO contacts. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators. The Harmony 9001SK units, with a double insulated bezel, are designed for applications requiring high resistance to corrosion.

Technical Information

Action
SPRING RETURN
Actuator
3 positions
Amperage
10 Amp
Bezel Material
Metal
Contact Configuration
1 NO - 1 NC
Contact Rating
AC15 - DC13
Enclosure
NEMA 1/2/3/3R/4/6/12/13
Indicator
BLACK
Size
30 mm
TC Connection
SCREW-CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA IEC 60947-1
Type
Selector switch
Voltage
600 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
K

General Product Info

12-Digit UPC
785901165941
Color
Black
Environmental Conditions
WATER TIGHT, DUST TIGHT AND OIL TIGHT (INDOOR/OUTDOOR)
GTiN
00785901165941
Product UPC
78590116594

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA LR24590 Class 3211 03,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
Features
  • Improves security thanks to finger-safe contact blocks and light modules
  • Single screw Contact Block Fastening
  • Large metal set of accessories to customize your product
  • Automatic self-grounding operators without additional wiring
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
