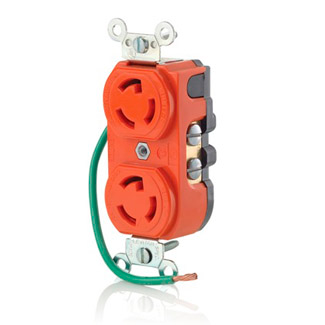

Product image for LEV 4750-IG OR REC LOCK DUP 2PO 3WI
Image thumbnail 0
Image thumbnail 1
Email

LEV 4750-IG OR REC LOCK DUP 2PO 3WI

Manufacturer: Leviton Mfg Co | Catalog # 4750-IG | Cooper Electric Part # 1868976
$56.71/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 277 Volt, NEMA L7-15R, 2P, 3W, Duplex Locking Receptacle, Industrial Grade, Isolated Ground, Integral 6" Ground Lead (no ground screw) - ORANGE

Technical Information

Amperage
15 Amp
Applications
For Commercial
Body Material
Nylon
Conductor Size
18-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Isolated
Horsepower
2 hp
Material
Nylon
Mounting Type
Box
NEMA

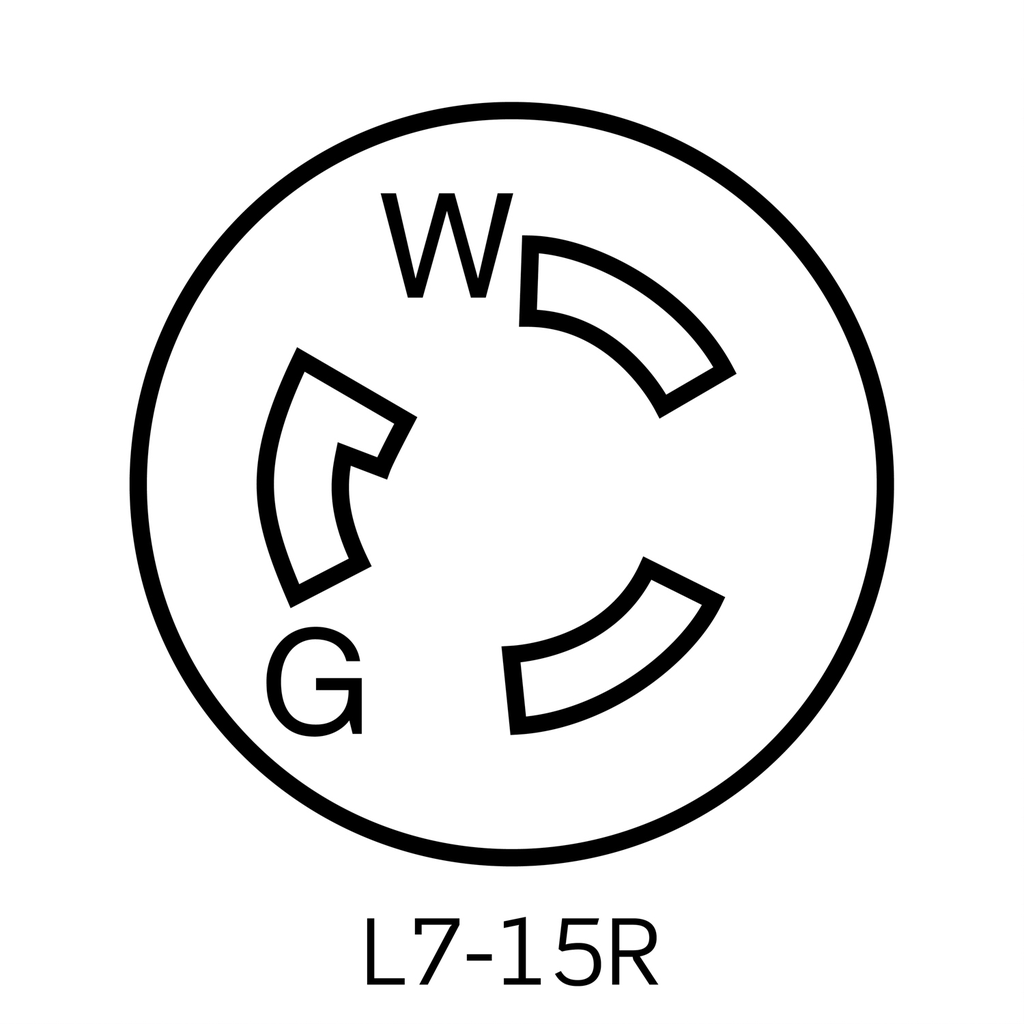

L7-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
46 H x 1.44 W x 1.20 D IN
Standard
ANSI C-73
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Termination Type
Back Wire,Side Wire
Type
Duplex Receptacle
Voltage
277 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477778067
Color
Orange
Environment
Dry
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477778067
Product UPC
07847777806

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
NEMA
  • L7-15R
