NSI ISPB2/0-4B POLARIS EDGE Conn 2/

Manufacturer: NSi | Catalog # ISPB2/0-4B | Cooper Electric Part # 1867988

$86.02/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet

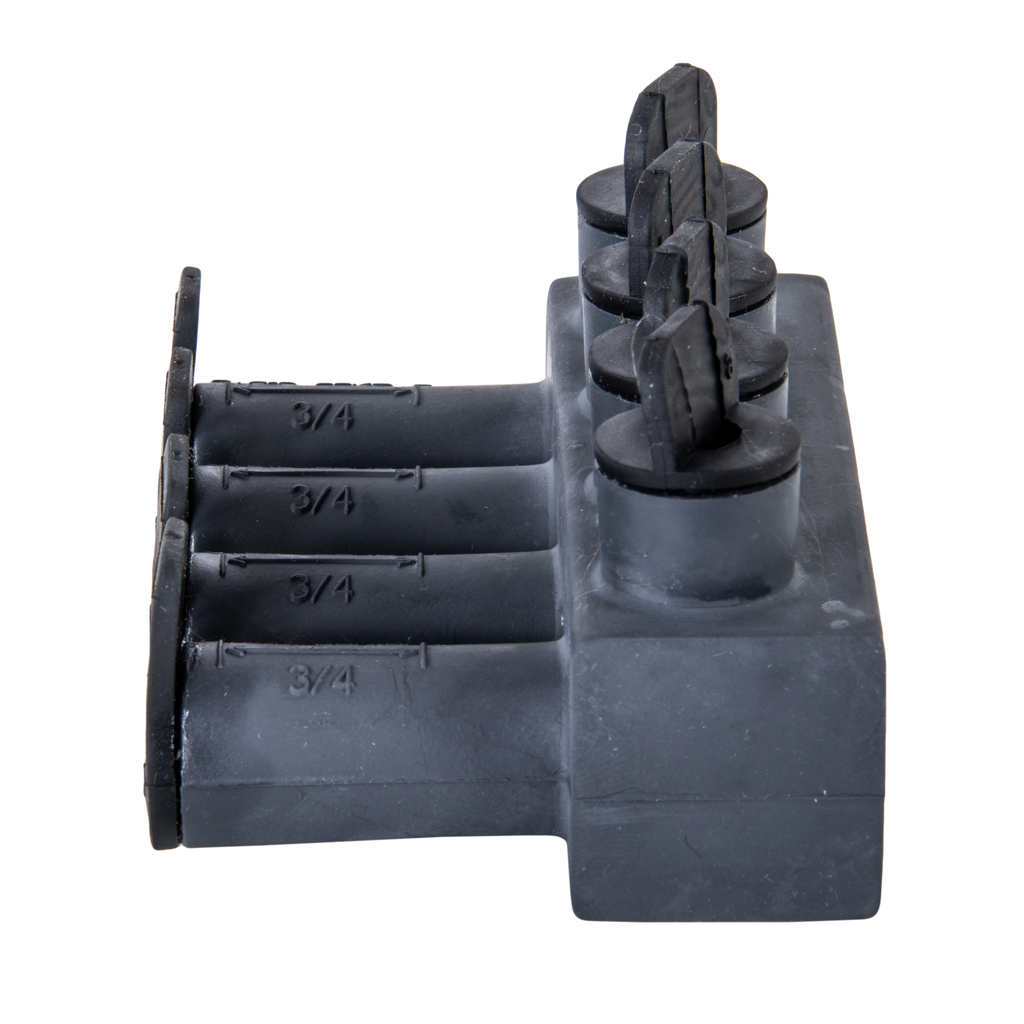

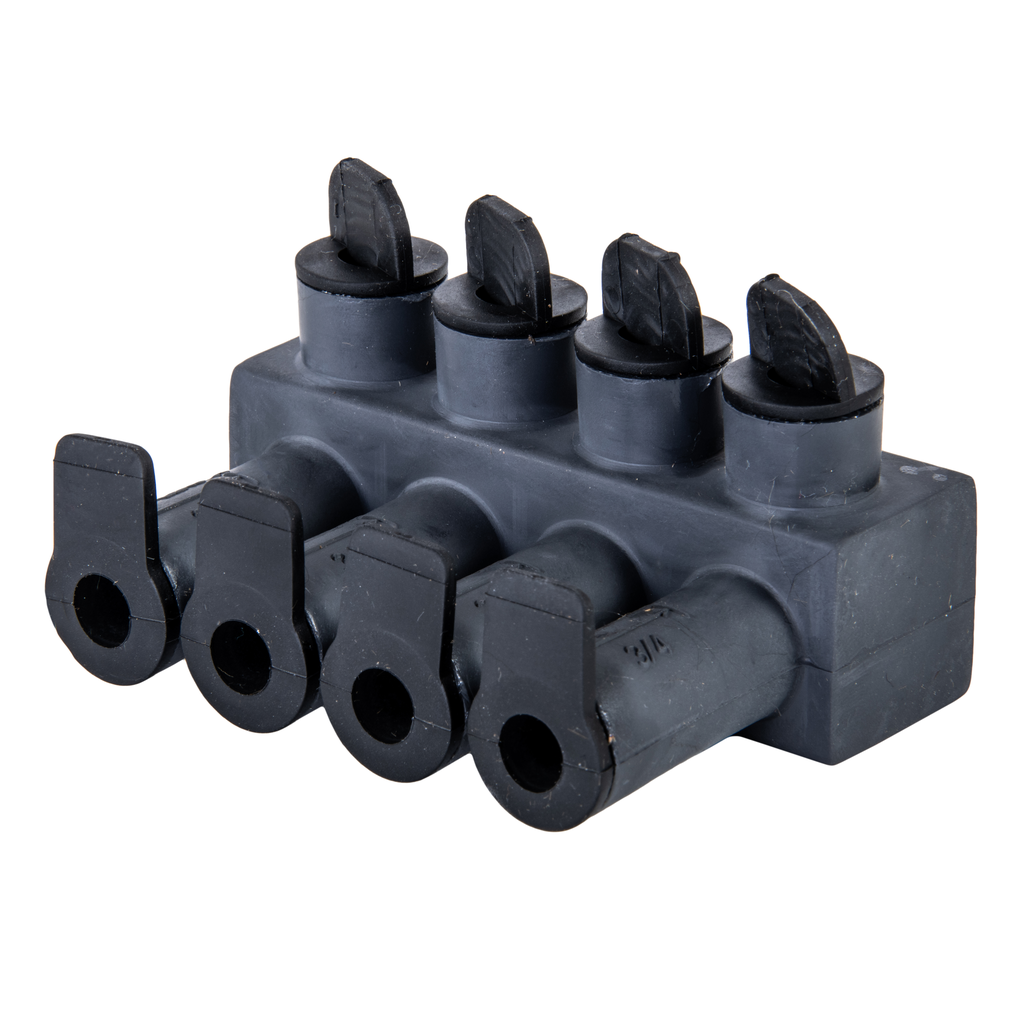

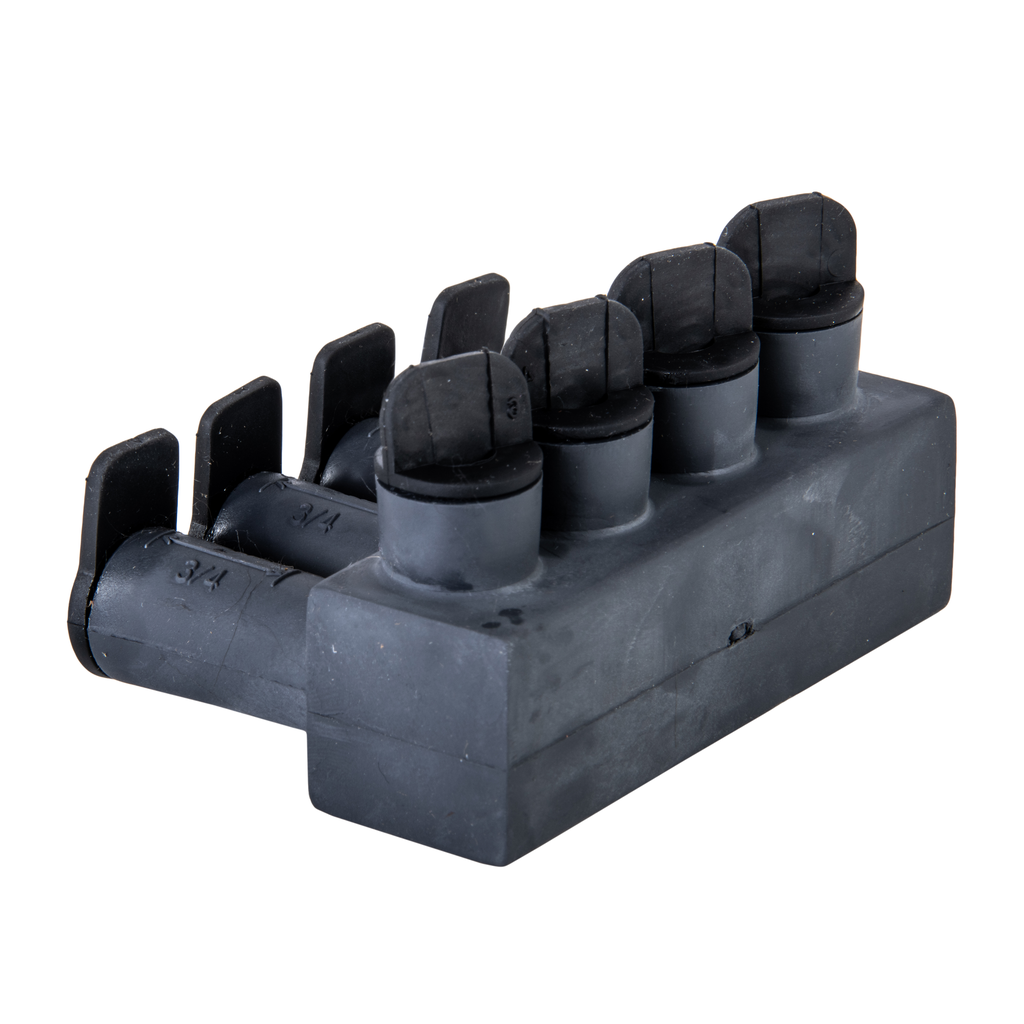

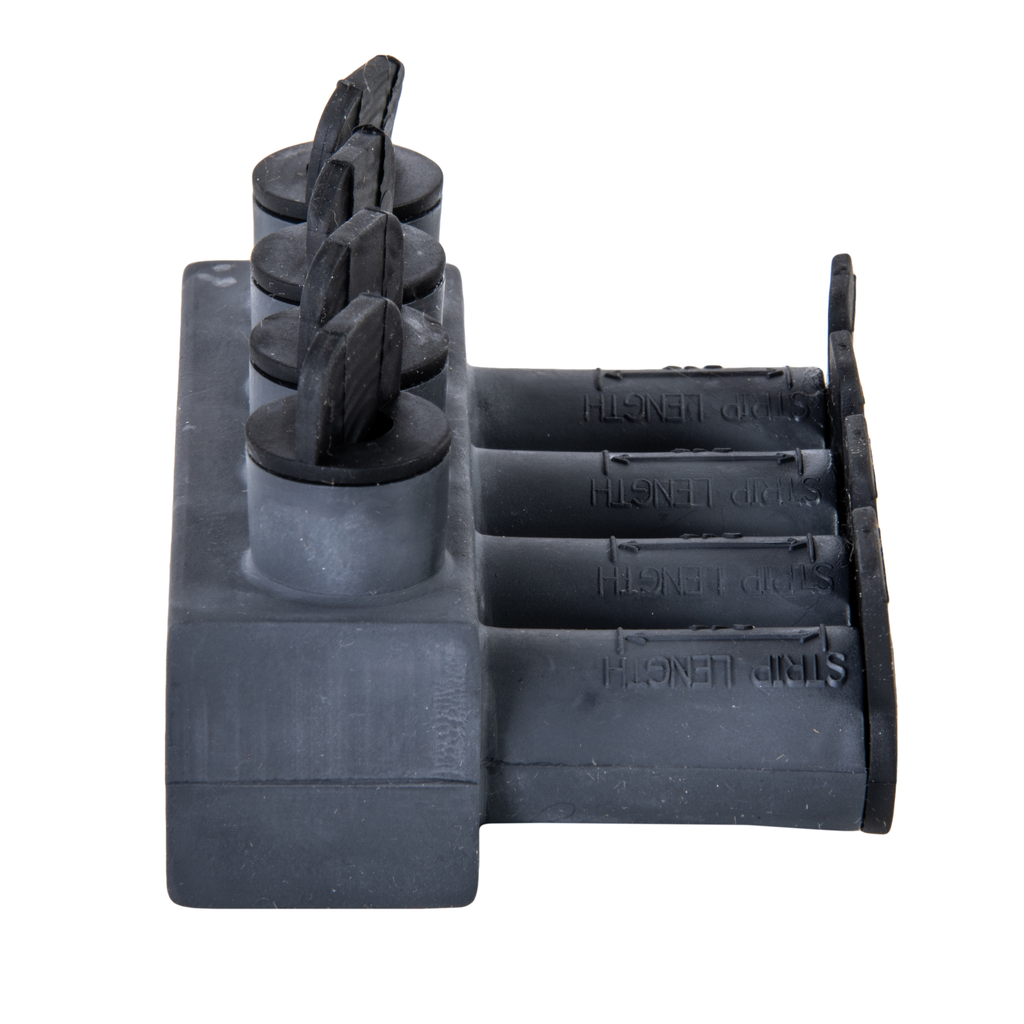

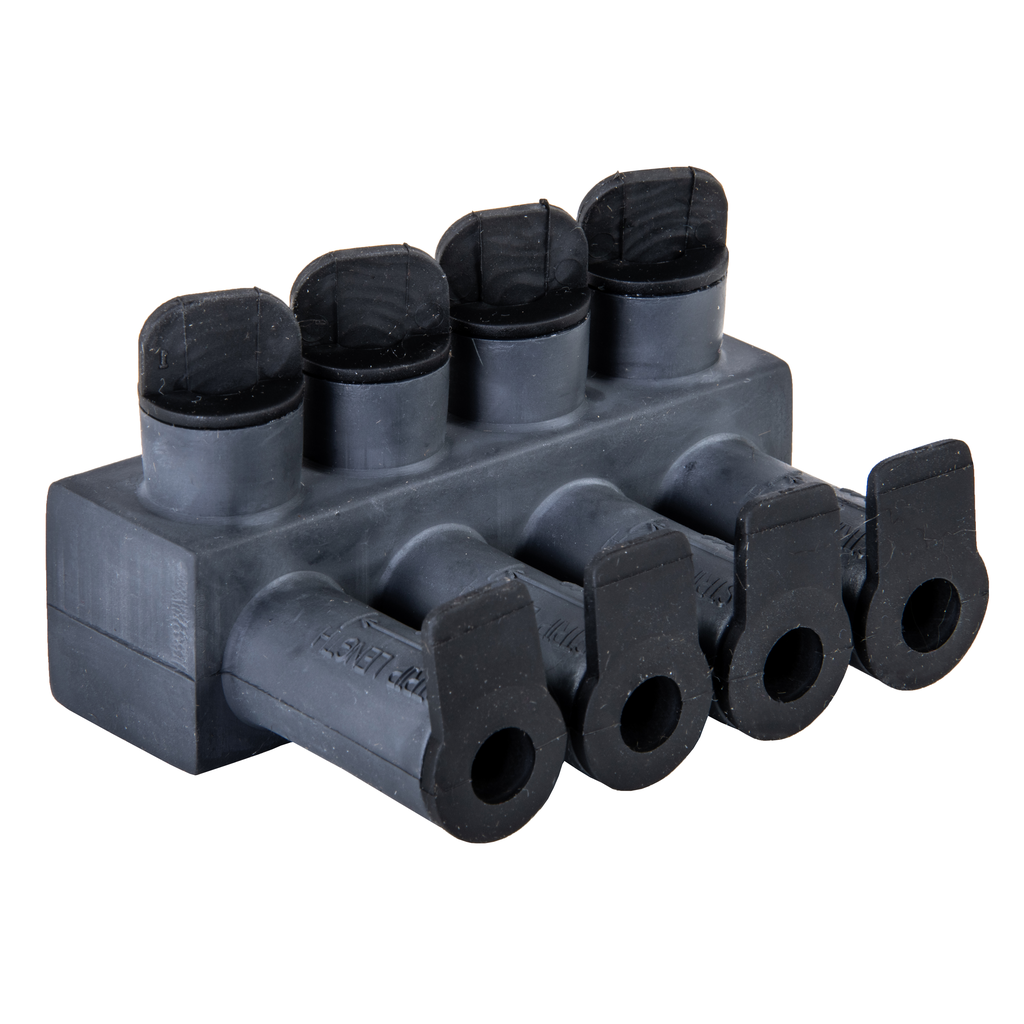

The Polaris ISPB2/0-4B Multi-Tap Direct Burial Single-Sided Entry Connector features 3 ports sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each single-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Rated for temporary submersion, wet or damp locations and direct burial applications. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL 486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.

Technical Information

Applications
Wire Termination
Conductor Size
14-2/0 AWG
Material
Aluminum
Number of Conductors
4
Number of Poles
1 Pole
Size
L=3.65 - W=2.65 - H=2.10 IN
Temperature Rating
90 C
Type
Submersible Pedestal Connectors
Voltage
600 Volt
Wire Size
14-00 AWG
Wire Type
Class B & C

Manufacturer Information

Brand
Polaris
Sub Brand
Polaris EDGE

General Product Info

12-Digit UPC
662381800640
Color
Black
Environmental Conditions
90 C
Finish
EPDM Rubber Insulated
GTiN
00662381800640
Product UPC
66238180064
Weight
2.7 lb

Dimensions

Height
2.2 Inch
Warranty Length
1 yr

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Certifications and Standards
  • cULus
  • UL 486D
Additional Notes
  • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
