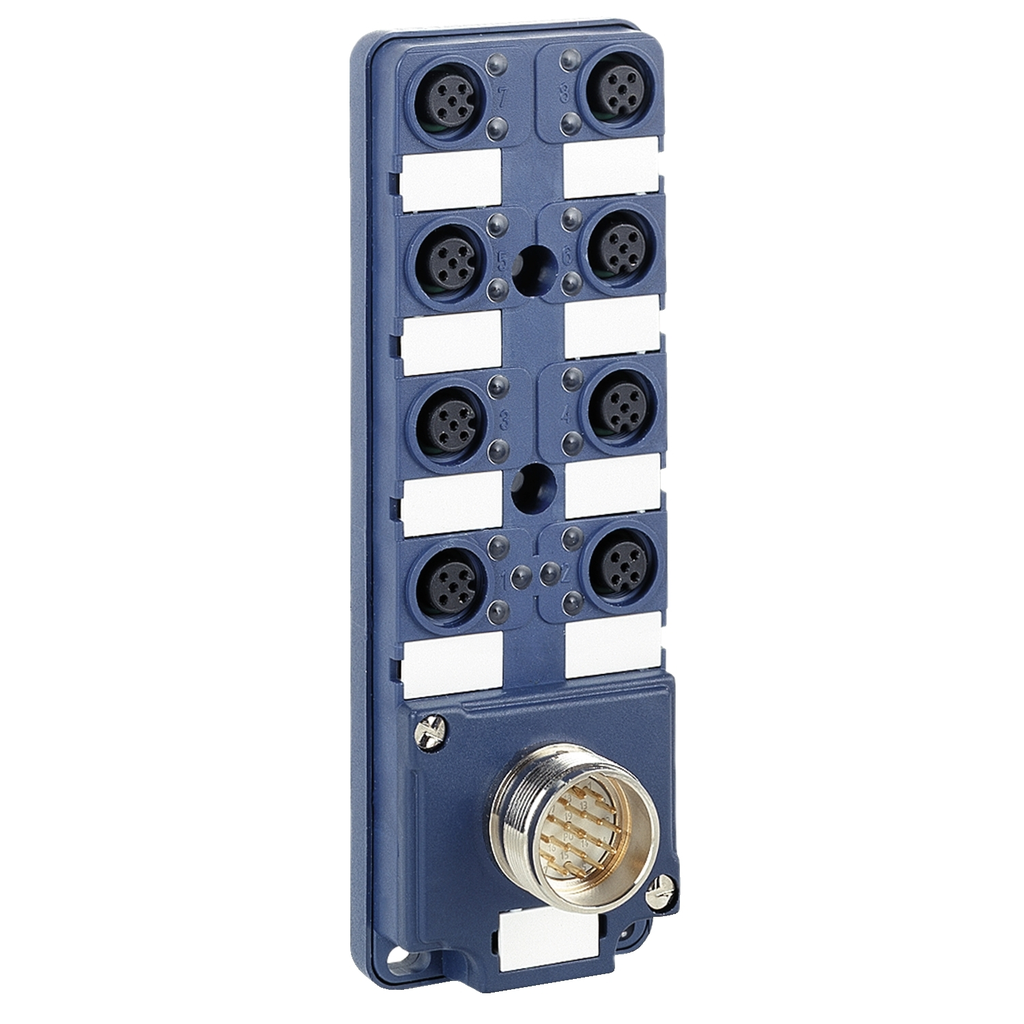

Product image for SQUARED ABE9C1281L05 IP67 passive s
Email

SQUARED ABE9C1281L05 IP67 passive s

Manufacturer: Square-D / Schneider | Catalog # ABE9C1281L05 | Cooper Electric Part # 1867742
$168.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This product is part of the Advantys ABE9 range, an offer of IP67 passive splitters boxes. This passive splitter box for M12 connectors make it possible to eliminate long and difficult cabling operations. It provides 8 channels and 16 ways. It is furnished with 5-pin female M12 connectors and 5m pre-wired cable connector for electrical connection. It is a splitter box with an operational voltage of 24V DC and a current per channel of 4A. A single yellow LED is equipped for channel status and dual green LED's for power ON. It is an IP67 rated product. It weighs 1.61kg. The splitter box is suitable for packaging, bottling, assembly and conveying applications. This product is certified by CULus. Its modularity and dimensions mean they are the ideal solution for a wide variety of customer applications.

Technical Information

Applications
For Use With Milwaukee M18 Cordless Tools
Enclosure
IP66, IP67, IP68
Net Weight
1.61 kg
Number of Channels
8
Power Supply
24 VDC
Standard
CSA C22.2 No. 85,UL E23018,cULus
Storage Temperature
-40-85 degrees C
Temperature Rating
-20 to 80 degrees C
Type
Coaxial Media IP67 Tap

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ADVANTYS

General Product Info

12-Digit UPC
785901623625
GTiN
03389110404616
Product UPC
78590162362
Weight
1.61 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CULus
Country of Origin
Germany
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
