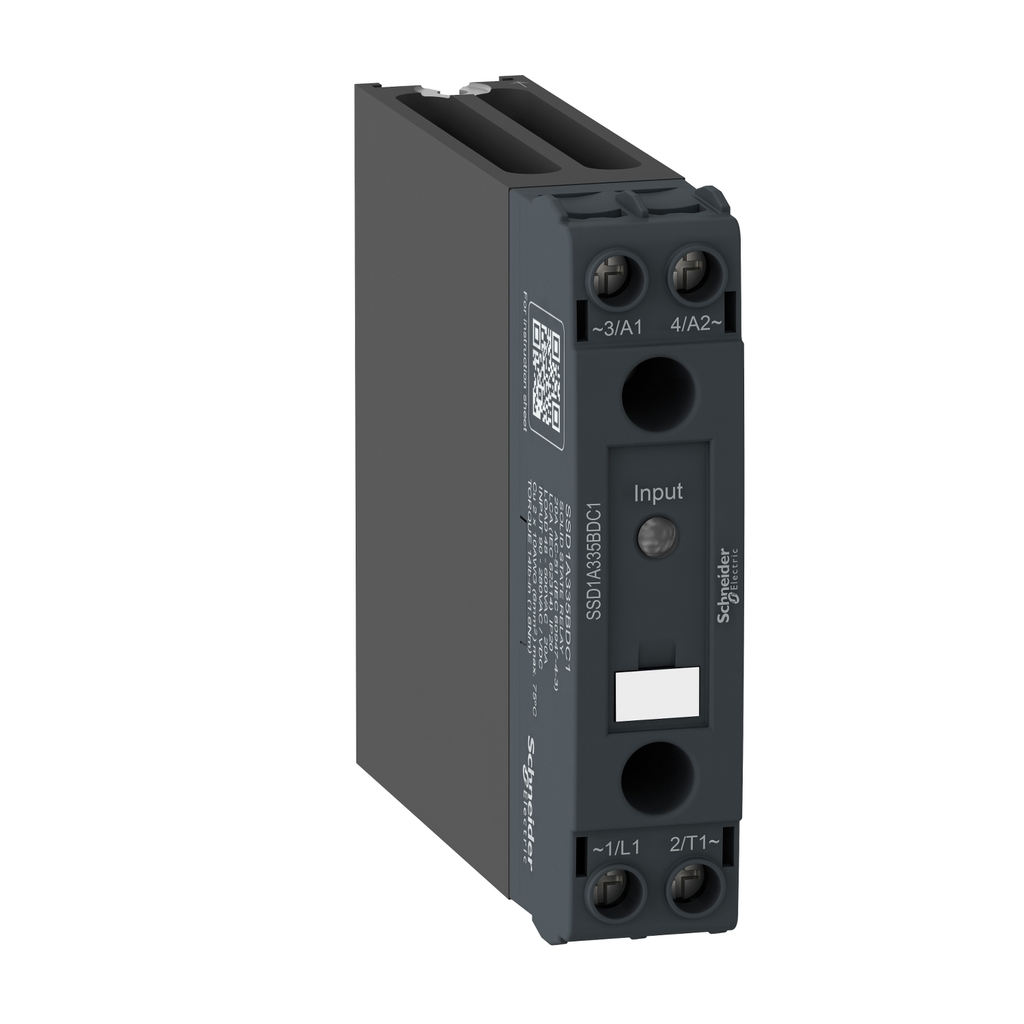

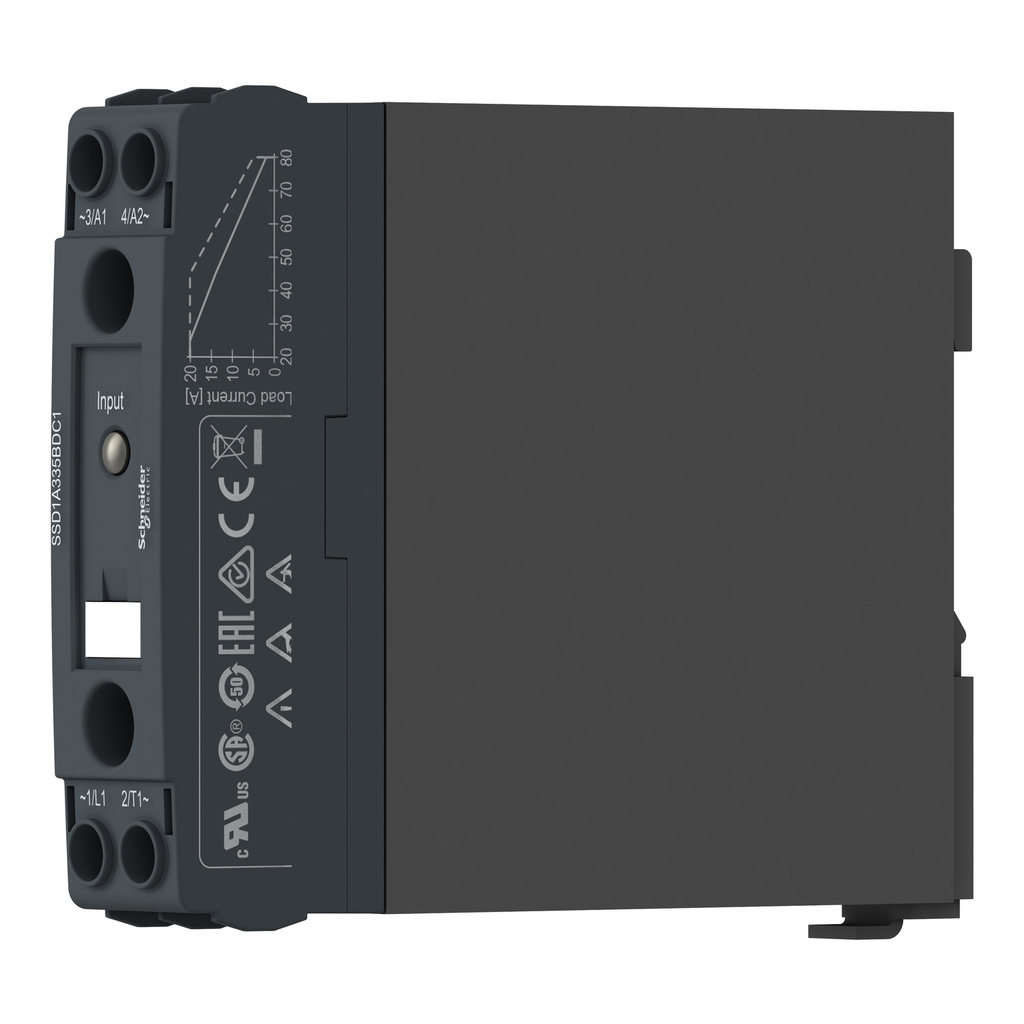

SQUARED SSD1A335M7C1 DIN rail mount

Manufacturer: Square-D / Schneider | Catalog # SSD1A335M7C1 | Cooper Electric Part # 1867659
$96.45 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00PM ET
5 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 35A power rated relay with relay type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.298Kg and its dimensions are, 22.5mm wide, 116.6mm deep, 93.2mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.

Technical Information

Dielectric Strength
4 kV
Line Rated Current
35 A
Net Weight
0.298 kg
Number of Channels
1
Number of Phases
1 Phase
Output Voltage
48-600 V
Standard
CSA C22.2 No 14-13,IEC 60947-4-3,IEC 60950-1,IEC 61373:class B: Category 1,IEC 62314,UL 508
Storage Temperature
-40-100 degrees C

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSD1

General Product Info

12-Digit UPC
606489807958
GTiN
03606489807955
Product UPC
60648980795
Weight
0.298 kg

Dimensions

Depth
116.5 mm
Height
3.67 in
Width
0.89 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features
  • Silent and reliable due to the absence of moving contacts
  • IP67 and resistant to shocks, vibration and pollution: ideal for harsh industrial environments
  • Unlimited electrical endurance: reduce your maintenance and downtime costs
  • Wide control voltage for improved process stability even in the case of fluctuation control power supply voltage
  • Plug-in base allows for a quick replacement
  • One reference for pre-assembled socket and relay hence simplifying customer selection process
  • Save the time in assembling the relay and socket and subsequently to save the labour cost for customers
  • Elminates the risk of PCB pins bending during assembly
Accessory Products
  • SSDZLB
  • SSDZLN1
  • SSDZLN2
Related Products
  • SSD1A335M7C3
