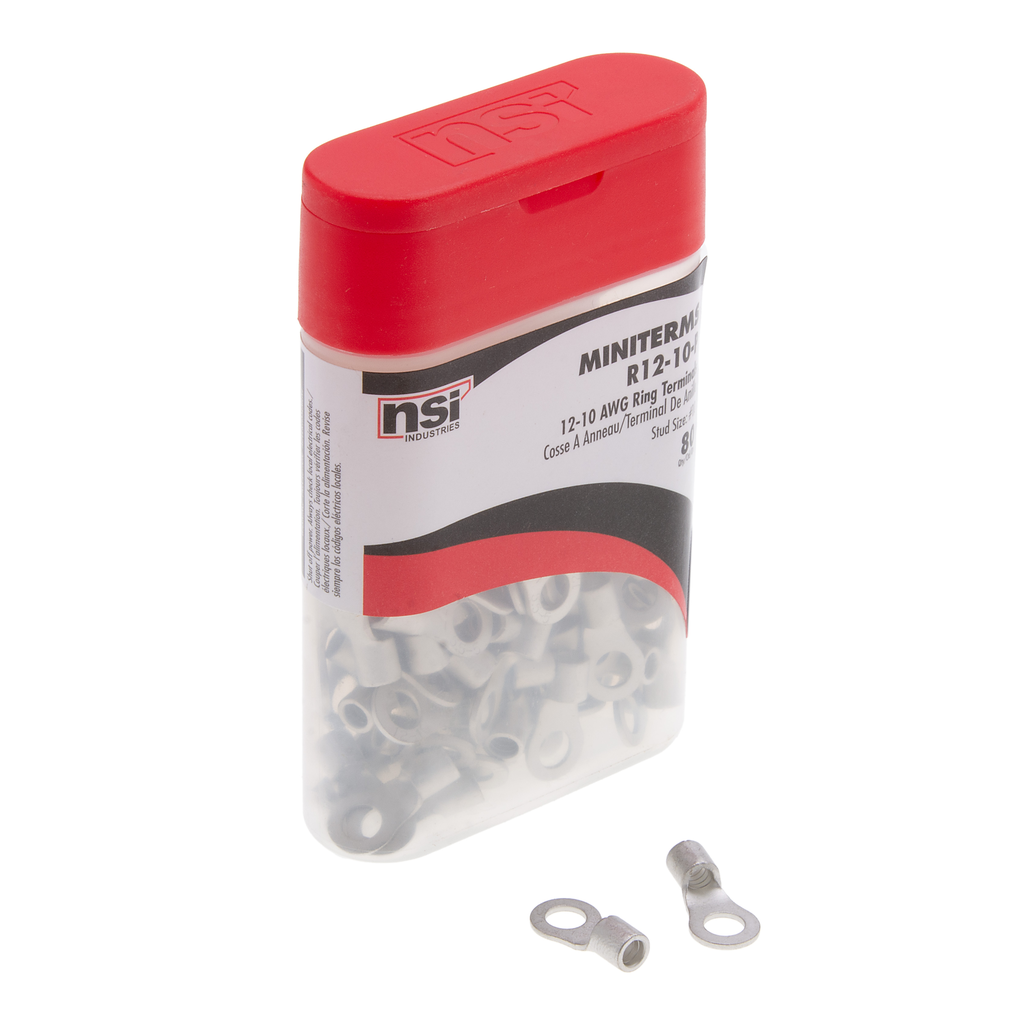

NSI R12-10-P 12-10 Bare Ring #10 St

Manufacturer: NSi | Catalog # R12-10-P | Cooper Electric Part # 1867466
$51.68/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

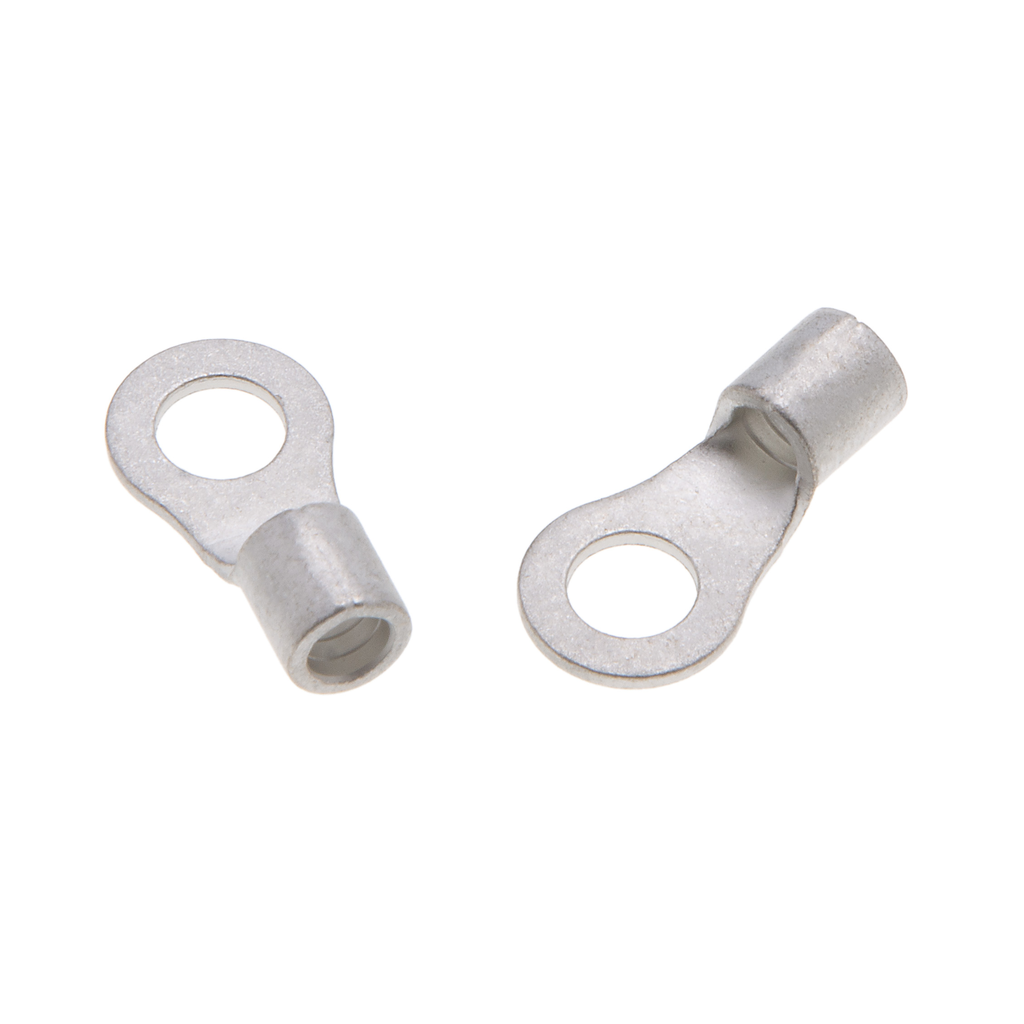

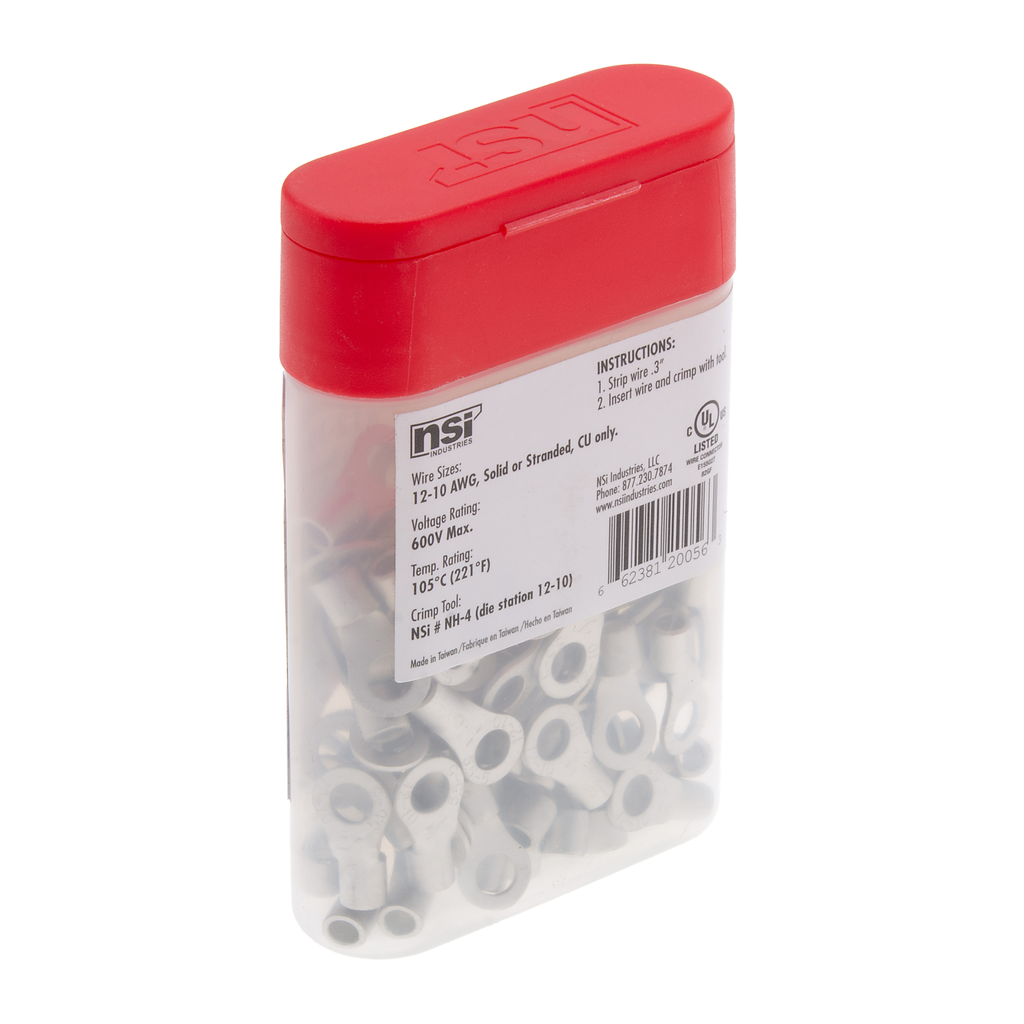

12-10 AWG Uninsulated Ring Terminal #10 Stud Uninsulated ring terminals are basic tongue type terminals. Safe and reliable connections because it cannot be disconnected unless the screw is completely removed. Uninsulated ring terminals are made of electro tin-plated copper with brazed seam. 600V, 105 degrees C. FEATURES: STYLE: Uninsulated MATERIAL: Tin-plated copper QUANTITY: 80 Count WIRE SIZE: 12-10 AWG STUD SIZE: 10 LENGTH: 0.74 WIDTH: 0.372

Technical Information

Applications
Wire Termination
Conductor Size
12-10 AWG
Material
Copper
Number of Terminations
1
Standard
CULUS
Terminal Size
#10
Type
Non-Insulated Ring Terminal
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Miniterms

General Product Info

12-Digit UPC
662381200563
Color
Tin Plated Copper
Environmental Conditions
105 C
GTiN
00662381200563
Product UPC
66238120056

Dimensions

Height
5.6 Inch
Length
19 Inch
Warranty Length
1 yr
Width
9.5 in

Certifications and Compliance

Country of Origin
Taiwan
Certifications and Standards
  • RoHS
