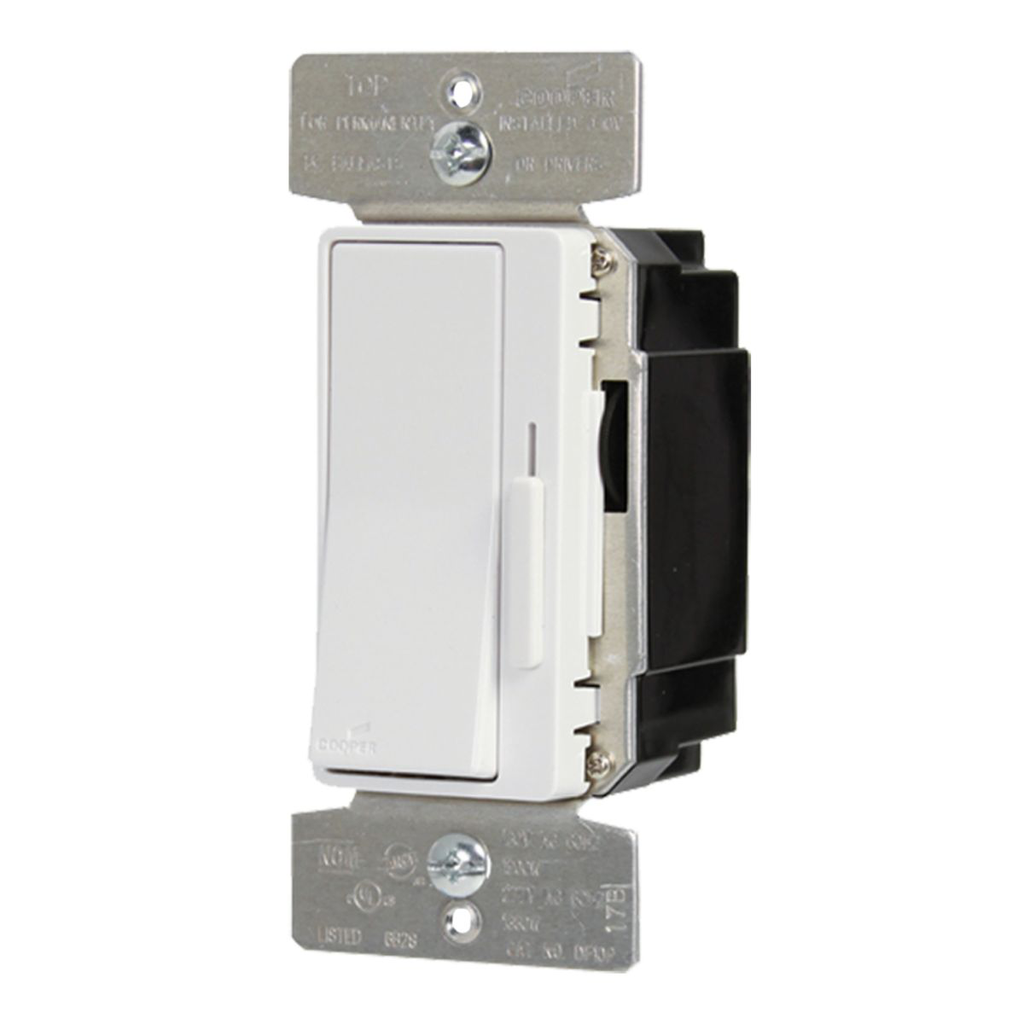

Product image for Metalux WBSD-DEC-C5 Decorator Wallswitch Slide Dimmer, Multiload, Black, Gray, White

Email

Metalux WBSD-DEC-C5 Decorator Wallswitch Slide Dimmer, Multiload, Black, Gray, White

Manufacturer: Cooper Lighting | Catalog # WBSD-DEC-C5 | Cooper Electric Part # 1867452

$45.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
The Multi-load Decorator Dimmer provides full-range classic linear-slide dimming for 300W dimmable LED and CFL as well as 600W Incandescent, Halogen, Dimmable Fluorescent, Electronic Low Voltage & Magnetic Low Voltage light sources. Preset units feature a preset .ON/OFF. switch that automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both Single-Pole (one location) and 3-Way (multi-location) applications, and features an adjustable Rapid-Start setting which provides additional power for a brief time period to ensure lamp start-up at low dim settings. Compatible with any decorator wallplate. Compatible with most dimmable LED and CFL lamps. Adjustable rapid start feature ensures lamp start-up even at low dim levels.

Technical Information

Applications
Lighting
Mounting Type
Wall Switch
Size
3.25 IN Length 2.8 IN Width 4.9 IN Height
Type
Wall Switch No Sensor - 120/277V
Voltage
120 Volt
Wattage
N/A Watt

Manufacturer Information

Brand
Cooper Lighting Solutions
Sub Brand
WBSD-DEC - Decorator Wallswitch Dimmer 120V

General Product Info

12-Digit UPC
080083735426
GTiN
00080083735426
Product UPC
08008373542
Weight
0.3 lb

Dimensions

Height
4.9 Inch
Length
3-1/4 Inch
Width
2.8 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
USA
Features
  • 3.25 IN Length 2.8 IN Width 4.9 IN Height
  • Allows user to return to previous light level when turning lights ON
  • Integrated full-slide control for easy, precise operation
  • Can wire as Single-Pole or 3-Way, Electrostatic discharge protection
  • Device can be wired into either 3-Way location, load side or line side
  • Neutral is not required for installation of device
  • Adjustable low-level trim setting for optimal lamp compatibility
  • Face plate is removable to allow for color changes
  • Each package includes 3 colors
  • Radio Frequency Interface filtering is standard on all models
