NSI IPLD750-8C 750-250 MCM NonUL In

Manufacturer: NSi | Catalog # IPLD750-8C | Cooper Electric Part # 1863879
$299.93/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet

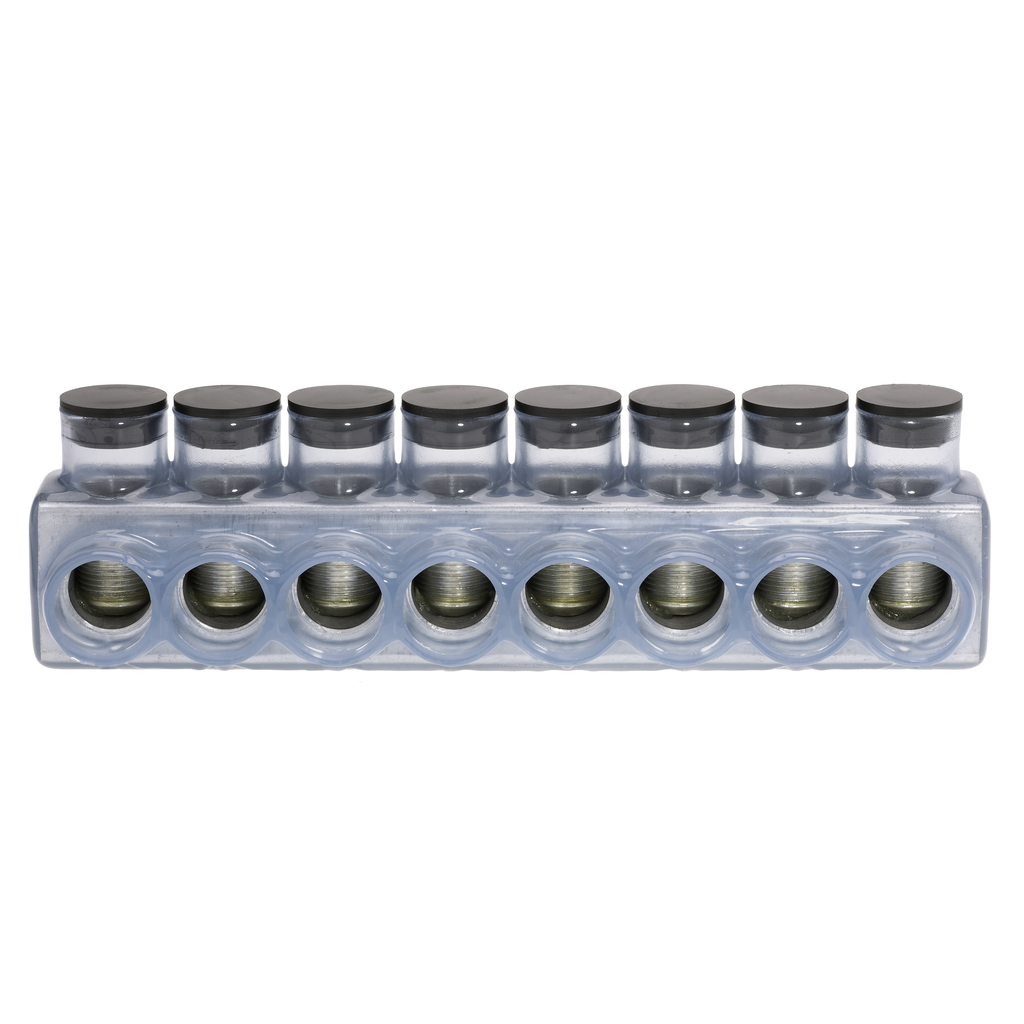

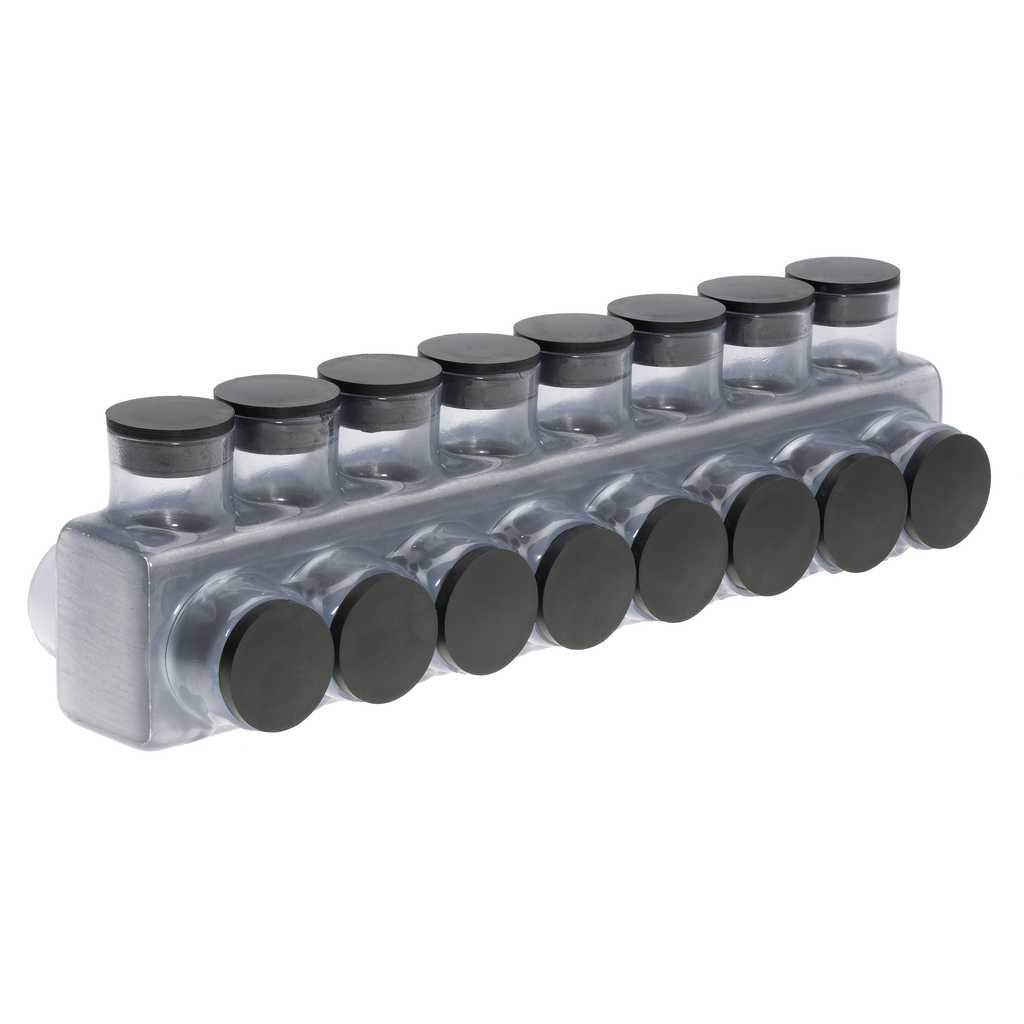

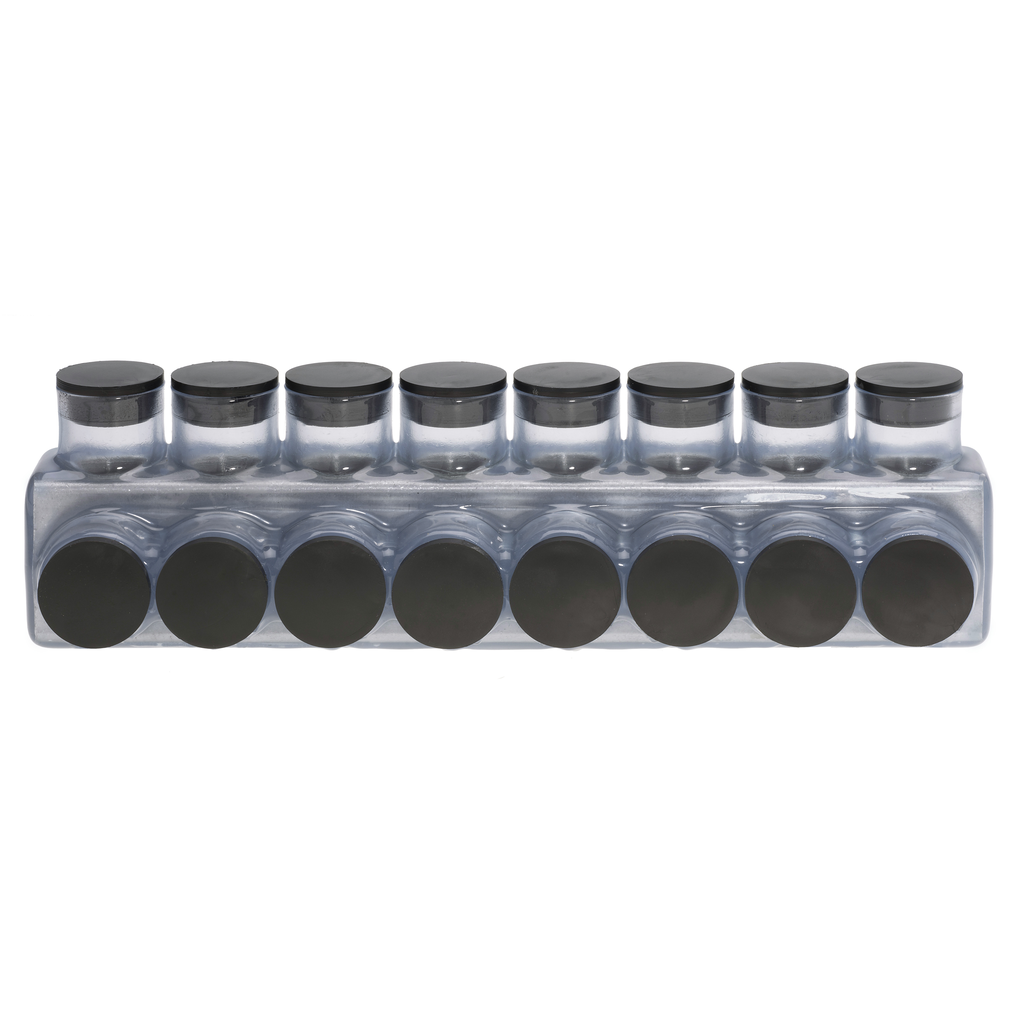

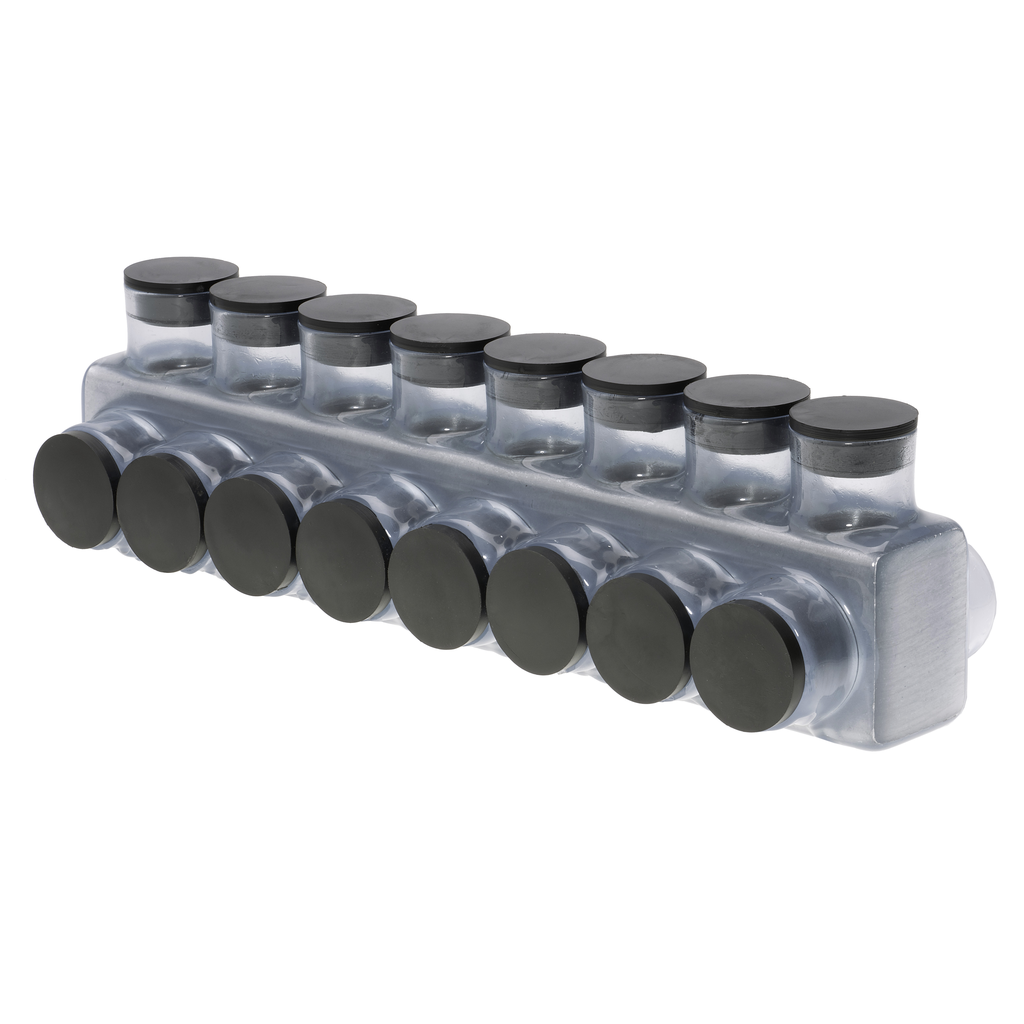

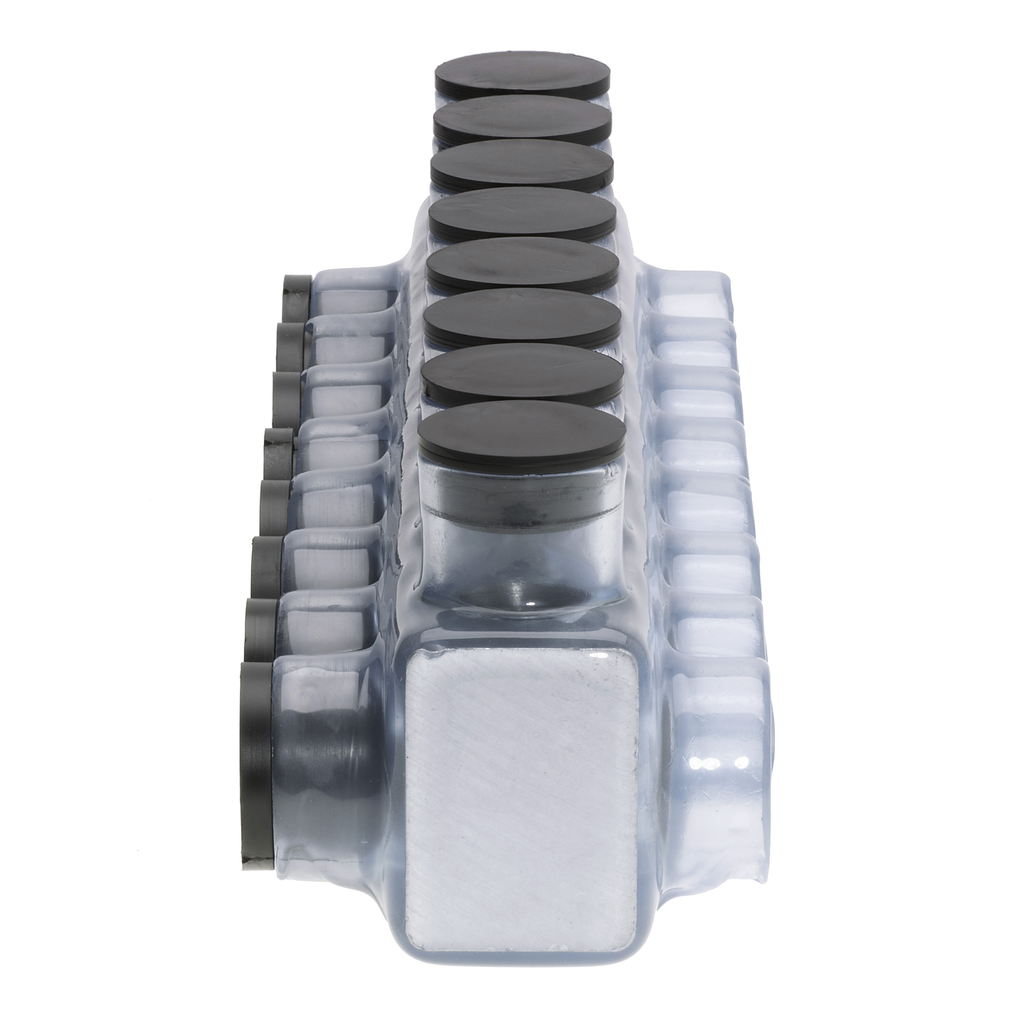

The Polaris IPLD750-8C Multi-Tap Dual-Sided Entry Vision Tap Connector features 8 ports sized for 750 - 250 MCM wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Technical Information

Amperage
385 Amp
Applications
Splice,Tap
Conductor Type
Aluminum,Copper
Material
Aluminum
Number of Conductors
8
Torque
550 lb-in
Voltage
600 Volt

Manufacturer Information

Brand
Polaris

General Product Info

12-Digit UPC
662381996930
Color
Clear
Finish
Plastisol Insulated
GTiN
00662381996930
Product UPC
66238199693

Dimensions

Height
3.6 Inch
Length
11.95 Inch
Warranty Length
1 yr
Width
3.85 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Certifications and Standards
  • cULus
  • UL 486A/B
Features
  • Clear Exterior - Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • Dual-Sided Wire Entry - Form secure connections between 8 conductors quickly using the double-side entry ports sized for wires between 750 and 250 MCM
  • Ergonomic Design - Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs - Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor - All 8 dual-sided entry (DSE) ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables Amperage based on a single main at 75C
