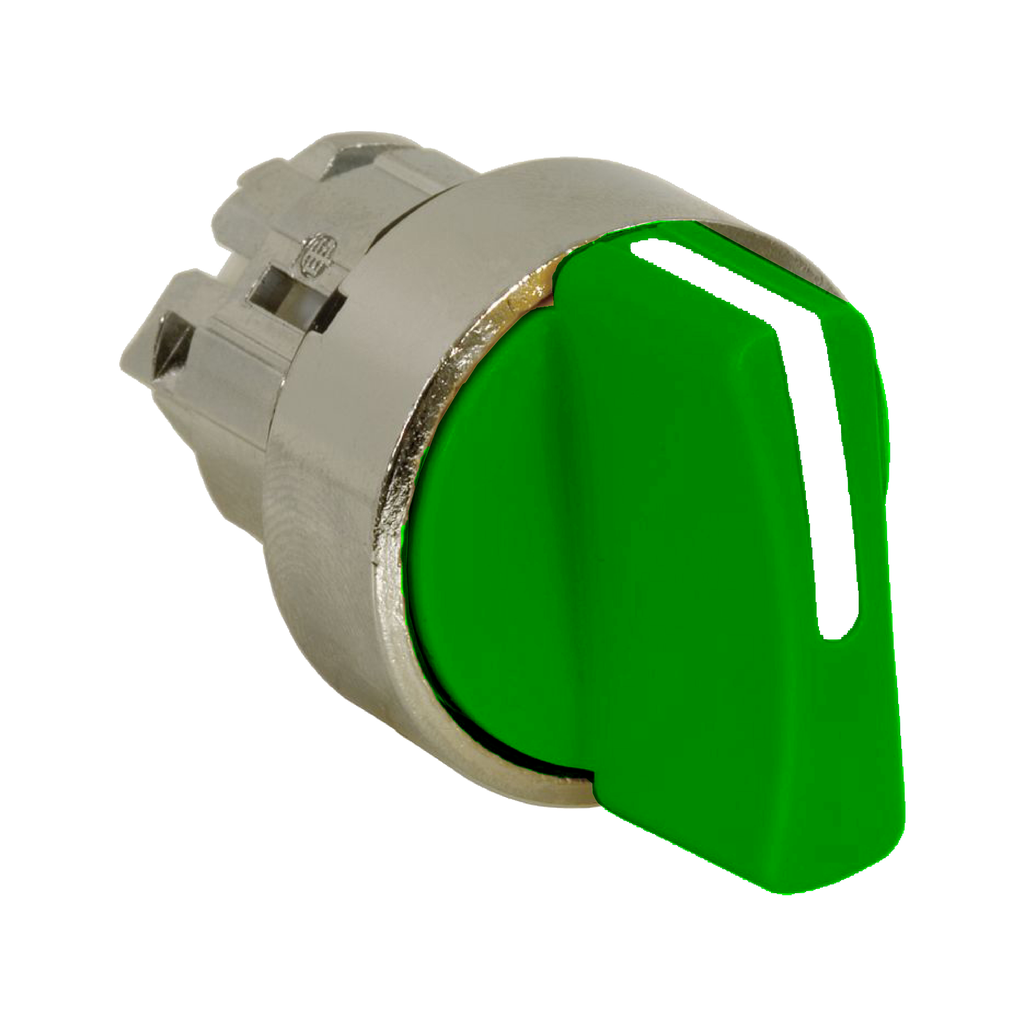

Product image for SQUARED ZB4BD503 Head for selector

Email

SQUARED ZB4BD503 Head for selector

Manufacturer: Square-D / Schneider | Catalog # ZB4BD503 | Cooper Electric Part # 1862959

$32.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony XB4, green selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical Information

Action
Spring Return From Right
Actuator
3 Position
Applications
For 30mm Push Button Selector Switch
Bezel Material
Chromium Plated Metal
Enclosure
NEMA 1
Head Type
Standard
Indicator
Green
Net Weight
0.04 kg
Operating Temperature
-40 to 70 degrees C
Size
0.87 in
Standard
CSA Standard C22.2 No. 62,E253830,E253833,E253976,UL Standard UL 5
Storage Temperature
-40-70 degrees C
Type
Milled Slot

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB4

General Product Info

12-Digit UPC
785901083221
GTiN
03389110801545
Product UPC
78590108322

Dimensions

Height
29 mm
Warranty Length
18 mth
Width
29 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
