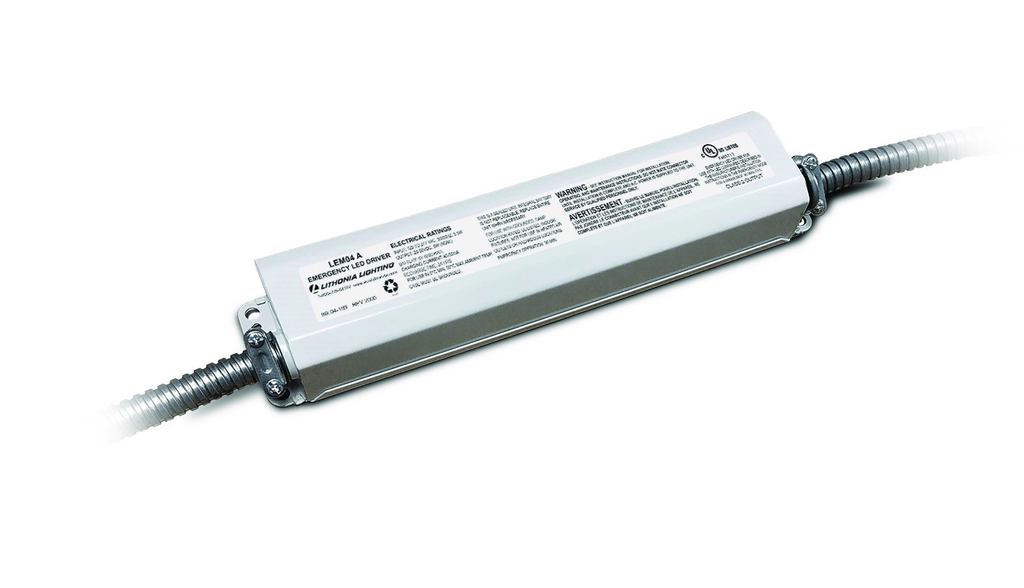

LITH LEM04 A M6 Emergency LED Drive

Manufacturer: Juno Lighting | Catalog # LEM04 A M6 | Cooper Electric Part # 1852306

$98.50/ea

Compare

Out of stock, please contact your sales representative for availability, pricing and lead times

4W Emergency LED Driver, Dual Flexible Metal Conduit

Mounting Type

Fixture Attached,Remote Mount,Unit To J Box

Brand

Lithonia Lighting

12-Digit UPC

194994620730

Environment

Indoor

GTiN

00194994620730

Product UPC

19499462073

Country of Origin

China,China

Features

The LEM04 emergency LED driver enables the lighting fixture to deliver a minimum of 90 minutes illumination during a loss of normal AC power. It is UL Listed for factory or field installation with indoor, damp location luminaires utilizing 20-50VDC output voltage. When normal AC power fails, the LEM04 immediately drives the LED load at reduced light output for a minimum of 90 minutes. When AC power is present, the emergency LED driver ensures the sealed, maintenance-free, high-temperature nickel-cadmium batteries are fully charged within 24 hours after a discharge and remains fully charged until the next loss of AC power. The included test switch/pilot light provides visual and manual means of monitoring the system operation.
Multi-volt capability 120V thru 277V; 50/60hz Output Voltage 20-50 VDC Initial Output Power 4 watts Maximum AC input 65mA
UL Listed. Meets UL 924, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards. UL 1310 Certified, Output Class 2 Compliant UL Listed for installation in damp location, recessed type IC fixtures. Ambient temp rating 0°C to 50°C (32°F to 122°F)
Features dual metal conduit for mounting outside the wireway. One 1/2 hole in fixture channel permits mounting test switch/pilot light behind fixture lens. Enclosure Length: 11.0 Width: 2.38 Height: 1.55 Conduit length: 24\" ea. Shipping weight: 2.5 lbs (1.13 kg)
Sealed nickel-cadmium battery
