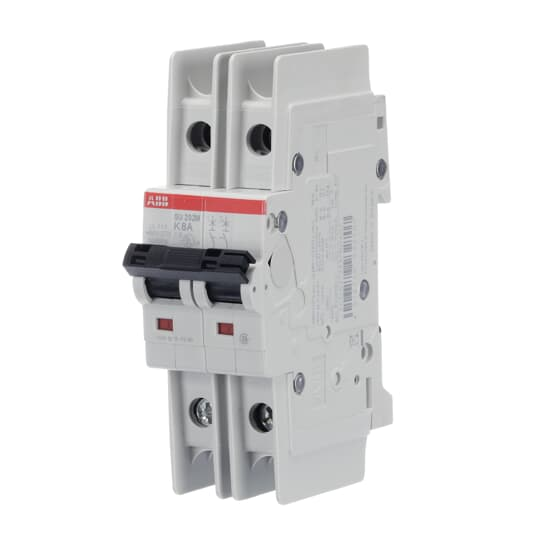

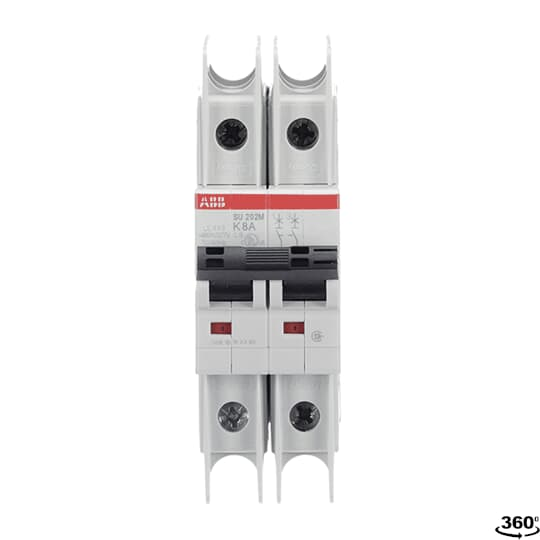

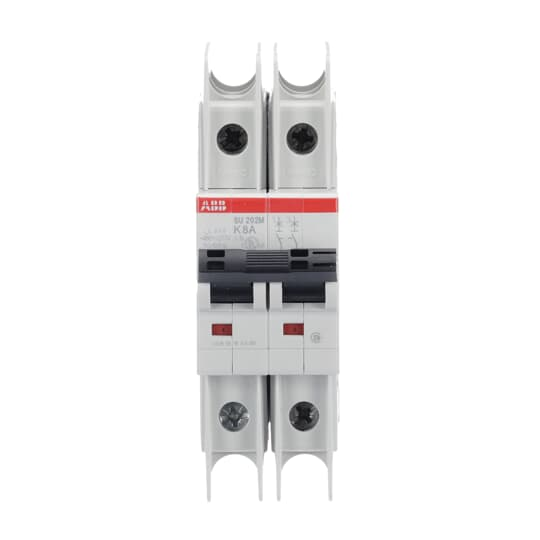

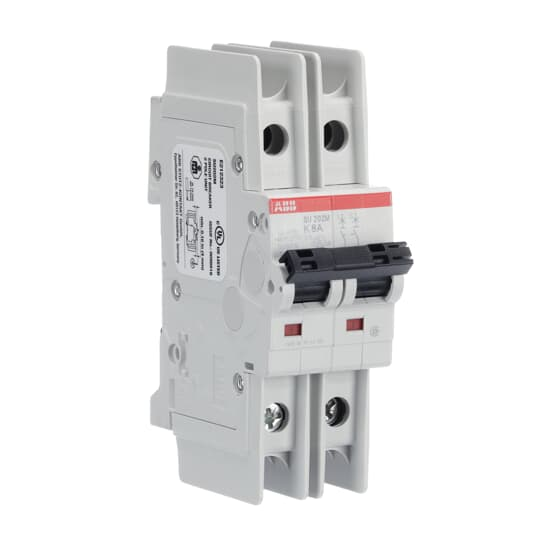

ABB SU202M-K8 UL489 MCB 2P K 8A 480

Manufacturer: ABB Low Voltage | Catalog # SU202M-K8 | Cooper Electric Part # 1852248
$404.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet CAD Drawing #1 Product Brochure
Miniature Circuit Breaker, Rated Current 8 Amps, 2 Pole, Interrupt Rating 10 kA, Trip Curve K, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
8 Amp
Applications
Branch Circuit Protection
Conductor Size
18-4 AWG/18-8 AWG
Current
8 Amp
Interrupt Rating
10 kAIC
Mounting Type
35 mm DIN Rail
Number of Poles
2 Pole
Operating Temperature
55 degrees C
Power Rating
1.5 W
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Temperature Rating
-25 to 55 degrees C
Terminal Type
Screw Terminals
Trip Type
K-Curve
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614423367
Environmental Conditions
25 C at 95 - 100% Relative Humidity, 55 C at 90 - 96% Relative Humidity, 3 Pollution Degree
GTiN
04016779932707

Dimensions

Height
111 mm
Length
69 mm
Width
35 mm
