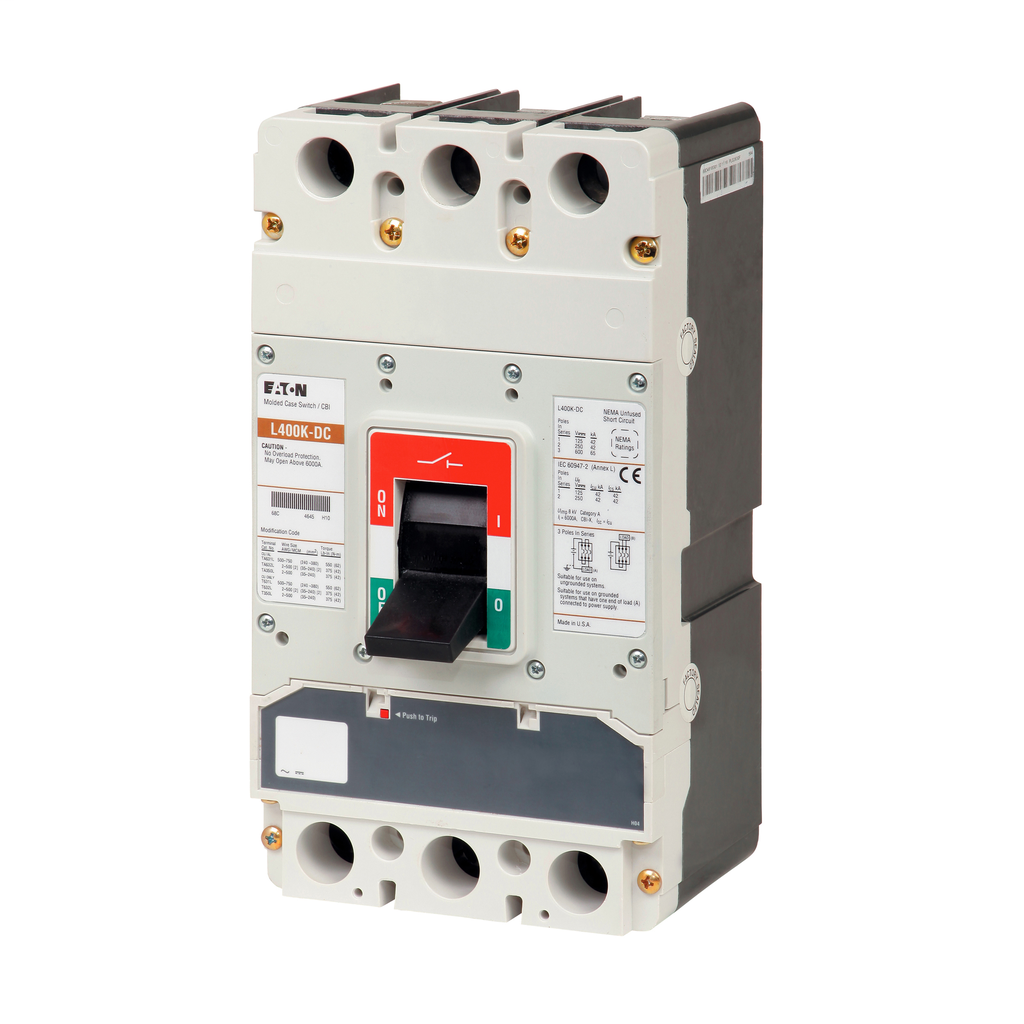

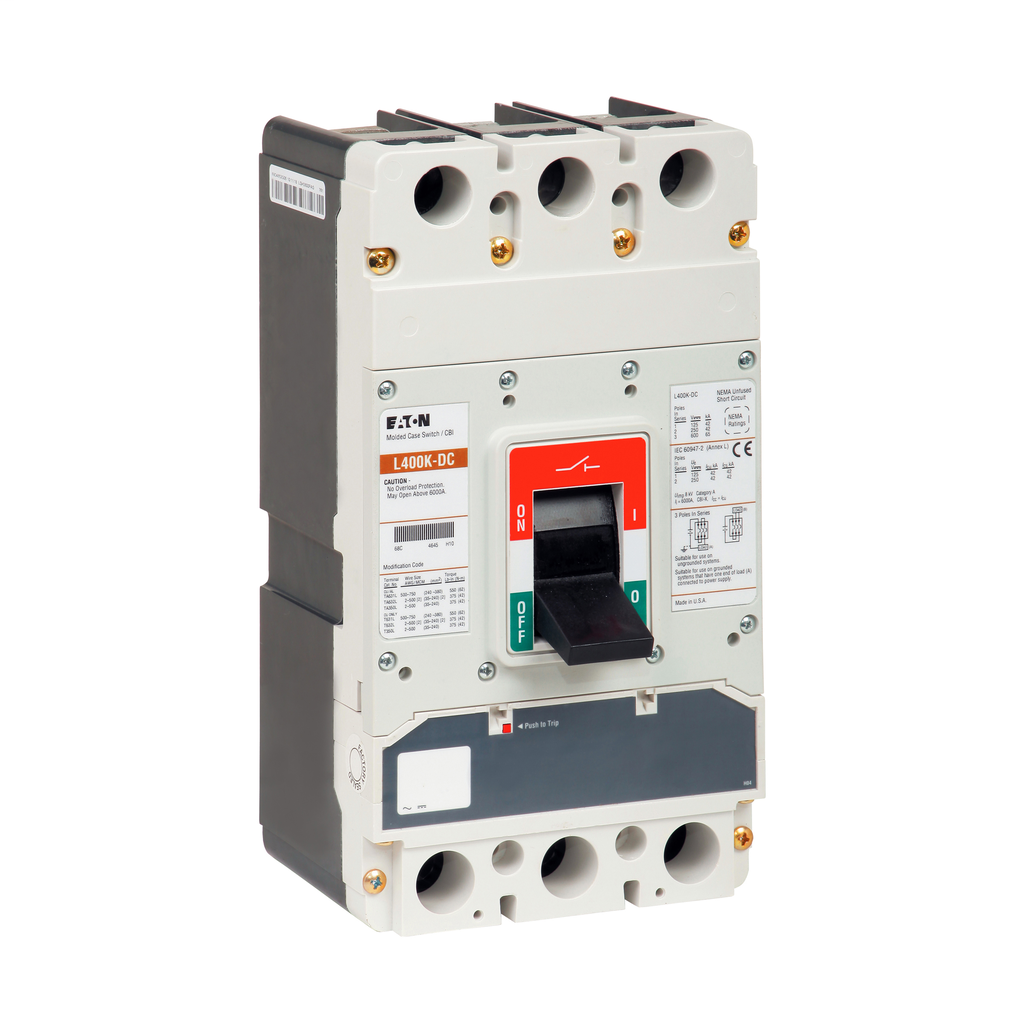

Product image for Cutler-Hammer LGEDC3630NN Series G DC/PvGard molded case circuit breaker frame, LG-frame, LG, Fixed thermal, fixed magnetic trip, Three-pole, 630A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Cutler-Hammer LGEDC3630NN Series G DC/PvGard molded case circuit breaker frame, LG-frame, LG, Fixed thermal, fixed magnetic trip, Three-pole, 630A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kA

Manufacturer: Cutler-Hammer / Eaton | Catalog # LGEDC3630NN | Cooper Electric Part # 1847481
$15,854.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Eaton Series G DC/PvGard molded case circuit breaker frame, LG-frame, LG, Fixed thermal, fixed magnetic trip, Three-pole, 630A, 600 Vac, 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Without terminals, Vdc

Technical Information

Amperage
630 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Circuit Breaker Type
LG
Current
630 Amp
Frame
LG
Interrupt Rating
18 kAIC
Number of Poles
3 Pole
Terminal Type
Without Terminals
Trip Type
Fixed Magnetic,Fixed Thermal
Type
Frame Only
Voltage
600 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685479446
Class
Vdc
GTiN
00786685479446
Product UPC
78668547944
Weight
11.9 lb

Dimensions

Height
5.48 Inch
Length
5.48 Inch
Width
5.48 in
