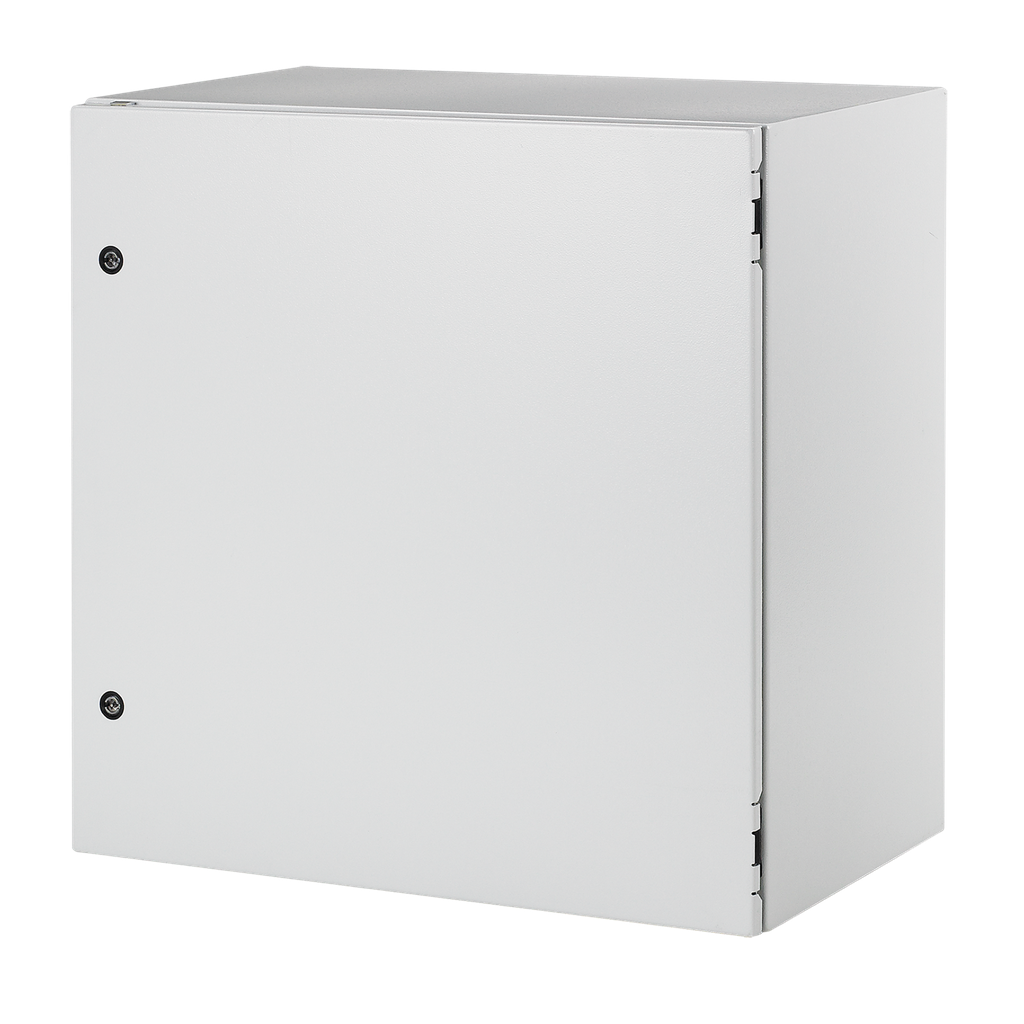

Product image for NVENT HOF M600600350G WALL-MT IP66
Email

NVENT HOF M600600350G WALL-MT IP66

Manufacturer: Hoffman | Catalog # M600600350G | Cooper Electric Part # 1846728
$405.52/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Metric dimensions and aesthetic styling come together with the Two Door GL66 enclosure. This Medium GL66 Series Wall-Mount Enclosures, M600600350G item measures 600x600x350mm with a material of Steel colored Lt Gray.

Technical Information

Color Coding
RAL 7035
Material
Steel

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510237516
Color
Lt Gray
Finish
Powder Coated
GTiN
00783510237516
Product UPC
78351023751
Weight
60.3 lb

Dimensions

Depth
13.78 Inch
Height
15.1 Inch
Length
28.6 Inch
Width
23.62 in
Features
  • Dimensions in millimeters
  • 16 gauge steel
  • Quarter-turn latches furnished with 3mm double-bit insert
  • Pre-cut gland plate opening(s) for cable entry in enclosure bottom
  • External formed 90 degree body flange
  • Three-point latching on enclosures 1000-mm high and taller
  • Door alignment device on doors with three-point latching on enclosures 800 mm or wider
  • Door opens 210 degrees
  • Right-hand hinged door with sealed hinges and hinge brackets
  • Simple, easy-to-remove and install hinge pins
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Seamless foam-in-place gasket
  • Grounding stud on the body
  • Bonding provision on the door
  • Full-size galvanized steel back panel included
  • Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
