RAB T8-13-U6G-835-SD-HYB T8 U6 2FT

Manufacturer: Rab Electric Mfg | Catalog # T8-13-U6G-835-SD-HYB | Cooper Electric Part # 1846689
$28.43/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Linear Tubes 1950 Lumens T8 13W Single/Double Ended Hybrid Installation Type

Technical Information

Base Type
2G13
Beam Angle
160 degrees
Bulb Shape
T8 UBEND
Color Accuracy
80
Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3,500 K
Efficacy
150 LPW
Input Voltage
120 V
Input Wattage
13
Lens Coating
Frosted
Lumens
1,950 Lumen
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Type
Linear
Voltage
Type B-120/277 / Type A-dependant on the ballast Volt
Wattage
13

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813601670
Finish
White
GTiN
00019813601670
Product UPC
01981360167
Weight
0.5 lb

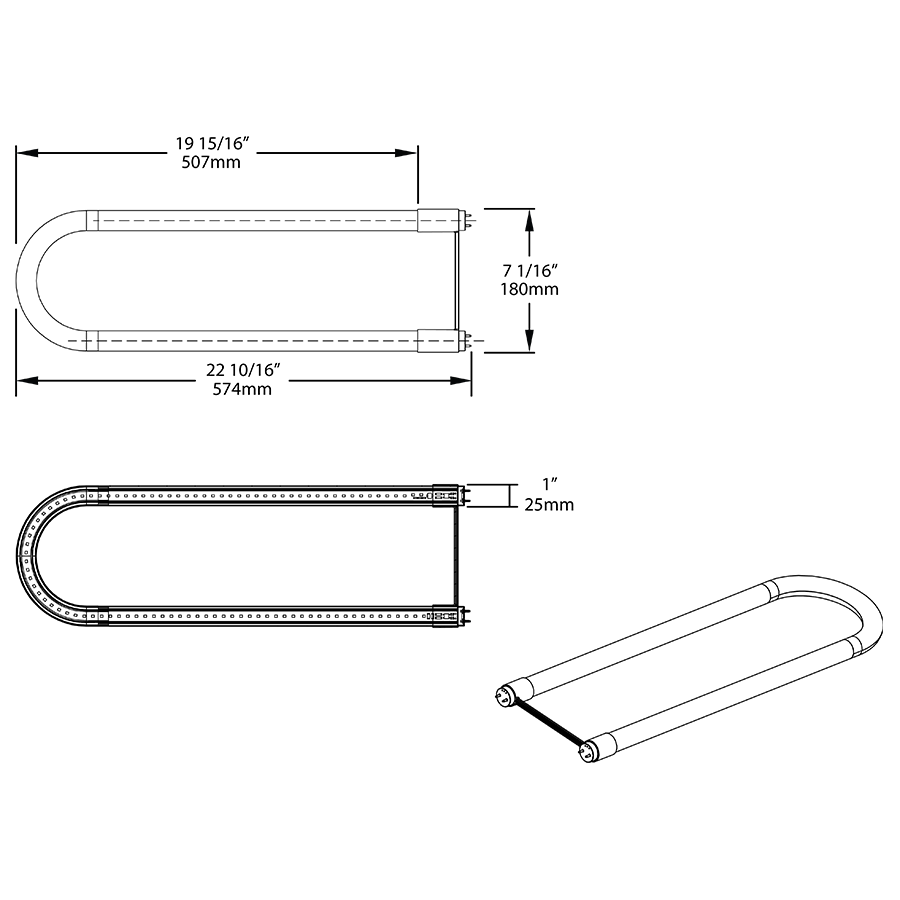

Dimensions

Length
2 Foot
Features
  • Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
  • TYPE A - Plug and play compatible with most common commercial instant start T8 electronic ballasts
  • TYPE B - can be wired directly to line voltage 120-277V. Single ended and double ended wiring method.
  • Works with both shunted and non-shunted sockets
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Type A: Compatible with RAB specified 0-10V dimming system; Type B: Phase cut
  • Equivalency
  • Technology EQ
  • Warranty
