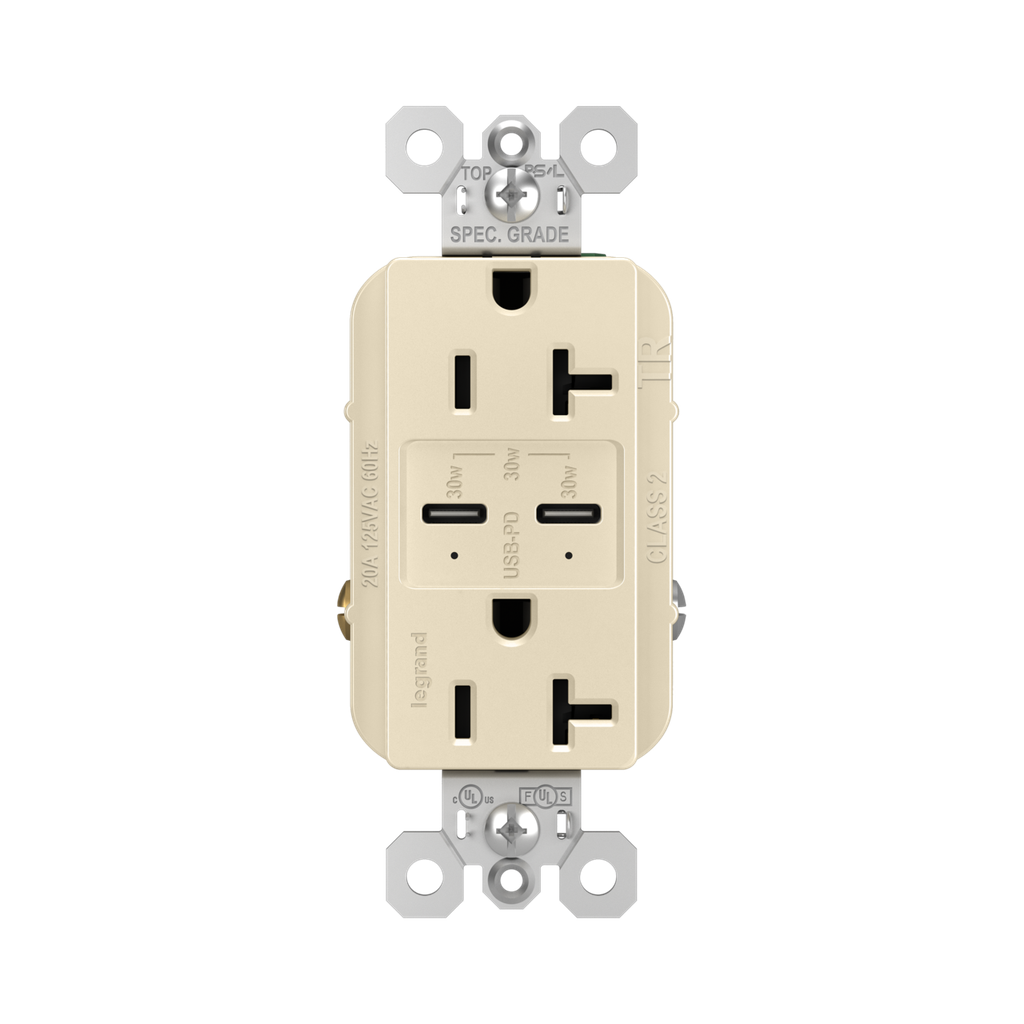

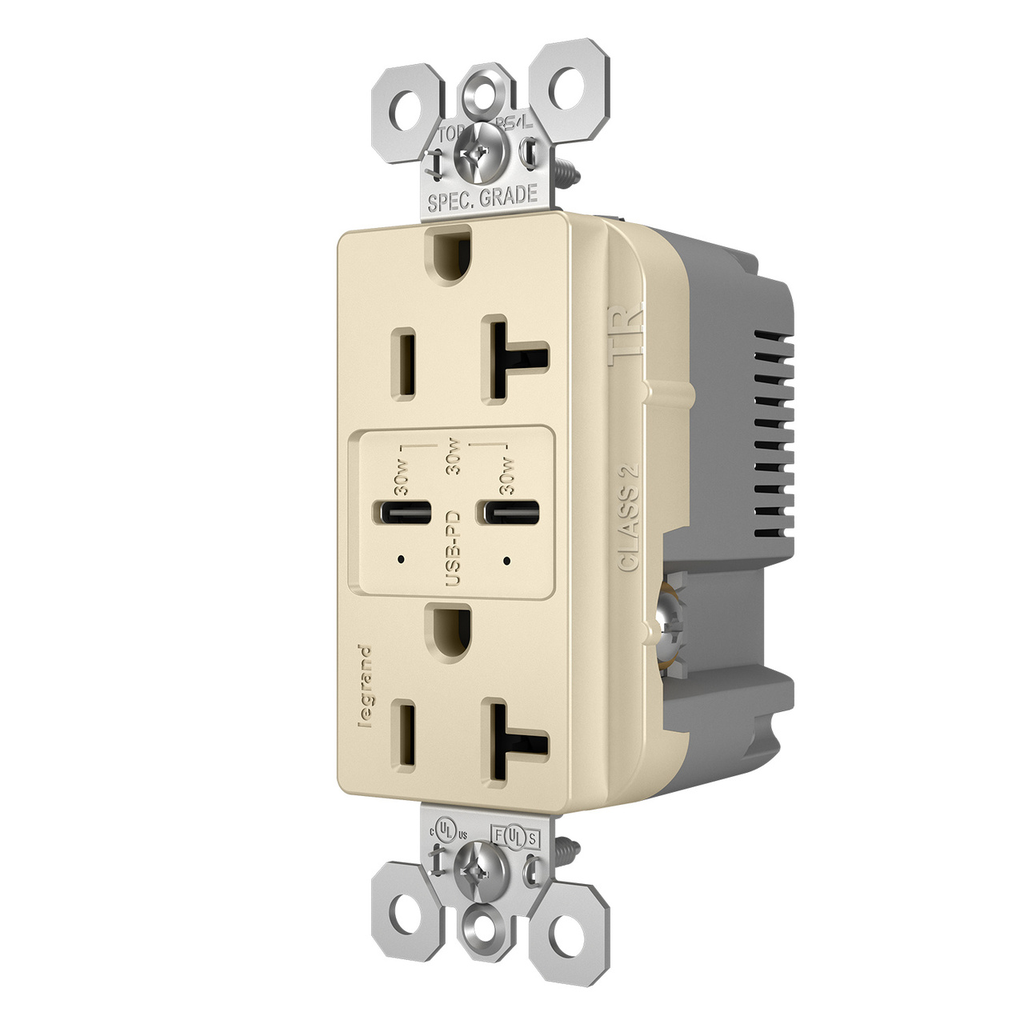

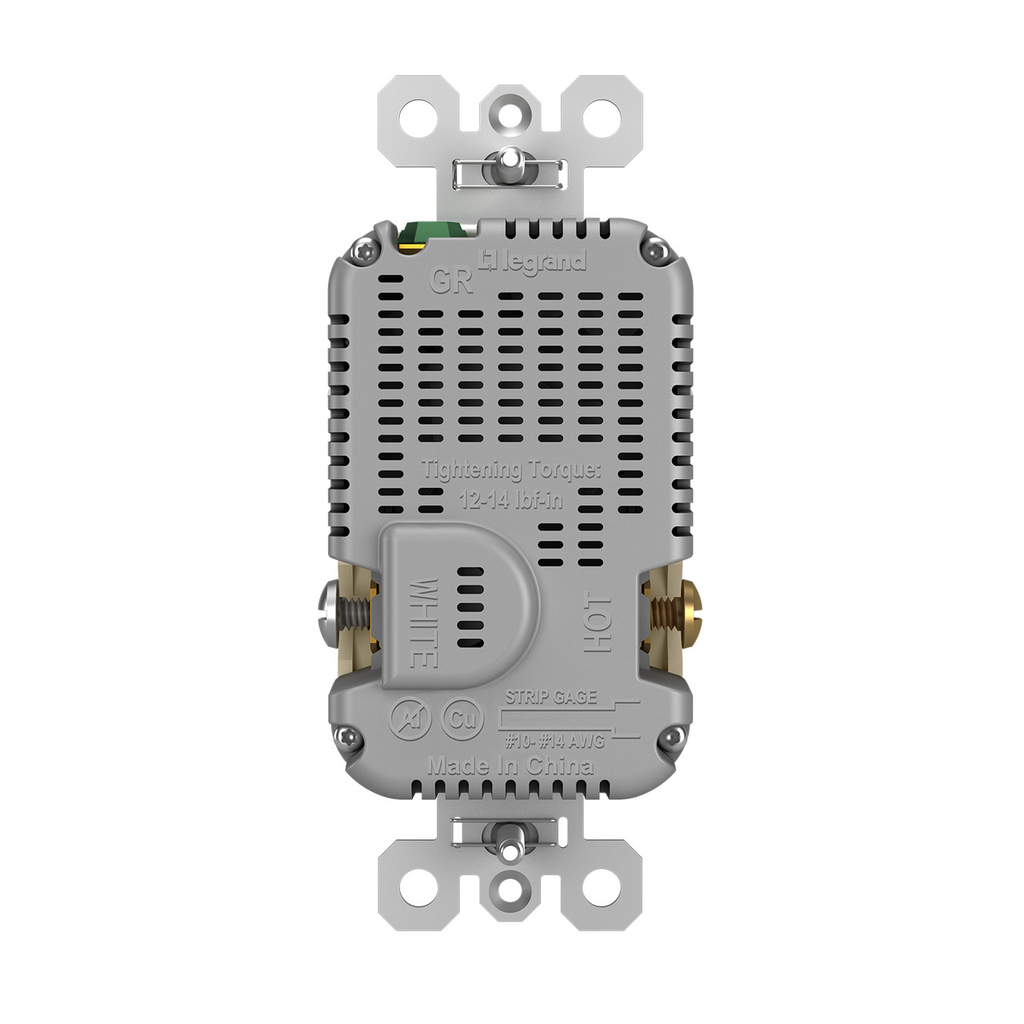

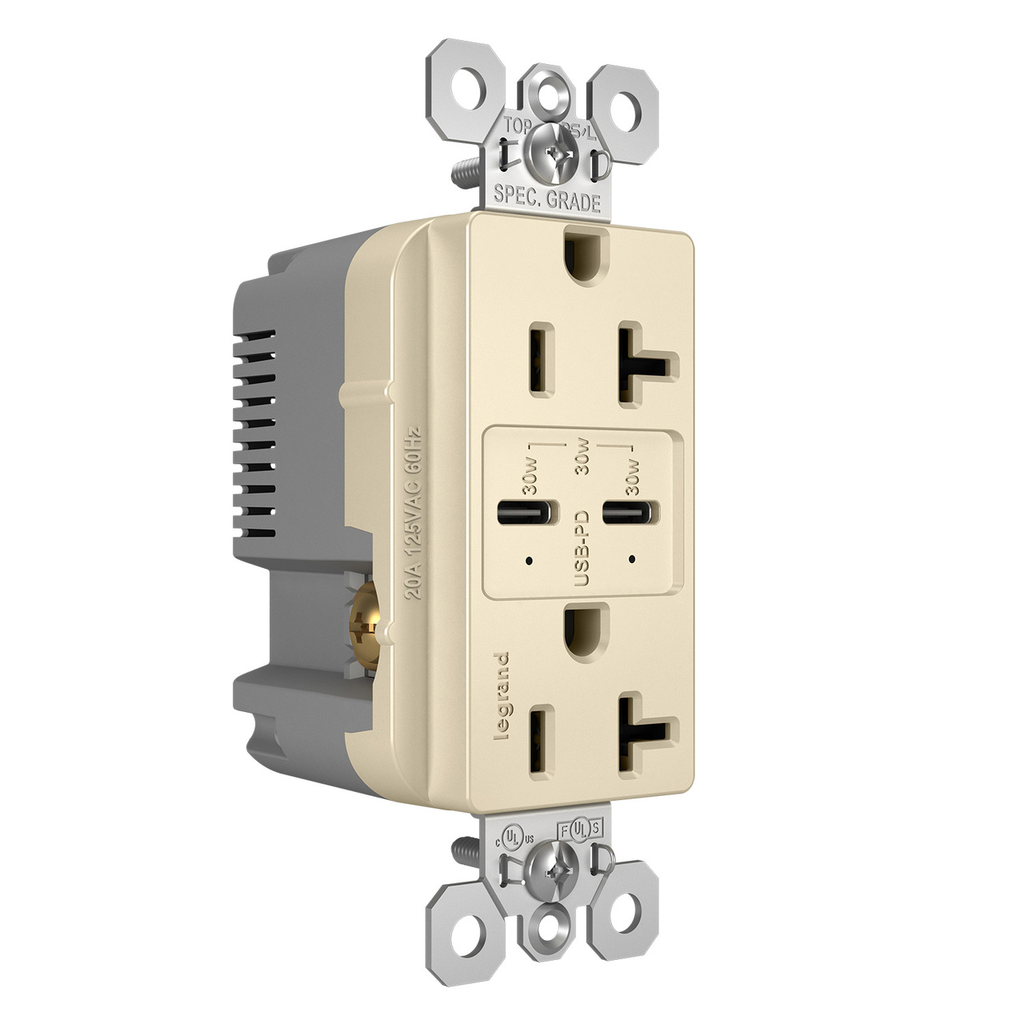

P&S TR20USBPDLA 30W PWR DELIVERY US

Manufacturer: Pass & Seymour / Legrand | Catalog # TR20USBPDLA | Cooper Electric Part # 1844353
$89.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure Product Catalog Page
20A Tamper-Resistant Ultra Fast PLUS Power Delivery USB Type CC OutletMade exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
20 Amp
Applications
Commercial
Connection Type
USB Type C/C
Current
20 Amp
Frequency
60 Hz
Indoor Outdoor
Indoor
Material
Thermoplastic
Mounting Type
Box
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees F
Outlet Type
Tamper-Resistant,USB-Charging
Type
Tamper-Resistant, Ultra Fast Plus Power Delivery USB Type C/C
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007297775
Color
Almond
Environmental Conditions
Indoor
Finish
Matte
GTiN
00785007297775
Product UPC
78500729777

Dimensions

Depth
1.42 Inch
Height
2.63 Inch
Warranty Length
1 yr
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Features
  • Charge the latest devices up to 2X as fast, thanks to 6 amps and a whopping 30W of power courtesy of advanced Power Delivery
  • Built for intelligent charging, the outlet detects and delivers the precise amount of power needed to maximize charging speeds
  • Provides fast and convenient built-in charging through two future-proof USB Type-C ports, accommodating new and upcoming devices without an adapter
  • Helpful indicator light lets you see charging status at a glance. Light glows yellow while charging is in progress, and shows green once the device battery is sufficiently charged
  • Includes multiple layers of overcurrent protection, ensuring the outlet and your favorite devices can charge at optimal levels without risk of damage
  • All Legrand USB Outlets are manufactured through high-quality design, sourcing and production, and backed by a Lifetime Warranty
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect
  • Replaces a traditional outlet easily, in as little as 10 minutes, with features like scalloped cover design and posted side-wire terminal screws for faster installation
  • More color options available to fit any style, including finishes to match current hardware and lighting trends
Certifications
  • RoHS Compliant
  • UL Listed
  • cULus Listed
