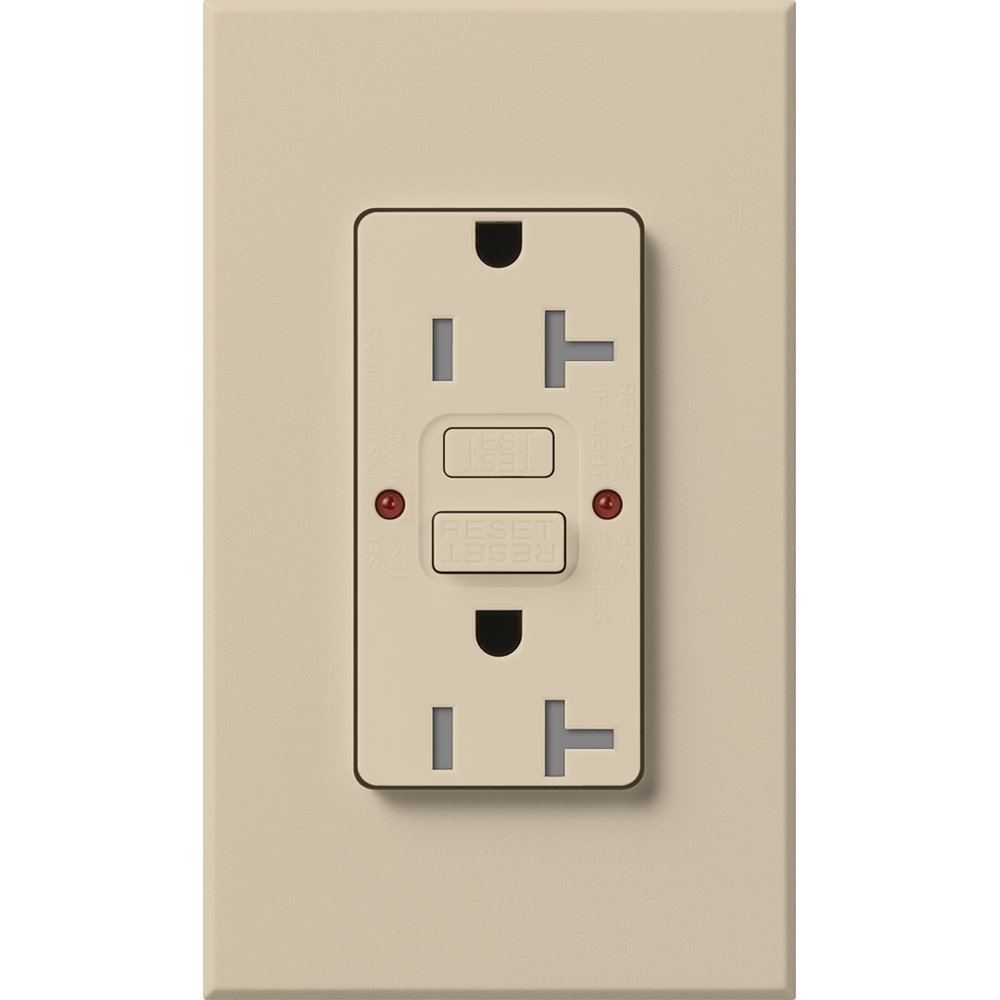

Product image for LUT NTR-20-GFST-TP NT 20A GFCI SELF
Email

LUT NTR-20-GFST-TP NT 20A GFCI SELF

Manufacturer: Lutron | Catalog # NTR-20-GFST-TP | Cooper Electric Part # 1839896
$167.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Self-testing technology allows GFCI to automatically check proper operation every 30 seconds. LEDs indicate status of GFCI protection function. Press reset button to reset GFCI after circuit interruption. Includes 1-gang wallplate.

Technical Information

Amperage
20 Amp
Conductor Size
12-10 AWG
Connection Type
Screw-Type Terminals
Insulation Material
Plastic
Material
Metal
Mounting Type
Wallbox
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3,4,5 Wire
Size
70 in
Standard
CSA,NOM,UL
TC Connection
Screw terminal
Temperature Rating
104 degrees F
Type
Self-testing GFCI Receptacle,Tamper-resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Nova T
Sub Brand
Architectural

General Product Info

12-Digit UPC
784276158497
Color
Taupe
Environmental Conditions
0 To 90% Humidity,Non-condensing
Finish
Matte
GTiN
00784276158497
Product UPC
78427615849

Certifications and Compliance

Country of Origin
China
Features
  • Continuous self-test functionality - disconnects power to receptacle if critical components are damaged and GFCI protection is lost, providing \"continuous self-testing\" that initiates within 2.5 seconds and is a continuous cycle every 30 seconds or less
  • Manual Test - this design incorporates a full system test function. The GFCI, when manually tested, induces a simulated ground fault leakage current to the printed circuit board, causing the mechanical system to react based on the action of the solenoid.
  • Reverse wire safety feature, if wired incorrectly there will be no power to the face or to downstream receptacles for added safety.
  • Clear visual indication of GFCI status LED indicating lights: - Green LED (power to the device) - Red LED (trip condition/ground fault condition) - Flashing Red LED (end of life)
  • Permanently installed internal tamper-resistant shutter mechanism capable of resisting insertion of foreign elements into the device.
  • Internal back wiring clamp and guide pocket, quick and dependable termination.
  • Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
  • LEDs indicate status of GFCI protection function
  • Press reset button to reset GFCI after circuit interruption
  • Includes 1-gang wallplate.
Standards and Certifications
  • UL
  • CSA
  • NOM
