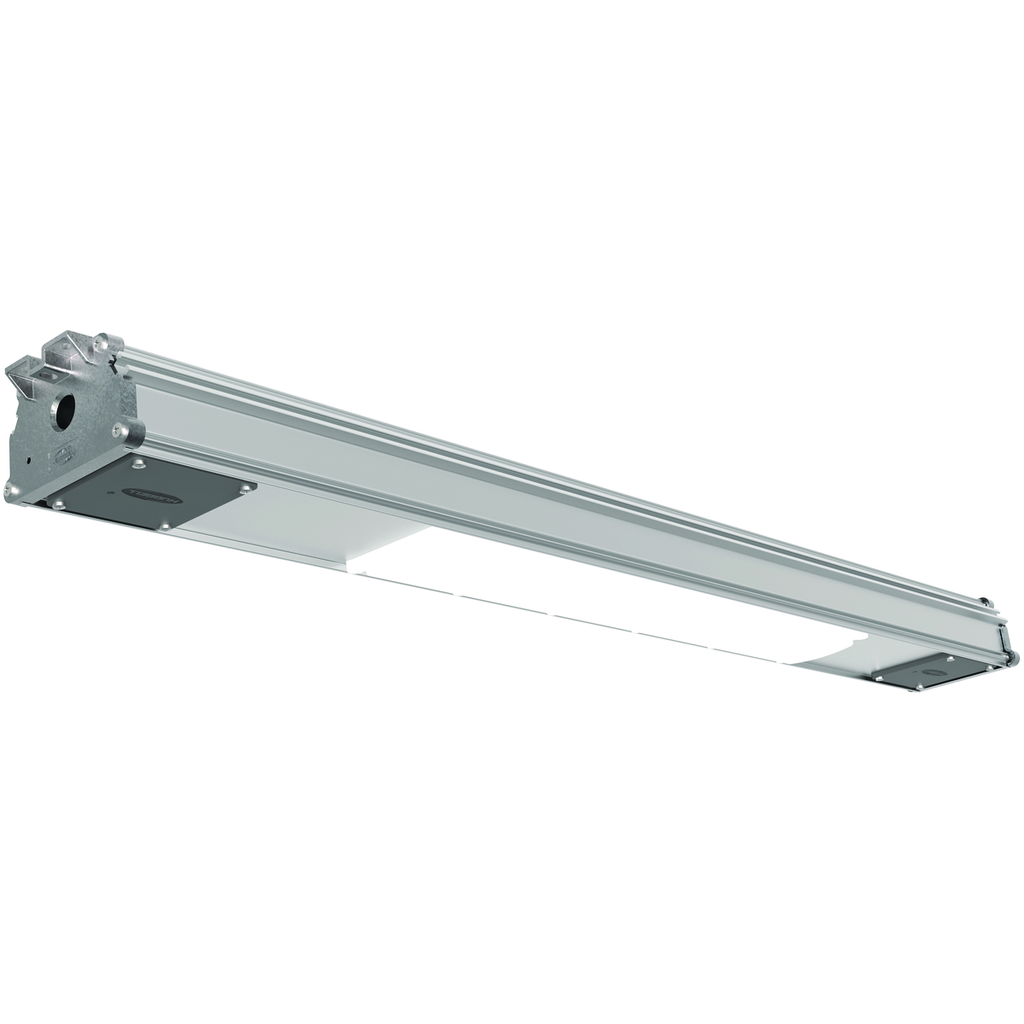

KLRK LAL4530D-L4-2AP LAL45W LED 120

Manufacturer: Killark | Catalog # LAL4530D-L4-2AP | Cooper Electric Part # 1838390
$3,161.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
LAL Series LED Linear, Hazardous Rated 45 Watt, 120-277 VAC , 5000K, 5054 Lumens, With 2 Access Plates

Technical Information

Frequency
50/60 Hz
Hub Size
3/4 in
IP Rating
IP66
Lumens
10,000 Lumen
Material
Aluminum
Mounting Type
Pendant,Surface
Voltage
120-277 Volt
Wattage
45 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936123707
Finish
Natural
GTiN
00783936123707
Product UPC
78393612370
Weight
17.9 lb

Dimensions

Height
6 Inch
Length
60 Inch
Width
6.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • Standard supplemental 6KV surge protection
  • Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
  • LALxE models have built-in battery backup for 90 minute emergency exit
  • Shallow design minimizes profile in work areas with low ceiling heights
  • Diffuse Lens Standard to minimize glare
  • Clear Lens available
  • Polycarbonate Single Lens 18W to 60W, Double Lens model 34W to 120W
  • Slot Back Design allows multiple mounting access points across length slots can also be used with 5/16 or 8mm bolts & nuts
  • 3 housing slots, 1 center back and 2 at 45°
  • Variety of mounting options including swivel brackets, wall, ceiling brackets, or beam clamps
  • End Caps each have 2 mounting feet built-in plus a safety strap attachment point
  • Standard unit End Caps each have a single NPT hub
  • Fixture is furnished with one close-up plug and two to reducers provides out of the box dead-end to feed-through flexibility
  • Metric openings are available
  • Standard LALs have one wiring Access Plate for easy access to driver leads
  • Many Midpower LEDs blend light to simulate fluorescent tubes
  • Crisp White Light for Excellent Color Rendering Chromaticity 5000K (CCT) approx. 70 CRI
  • Energy Savings High lumens per watt
  • LED Array Life to 212,000 maintenance free hours to 70% initial lumens
  • Ambient suitability -40°C to 65°C (see tables). 0°C to 50°C Ambient suitability for Emergency models
  • Instant On Including after power interruption
  • World Voltage 120 - 277VAC 50/60Hz
  • Solderless LED Board Connections Vibration Resistant
  • LM80-08 Measurement of lumen maintenance for LED light sources
  • LM79-08 Certified Absolute Photometry, including Chromaticity Color for Solid State Lighting
  • L70 Values Industry Nomenclature for Hours of use to 70% of initial Lumens TM-21 & Calculated
  • LAL Series Linear LED fixtures are made of a copper-free aluminum body and use energy efficient LED's that are suitable for use in harsh and hazardous environments. The LAL Series hold Quad Certification for installation all over the world having NEC, CEC, IECeX, and ATEX certifications.
