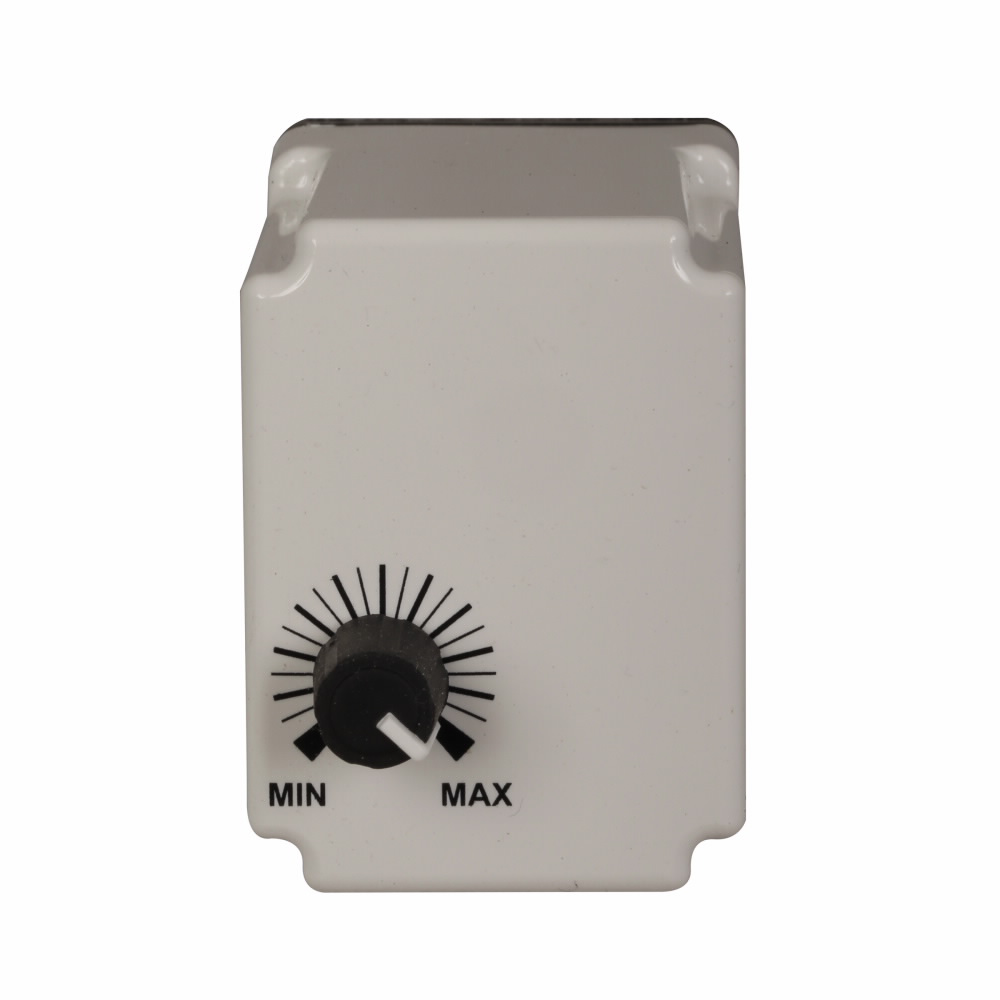

Product image for Cutler-Hammer TMR5F2224 TMR5 Series Time Delay Relays, Octal style terminals, 11 pins, OFF delay (control switch trigger), 6 seconds-10 minutes time delay, 24 Vac/dc input voltage, 10A max. allowable load, DP
Image thumbnail 0

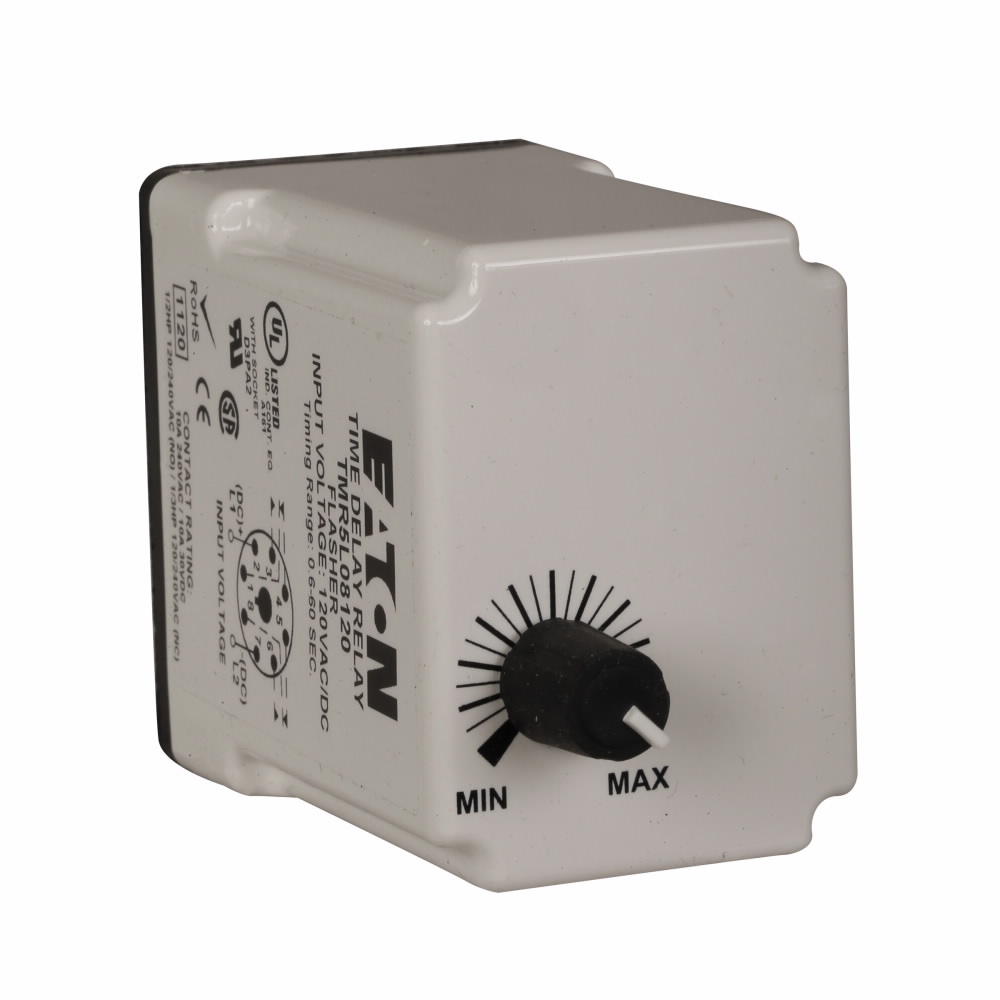

Image thumbnail 1

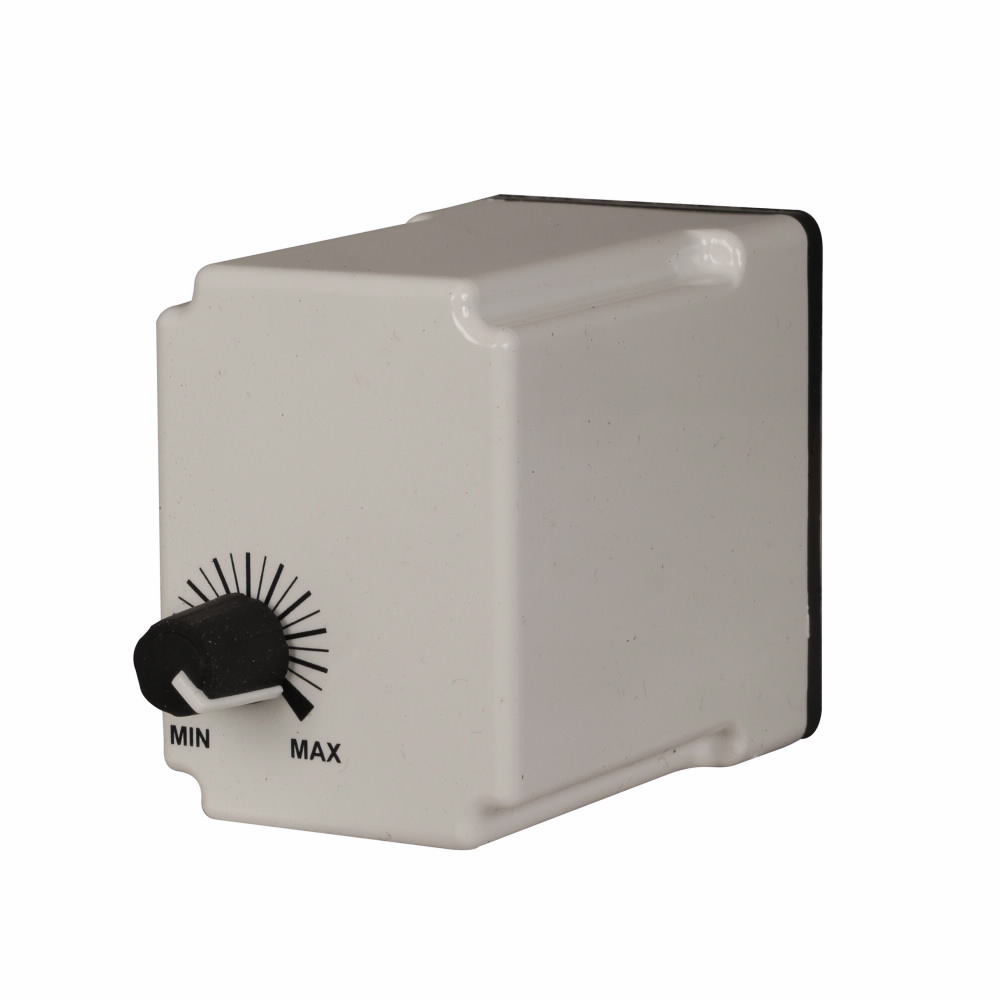

Image thumbnail 2
Image thumbnail 3
Email

Cutler-Hammer TMR5F2224 TMR5 Series Time Delay Relays, Octal style terminals, 11 pins, OFF delay (control switch trigger), 6 seconds-10 minutes time delay, 24 Vac/dc input voltage, 10A max. allowable load, DP

Manufacturer: Cutler-Hammer / Eaton | Catalog # TMR5F2224 | Cooper Electric Part # 1837642
$259.64/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
TMR5 Series Time Delay Relays, Octal style terminals, 11 pins, OFF delay (control switch trigger), 6 seconds-10 minutes time delay, 24 Vac/dc input voltage, 10A max. allowable load, DPDT contact configuration

Technical Information

Applications
Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Contact Configuration
DPDT
Input Voltage
24 V
Number of Pins
11
Standard
CSA,E2186,UL
Terminal Type
Octal
Type
Timing relay

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685124056
GTiN
00786685124056
Product UPC
78668512405
Weight
.75 lb

Dimensions

Height
2.4 Inch
Length
3-1/2 Inch
