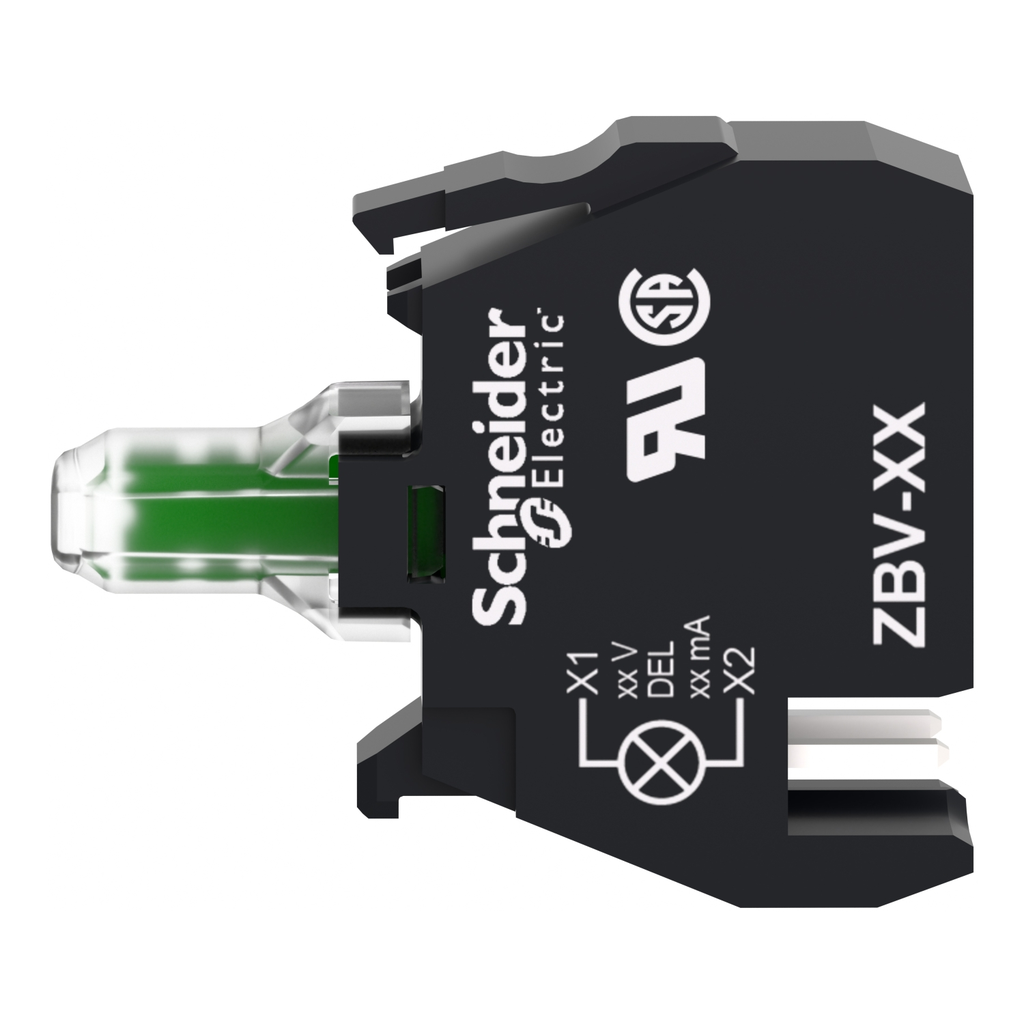

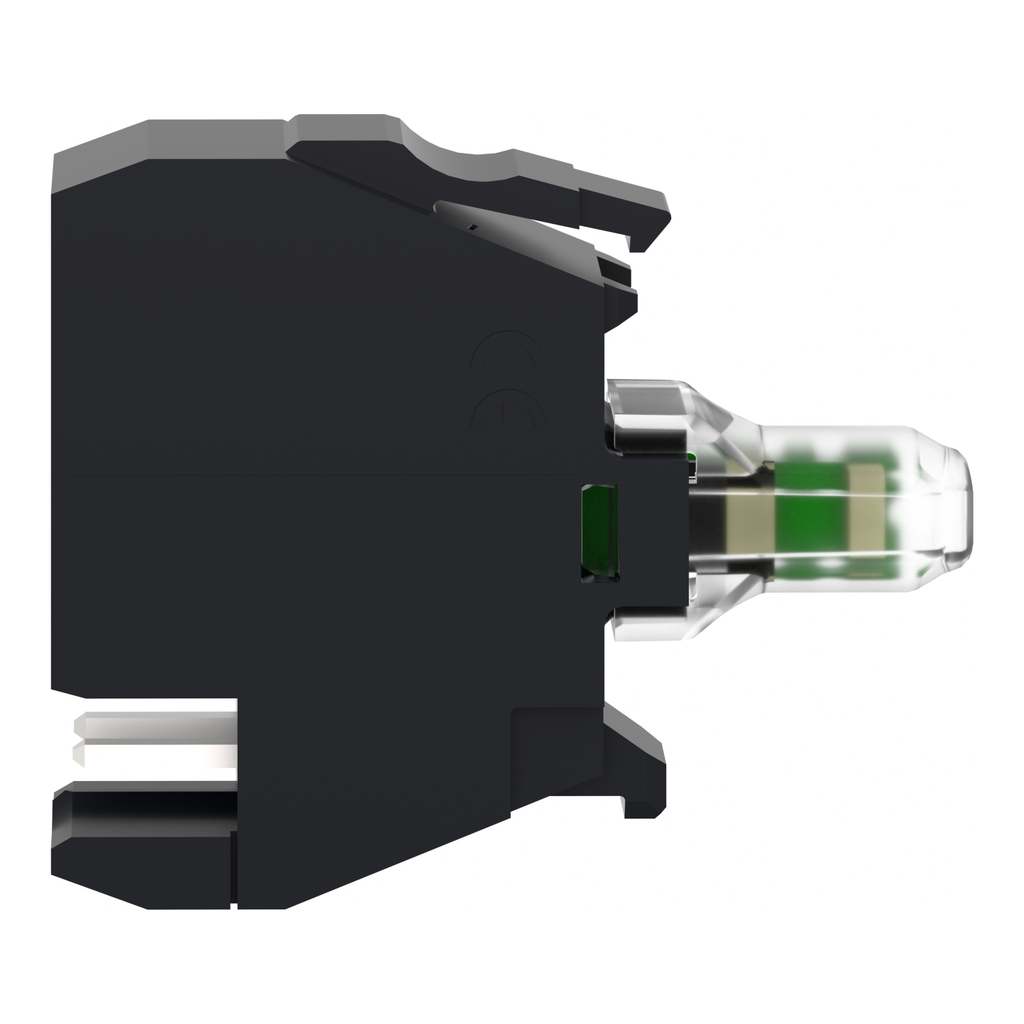

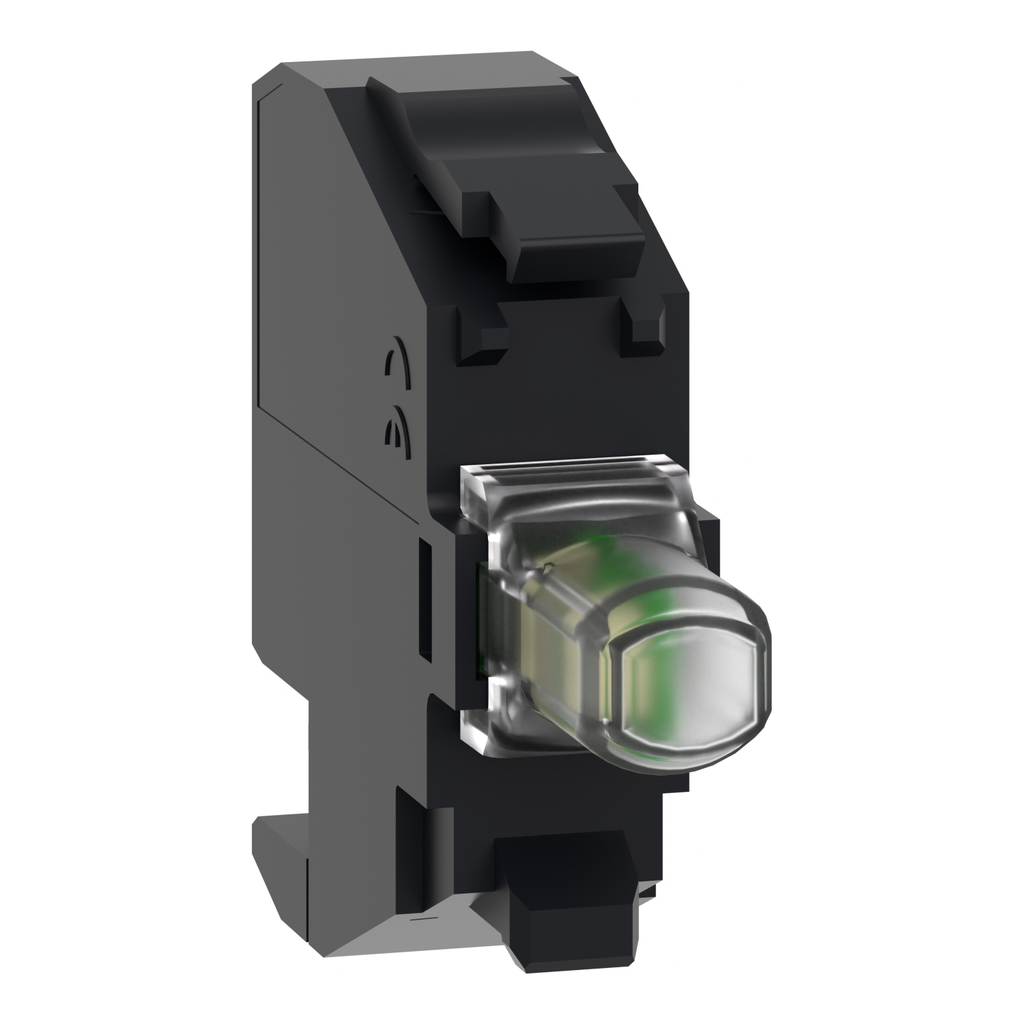

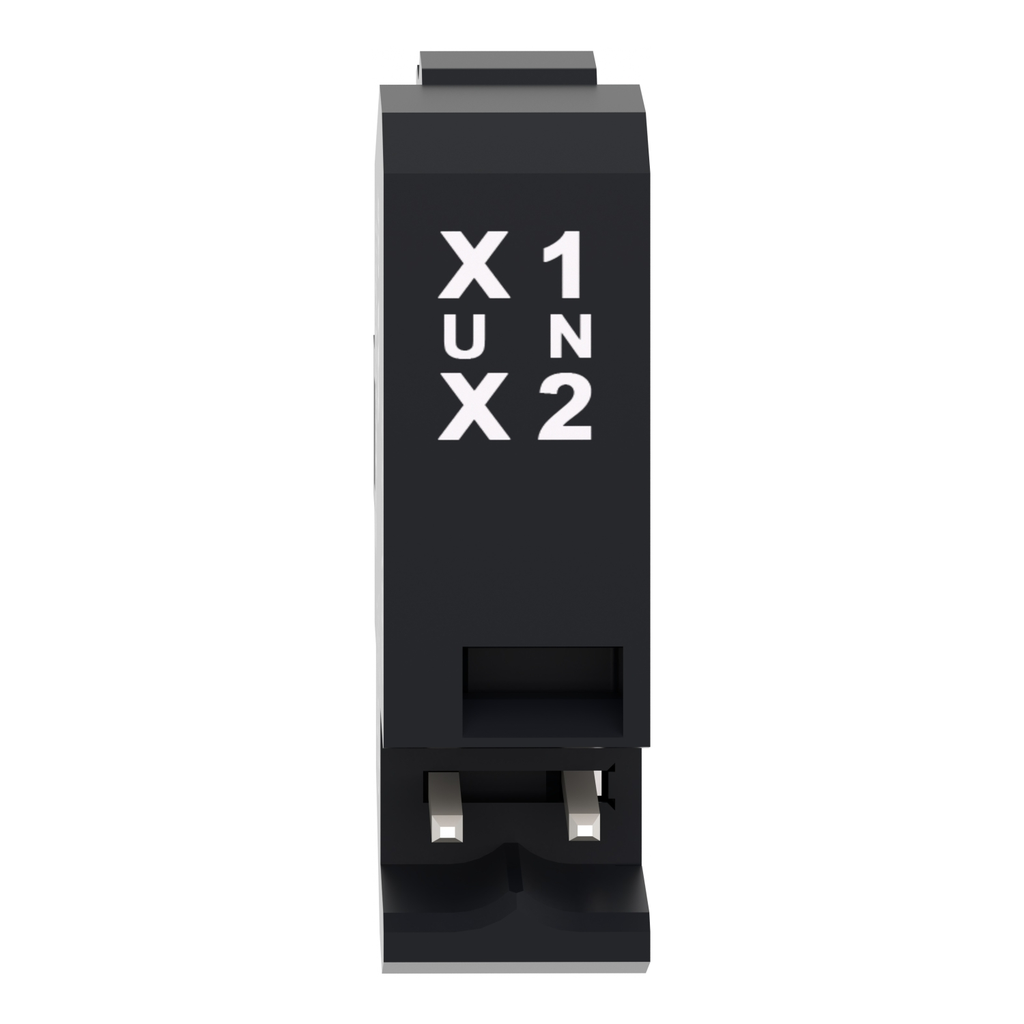

Square D ZBVB14 22 mm 24 Volt White Push Button Light Module

Manufacturer: Square-D / Schneider | Catalog # ZBVB14 | Cooper Electric Part # 1836845
$41.90/ea
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony ZB, white light block operates with a universal LED. It is supplied with 24V AC/DC and uses plug-in terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40.C to 70.C allows versatility in usage of product.

Technical Information

Current
15 mA
Indicator
INTEGRAL LED,PROTECTED LED,WHITE
Light Source
Universal LED
Net Weight
0.016 kg
Operating Temperature
-40-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
PLUG-IN CONNECTOR
Type
Light block
Voltage
24 Volt AC/DC 50/60 HZ

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZBV

General Product Info

12-Digit UPC
389110090140
Color
White
GTiN
03389110090147
Product UPC
78590137456
Weight
0.016 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZB5AZ905
  • ZBY2101
  • ZBYLEG503001
  • ZBYP2101
