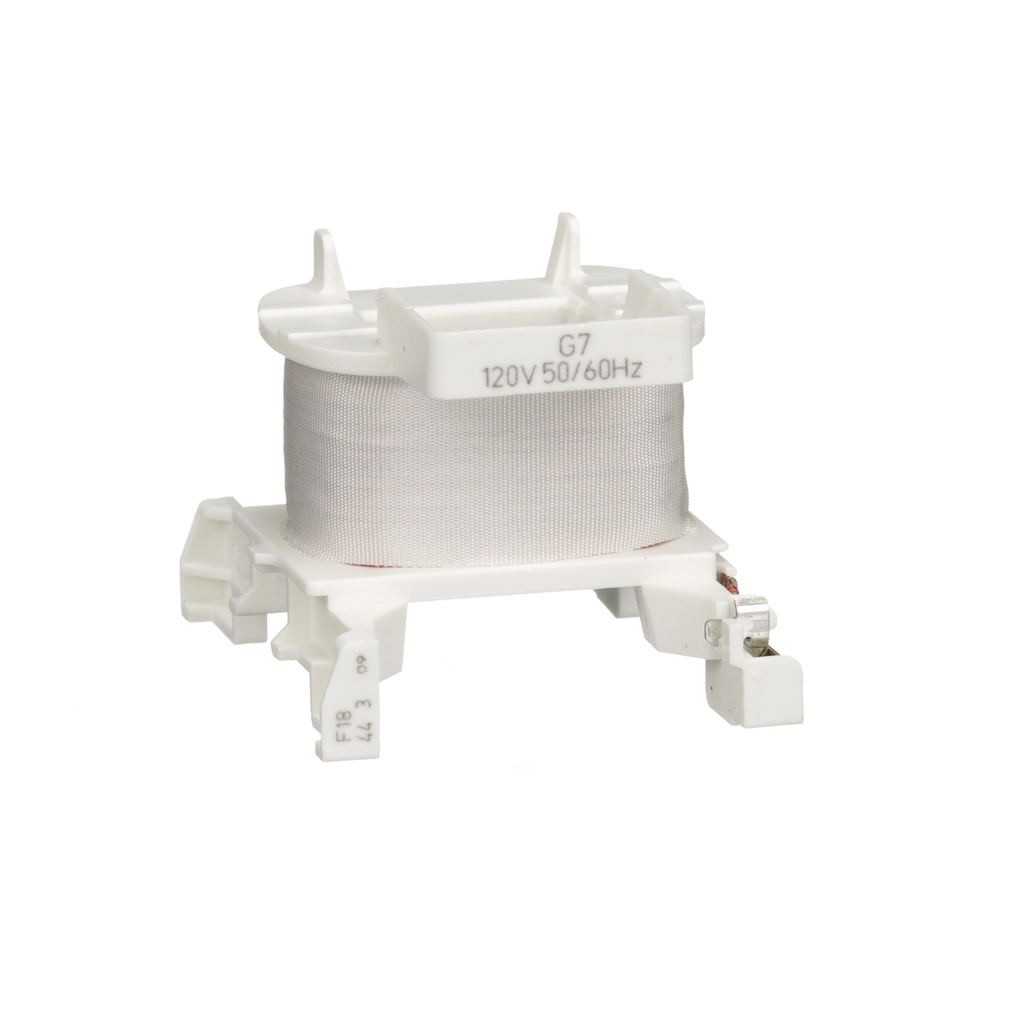

Square D LXD1G7 120 VAC at 50/60 Hz 70 VA AC Contactor Coil

Manufacturer: Square-D / Schneider | Catalog # LXD1G7 | Cooper Electric Part # 183597
$32.68/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 120 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C.

Technical Information

Applications
LC1D09...D38;CAD;LC1DT20...DT40
Coil Voltage
120@50/60Hz V
Net Weight
0.07 kg
Operating Cycles
3600 cyc/h 60 C
Operating Temperature
23F..140F (-5C..60C)
Range
TeSys
TC Connection
SCREW CLAMP
Type
Contactor coil

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
389110467751
GTiN
03389110467758
Product UPC
78590121409
Weight
0.07 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • LC1D09G7
  • LC1D18G7
  • LC1D25G7TQ
  • LC1D12G7
  • LC1D25G7
  • LC1D32G7
  • LC1D258G7
  • CAD32G7
  • LC2D32G7
  • LC2D18G7
  • LC1D128G7
  • LC2D09G7
  • CAD50G7
  • LC2D12G7
  • LC1D098G7
  • LC1DT20G7
  • LC2D25G7
  • LC1DT25G7
  • LC1D38G7
  • LC1D099G7
  • LC1D09G7TQ
  • LC1DT32G7
  • CAD32G7TQ
  • CAD323G7
  • LC1D188G7
  • LC1D1286G7
  • CAD326G7
  • LC1D32G7TQ
  • LC2D09G7V
  • LC1D256G7
  • LC1D326G7
  • LC1D096G7
  • LC1D186G7
  • LC1D123G7
  • LC2DT25G7
  • LC2D18G7V
  • LC2D12G7V
  • LC1D12G7TQ
  • LC2D25G7V
  • LC1D093G7
  • LC1D18G7TQ
  • LC2DT32G7
  • LC1D126G7
  • LC1D183G7
  • LC1DT326G7
  • LC3D320AG7
  • LC2D32G7V
