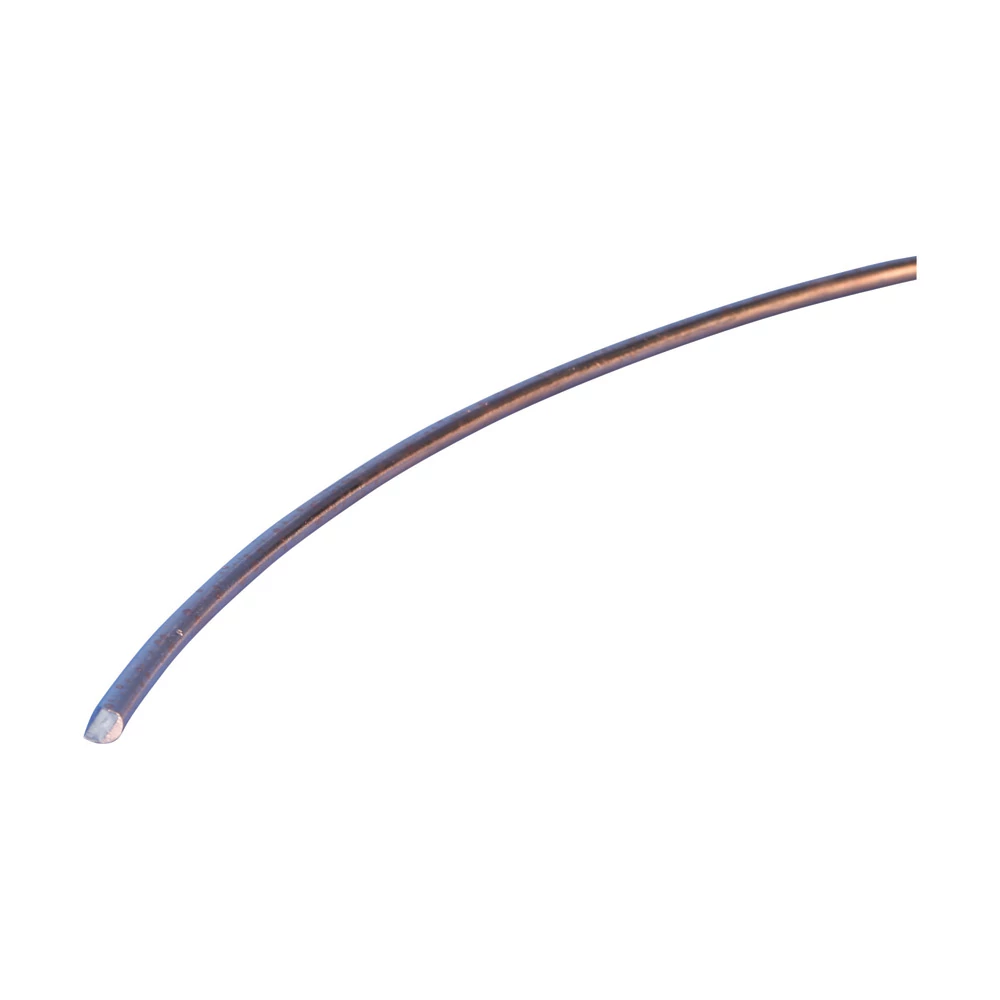

Product image for Erico CBSC8 Cu-Bond Round Conductor, 0.31" dia, 328', #4 Fusing Capacity
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Erico CBSC8 Cu-Bond Round Conductor, 0.31" dia, 328', #4 Fusing Capacity

Manufacturer: Erico, Inc | Catalog # CBSC8 | Cooper Electric Part # 1833582
$747.23/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
Theft-deterrent; and offers a steel core which is hard to cut with hand tools. The steel core is plated with nickel then electro-plated with a coating of copper.

Technical Information

Material
Steel

Packaging

Standard Packaging Qty
100 m

Manufacturer Information

Brand
nVent Erico

General Product Info

12-Digit UPC
782856704225
GTiN
00782856704225
Product UPC
78285670422
Weight
86.6 lb

Dimensions

Diameter
0.31 Inch
Length
328-328.00 Foot

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certifications
UL (IEC) OVHF.E476308
Features
  • Theft-deterrent; steel core is hard to cut with hand tools
  • Cost-effective; copper bonded to a steel core minimizes the amount of copper in the cable
  • Superior corrosion resistance; application life of typically 30-40 years in most soil conditions
  • Copper-bonded coating will not crack or tear when the conductor is bent
  • High resistance to corrosion and provides a low-resistance path to ground

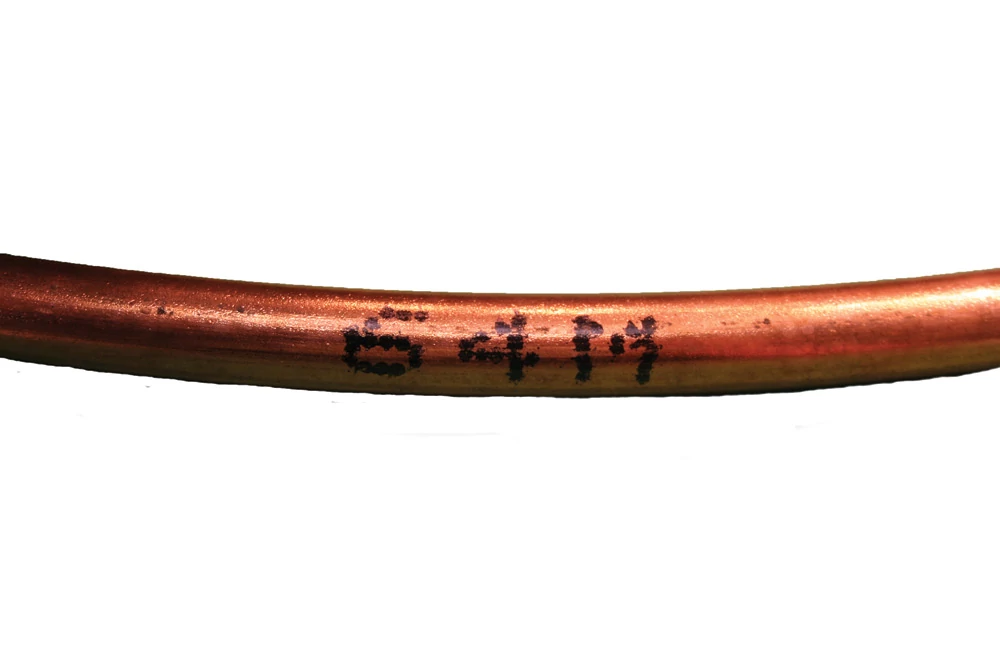

  • nVent ERICO Cu-Bond Round Conductor is marked every meter (3.28') for easy measurement in the field
  • Meets the requirements of IEC® 62305-3 Edition 2 and IEC/EN 62561-2 for lightning protection applications
  • nVent ERICO Cu-Bond Round Conductors are UL certified to IEC® 62561-2
Certifications
  • UL (IEC) IEC 62561-2 (2012)
  • DoC, ERICO CBSC EN IEC 61561-2
