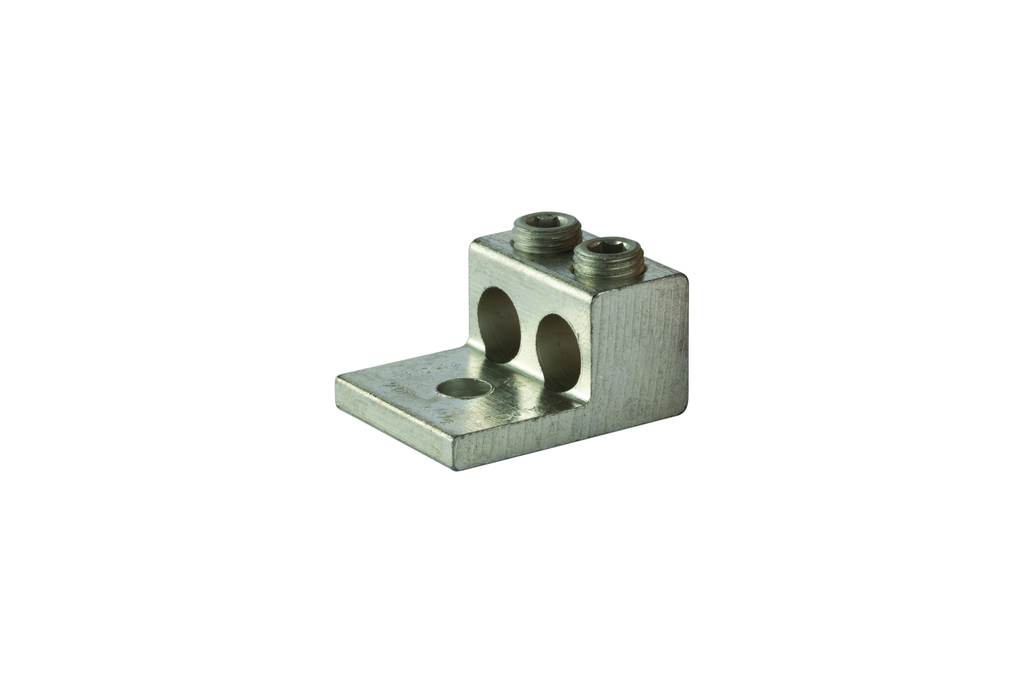

Product image for NSI 2-800T 1/2 Inch 300 to 800 MCM Aluminum 2-Port 1-Hole Dual Rated Lug
Email

NSI 2-800T 1/2 Inch 300 to 800 MCM Aluminum 2-Port 1-Hole Dual Rated Lug

Manufacturer: NSi | Catalog # 2-800T | Cooper Electric Part # 18285
$33.64 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
BAA | Buy American Compliant BAA | Buy American Compliant Product Spec Sheet
2 Port Aluminum Lug 800 - 300 MCM Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed.

Technical Information

Applications
Wire Termination
Bolt Size
1/2 IN
Conductor Size
300-800 kcmil
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
1
Number of Conductors
2
Number of Poles
1 Pole
Number of Ports
2
Standard
CULUS
Temperature Rating
90 degrees C
Type
Aluminum Double Lug
Voltage
600 Volt
Wire Size
300-800 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001252
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001252
Product UPC
66238100125

Dimensions

Height
1.69 Inch
Length
3-1/4 Inch
Warranty Length
1 yr
Width
2.75 in

Certifications and Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
Features
  • Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
