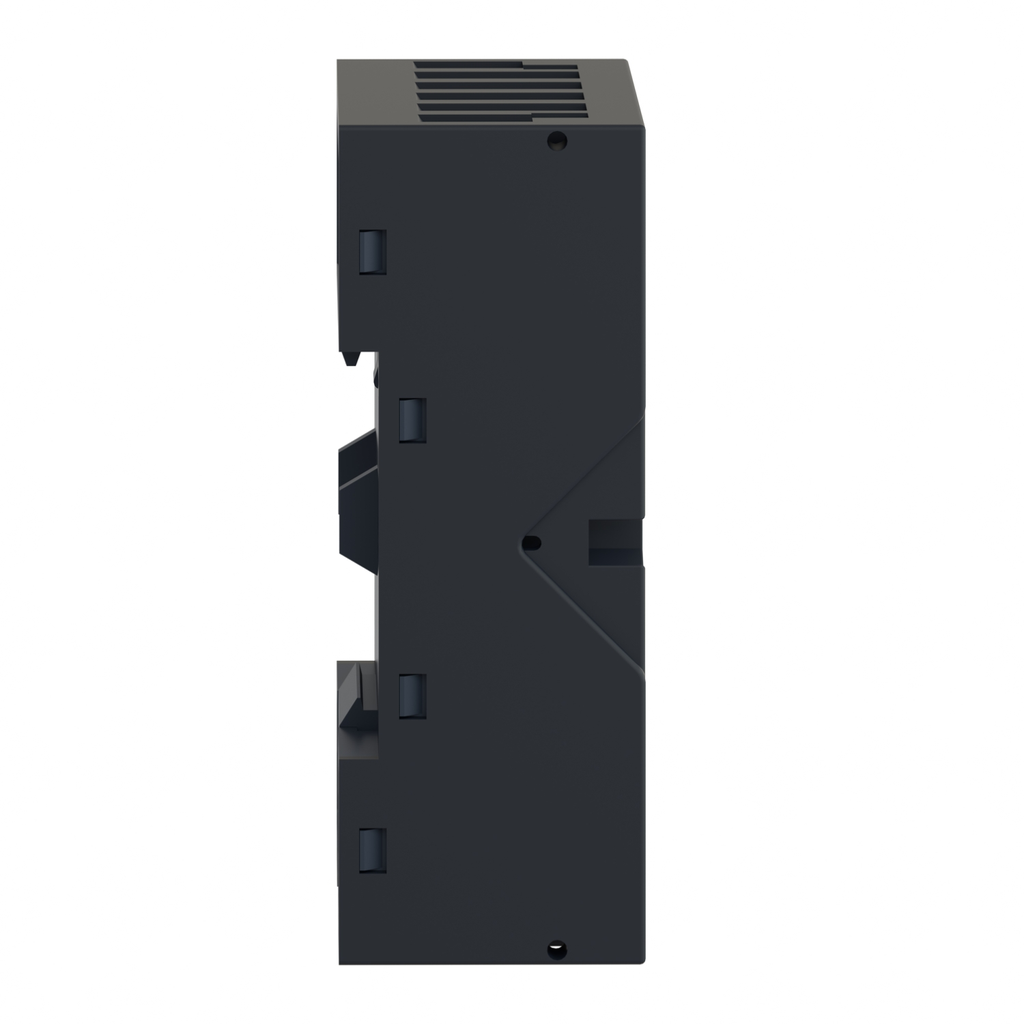

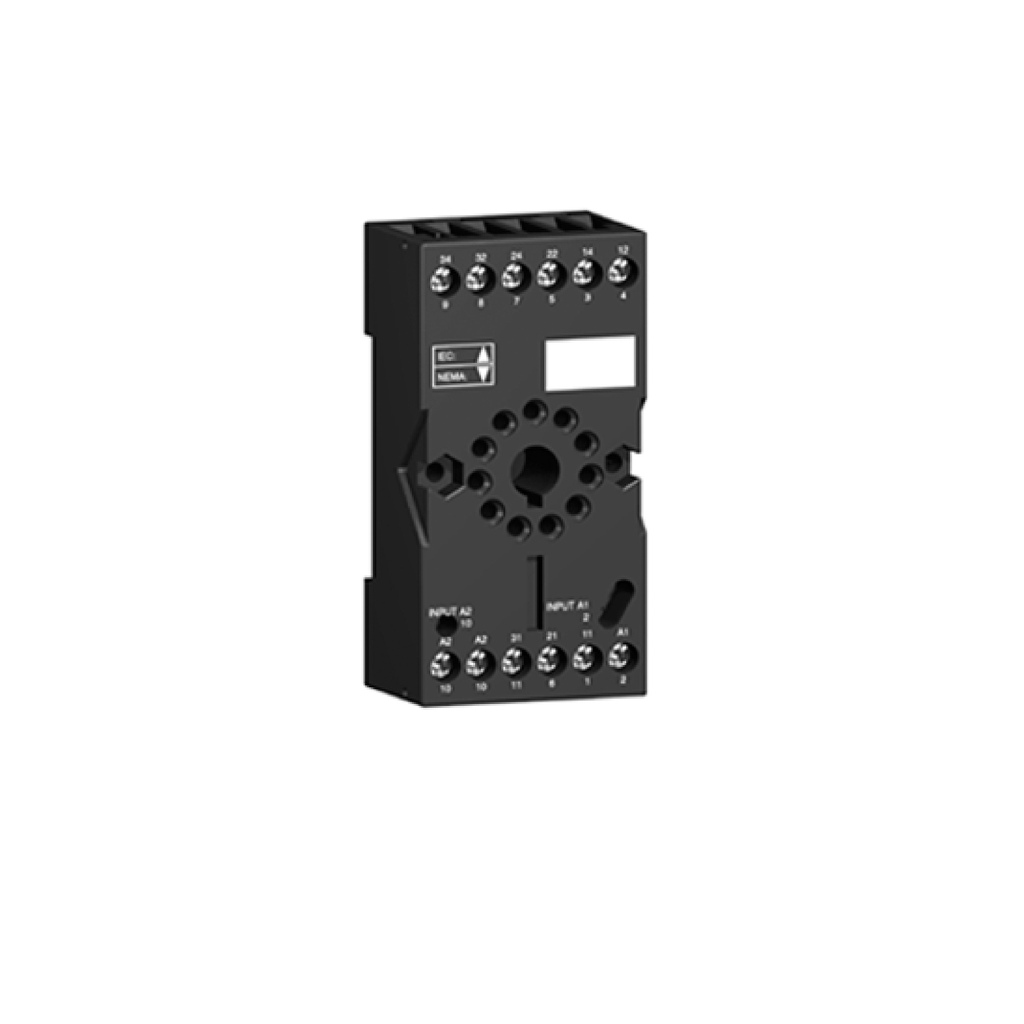

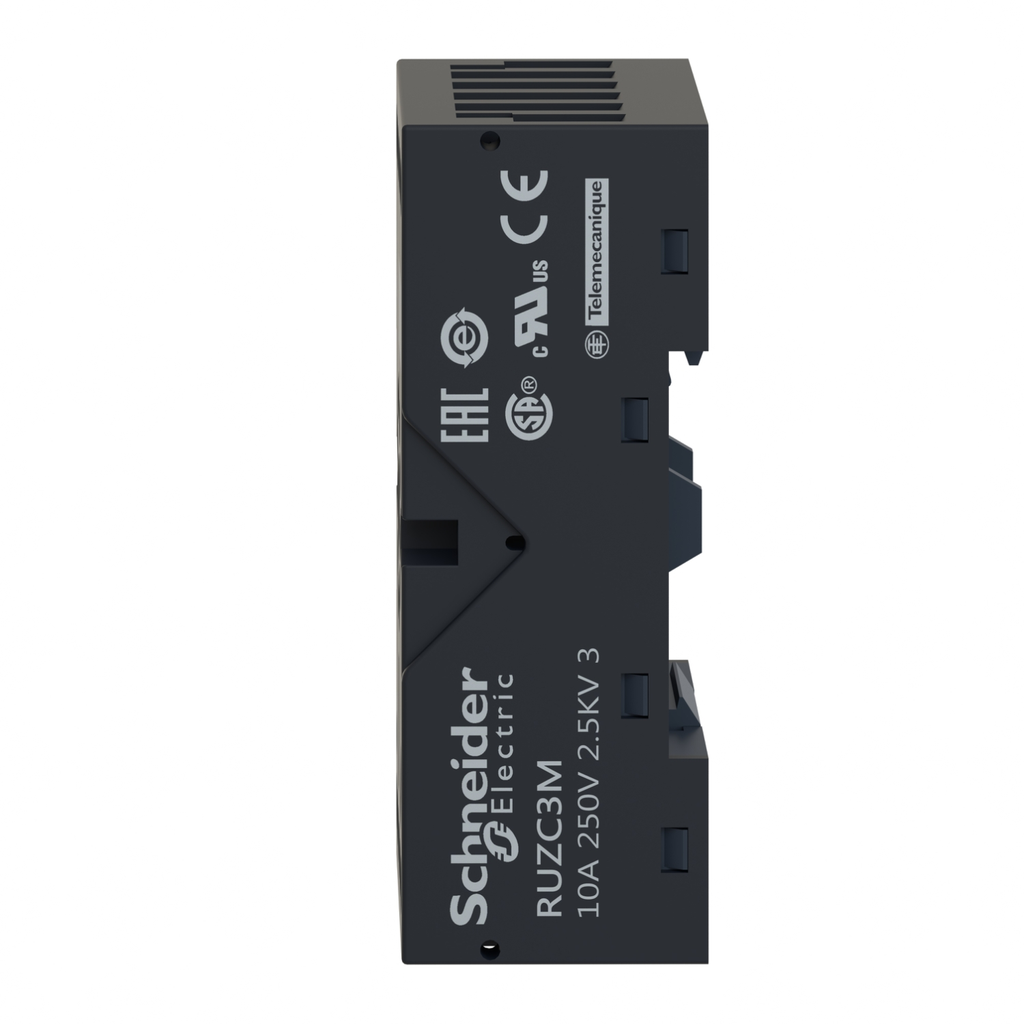

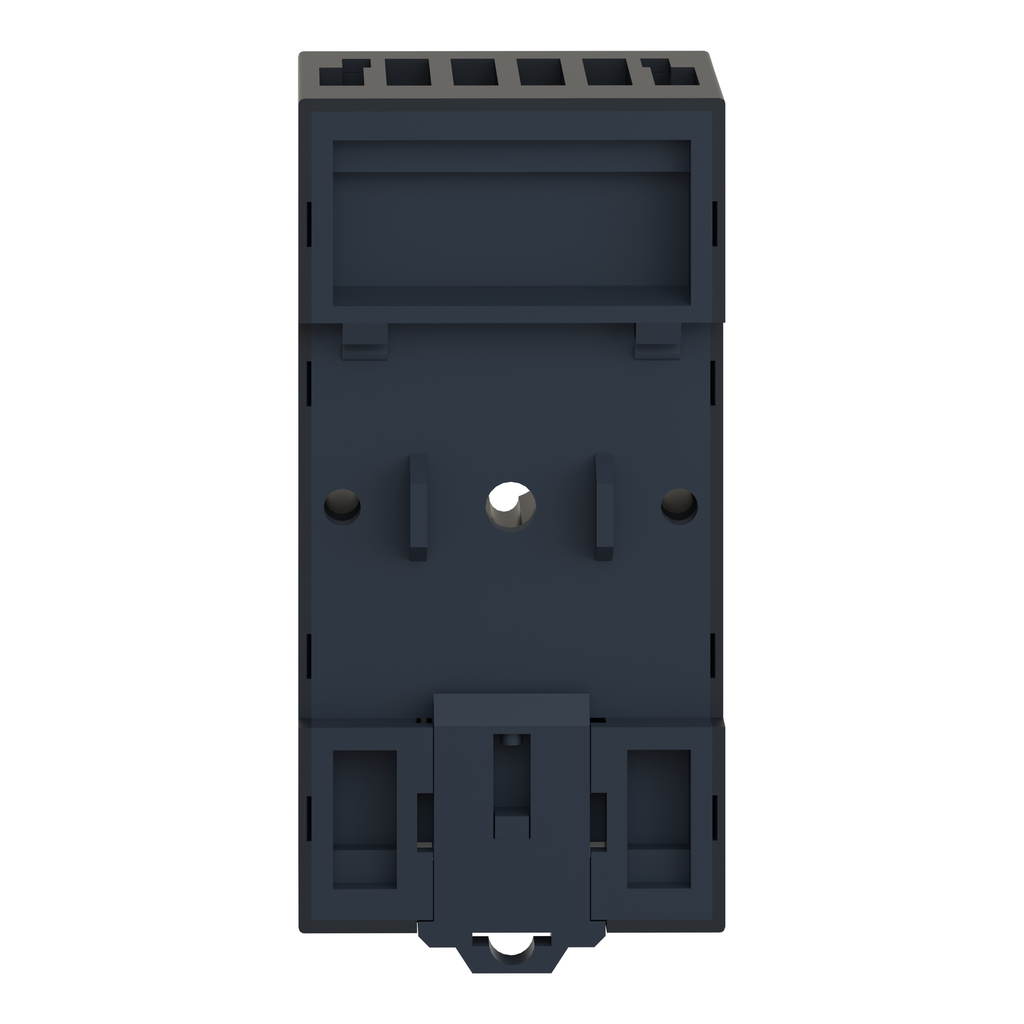

Square D RUZC3M 250 Volt 10 Amp 35 mm Din Rail/Panel Mount Box Lug Connector Terminal Relay Socket

Manufacturer: Square-D / Schneider | Catalog # RUZC3M | Cooper Electric Part # 182788
$6.08/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Wednesday 7:00am ET
36 available

For Delivery

Order by Wednesday 5:00pm ET for delivery Thursday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
"This Harmony RUZ plug-in relay socket has a coil control voltage of 250V AC and has mixed contacts with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
10 Amp
Applications
PLUG-IN RELAY RUM 3 C/O-PLUG-IN RELAY RE48A 2 C/O
Enclosure
IP20
Line Rated Current
10 A
Net Weight
0.054 kg
Operating Temperature
-40-55 degrees C
Standard
IEC 61984
Storage Temperature
-40-85 degrees C
Type
Socket
Voltage
250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
RUZ

General Product Info

12-Digit UPC
389119403200
GTiN
03389119403207
Product UPC
78590192389
Weight
0.054 kg

Dimensions

Warranty Length
18 mth
Width
38 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
China
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • RUW101MW
Cross Sell Products
  • RUMC31P7
  • RUMC32P7
  • RUMC31BD
