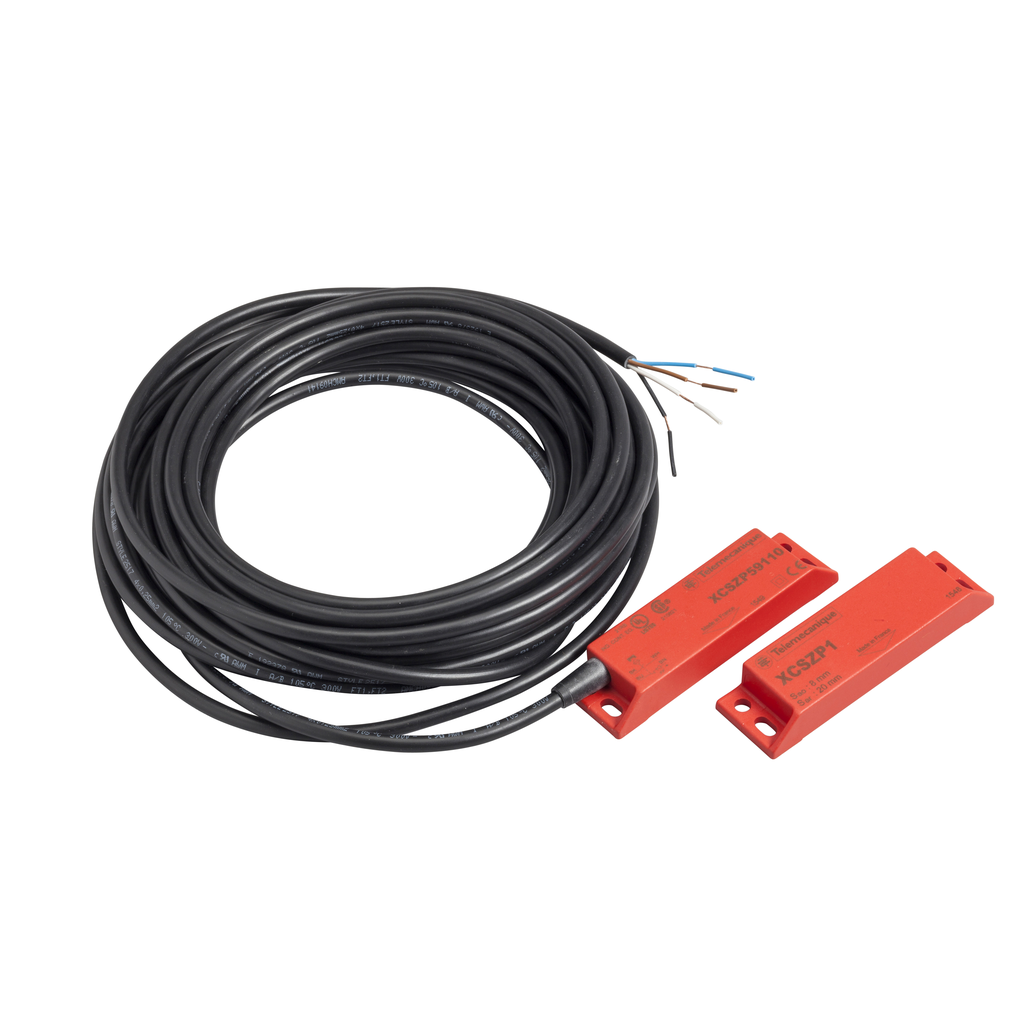

Product image for TES XCSDMP7015 Coded magnetic switch, TES Safety switches XCS, XCSDMP, 2 NC + 1 NO, 1 NC staggered, 5 m
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES XCSDMP7015 Coded magnetic switch, TES Safety switches XCS, XCSDMP, 2 NC + 1 NO, 1 NC staggered, 5 m

Manufacturer: TES Electric | Catalog # XCSDMP7015 | Cooper Electric Part # 1826203
$136.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
The Preventa XCS range is an offer of safety switches. They are designed for controlling the safe opening and interlocking of guards and covers. This coded magnetic system, detects without contact. 3 approach directions. It features a rectangular plastic boby, and a 5m long pre-cabled electrical connection . 3-pole contact 2 NC + 1 NO (1 NC staggered). It can reach category 4 Safety Level with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1.

Technical Information

Action
1 NC staggered
Actuator
NON-CONTACT
Amperage
100m Amp
Contact Configuration
2 NC + 1 NO
Contact Material
Rhodium
Enclosure
Thermoplastic PBT
Enclosure Material
Thermoplastic
Material
Plastic
Net Weight
0.18 kg
Number of Poles
3 Pole
Operating Cycles
1200000
Operating Temperature
-25-85 degrees C
Size
0.51 in
Standard
CSA C22.2 No 14,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 12100,ISO 14119,UL 508
Storage Temperature
-40-85 degrees C
TC Connection
Pre-cabled
Type
Coded magnetic switch
Voltage
24 Volt

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCSDMP

General Product Info

12-Digit UPC
785901681069
GTiN
03389110972016
Product UPC
78590168106
Weight
0.40 lb

Dimensions

Cable Length
5 m
Depth
13 mm
Height
88 mm
Warranty Length
18 mth
Width
25 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
