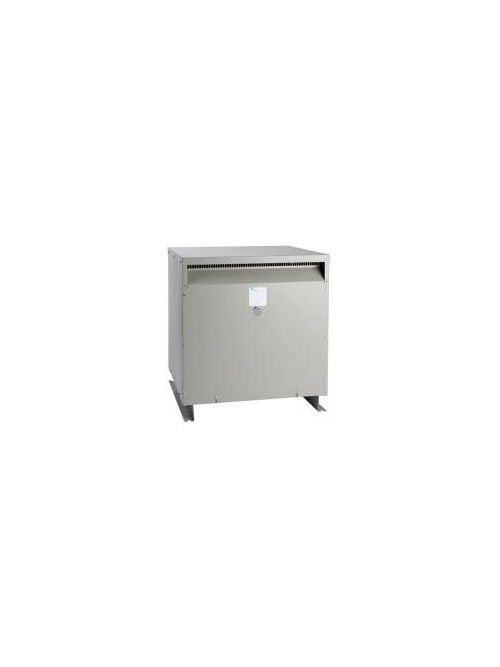

Product image for Actuant TP35000753S 3 Phase 60 Hz 480 Delta Primary Volt 480y-277 Secondary Volt Transformer
Image thumbnail 0
Image thumbnail 1
Email

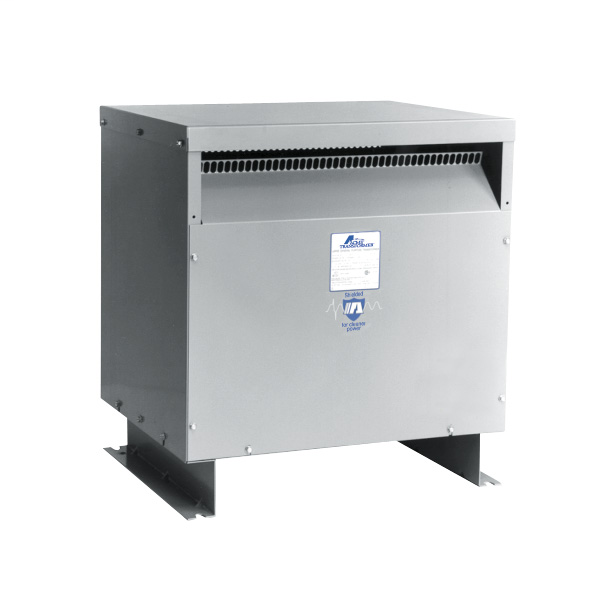

Actuant TP35000753S 3 Phase 60 Hz 480 Delta Primary Volt 480y-277 Secondary Volt Transformer

Manufacturer: Acme Electric | Catalog # TP35000753S | Cooper Electric Part # 181892
$4,692.37/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
480 Delta Primary Volts - 480Y/277 Secondary Volts - Acme three phase low voltage distribution transformers are designed for industrial and commercial applications. All of Acme general purpose transformers are rated for 600 volts and below. Encapsulated units are offered in ratings up to 15kVA. Ventilated units are available in ratings up to 1000 kVA and meet the requirements of U.S. DOE 10 CFR Part 431 (NEMA TP1) efficiency standards.

Technical Information

Applications
Ventilated
Number of Phases
3 Phase
Type
Isolation transformer

Manufacturer Information

Brand
Acme Electric Company

General Product Info

12-Digit UPC
047503204481
GTiN
00047503204481
Product UPC
04750320448
Weight
600 lb

Dimensions

Depth
22.37 Inch
Height
29.41 Inch
Width
28.150 in
Overview
  • Suitable for wall or \"trapeze\" mounting
  • Noise and vibration isolating pads standard to assure quiet operation
  • With weather shield, UL Type 3R enclosure type 2 enclosure without weather shield
  • All units have ground studs for use with non-metallic conduit
  • NEMA standard bus bar terminals, no special tools needed to make clearly marked connections Tap changing easily accomplished with jumpers
  • Aluminum windings for increased insulation life, cooler operation, lower losses
  • Extra large wiring compartment for easier installation and cooler case temperatures
  • Large permanently legible nameplates on front
  • UL Class 220 deg C insulation system, 150 deg C rise
  • 480 Delta Primary Volts; 480Y/277 Secondary Volts; May be used on a 4 wire 480Y/277 Volt Supply; 3Ø, 60Hz
