LEV 8480-W WH TVSS REC 4-IN-1 15A12

Manufacturer: Leviton Mfg Co | Catalog # 8480-W | Cooper Electric Part # 1813337
$150.45/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

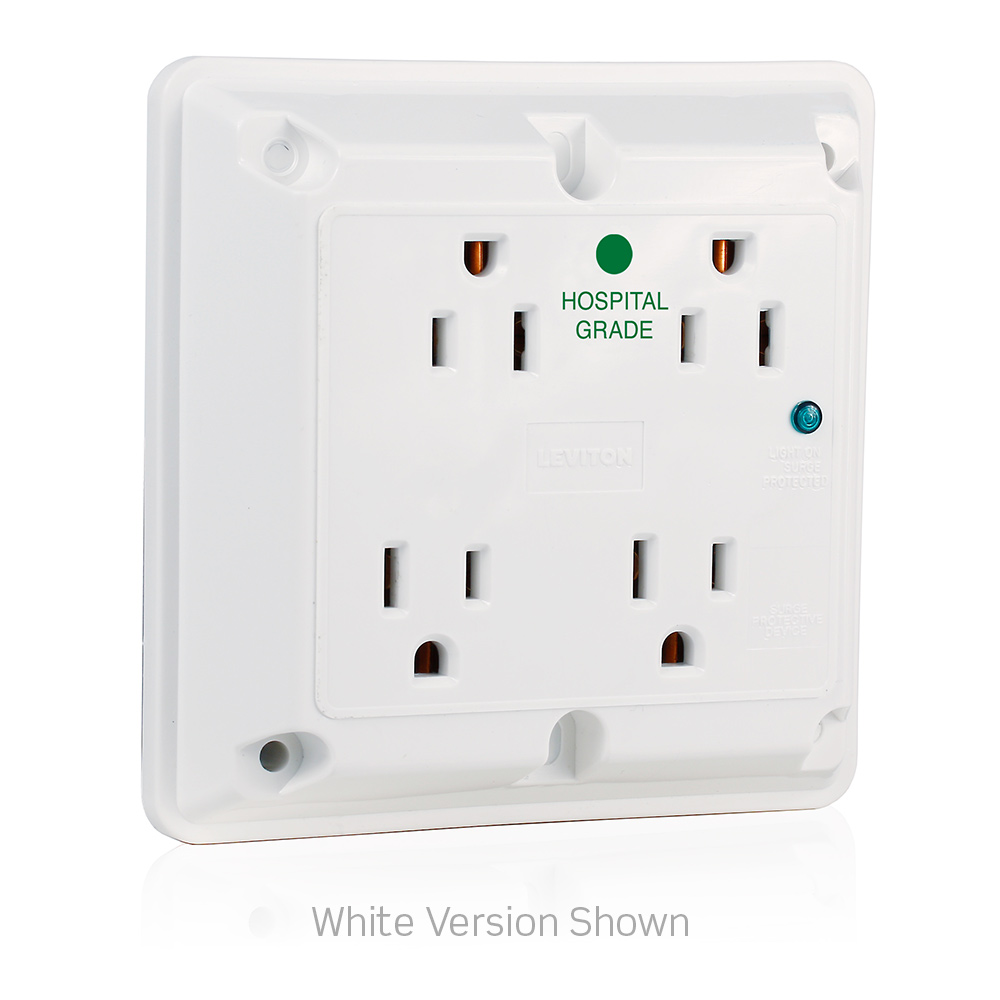

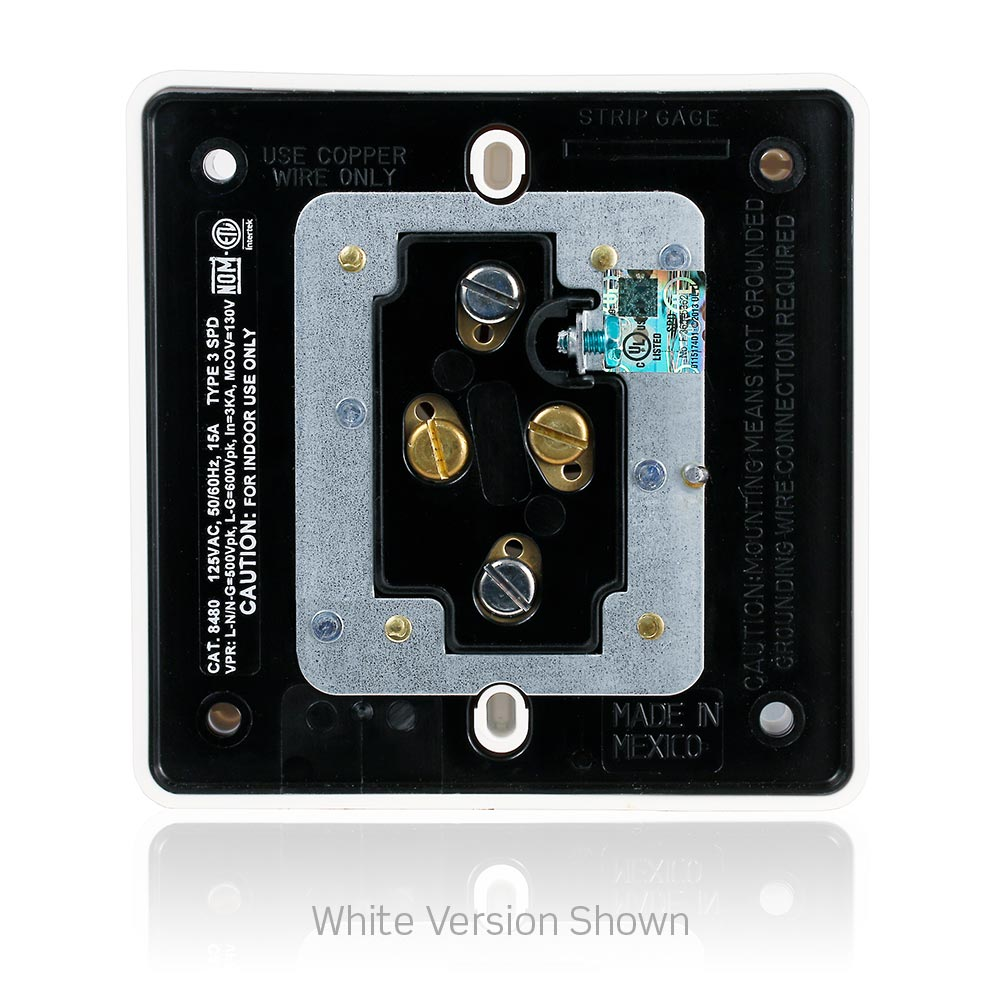

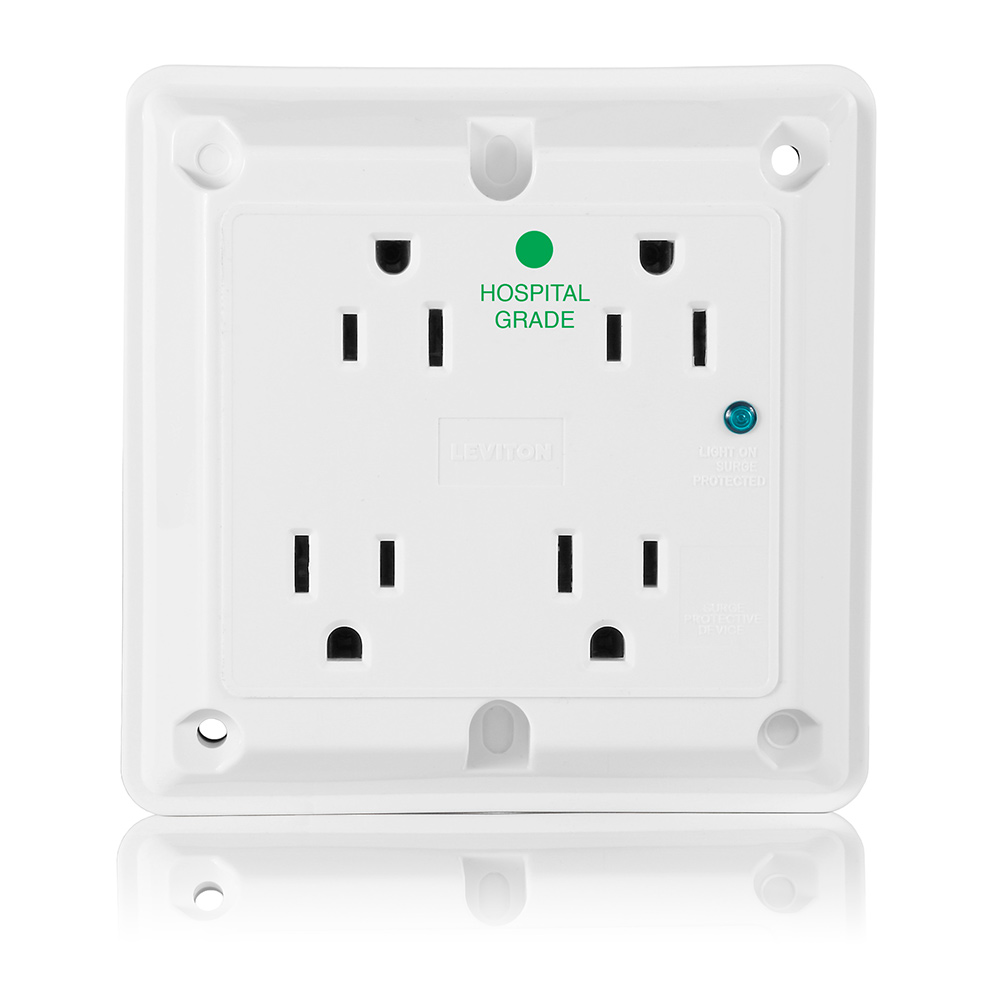

4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Hospital Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - White

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Nylon
Device Type
Quadruplex Receptacle
Dielectric
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Commercial
Grounding
Grounding
Indicator
Indicator Light
Material
Polycarbonate
Mounting Type
Box
NEMA
WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Short Circuit Current
5 kA
Size
4.50 W x 1.15 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Type 3, 4-in-1
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
4-in-1 Surge Receptacles

General Product Info

12-Digit UPC
078477851449
Color
White
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477851449
Product UPC
07847785144

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Ivory
NEMA
  • 5-15R
Features
  • Levitons Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Levitons outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
  • Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
  • Durable - Impact and chemical resistant nylon cover and base
  • Easy Installation - Termination anchor holes for easy conductor wiring
  • Reliable - 5-Year Limited Warranty
