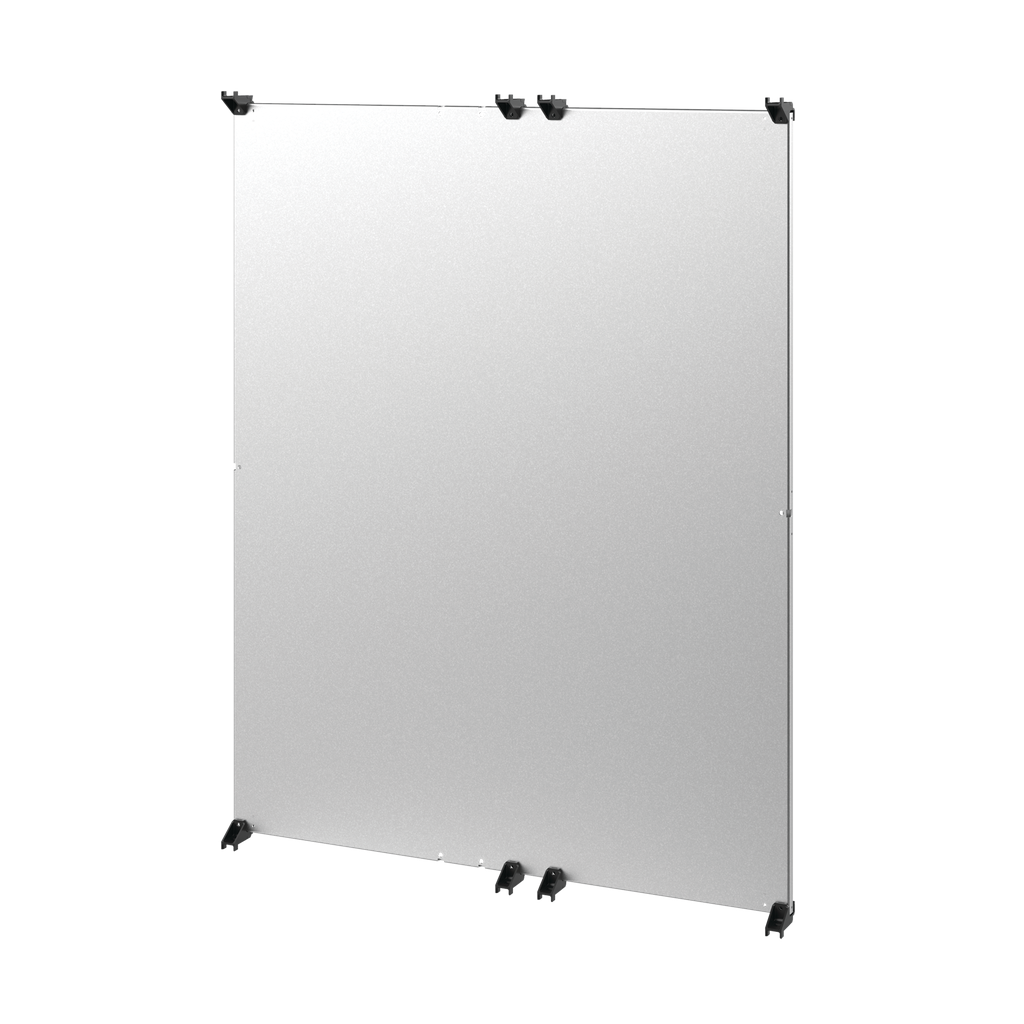

Product image for NVENT HOF P2PD2016G FULL SUBPANEL 2
Email

NVENT HOF P2PD2016G FULL SUBPANEL 2

Manufacturer: Hoffman | Catalog # P2PD2016G | Cooper Electric Part # 1802192
$1,482.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ProLine G2 Disconnect Components are used with ProLine G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths >1000 mm wide. These components are identical to the standard ProLine G2 components (i.e. ProLine G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).

Technical Information

Applications
For Arc Flash Safety, Controls and Drives
Material
Steel
Type
Non-Reversing

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510324773
Finish
Galvanized
GTiN
00783510324773
Product UPC
78351032477
Weight
197 lb

Dimensions

Height
3-1/2 Inch
Length
77-1/2 Inch
Thickness
3.4 mm
Width
62.50 in
Features
  • Disconnect specific mounting subpanels are required for frames greater than 1000mm in width; any width 1000mm or less uses a standard mounting subpanel
  • 10 gauge (3.0 mm) mild steel; conductive plated option only
  • Includes eight sets of EZ-Load Glide Blocks, BV-M6 and Hex Bolts for securing
  • Similar in construction and function to the standard mounting subpanel, but with 100mm offset mounting holes near the middle of the subpanel, due to the presence of the disconnect mullion door in the enclosure solution
  • Disconnect mounting subpanel comes standard with Disconnect Package
