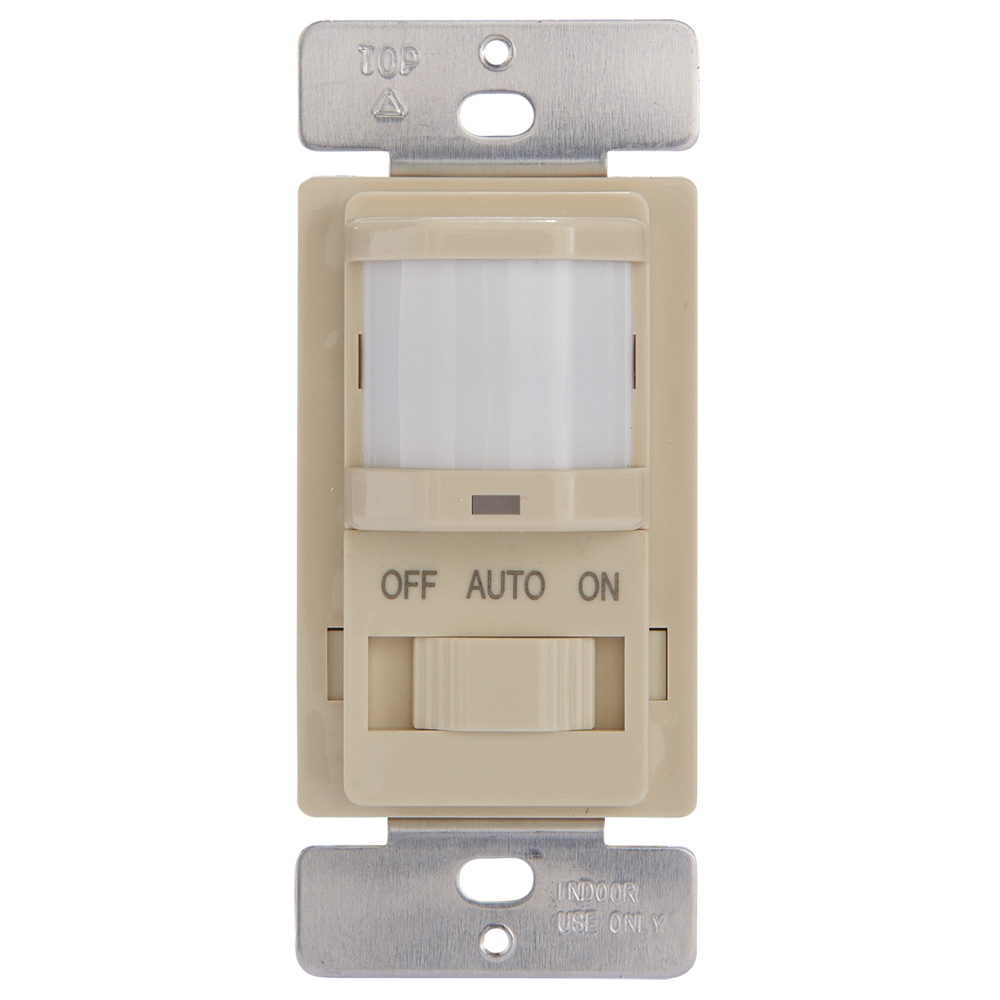

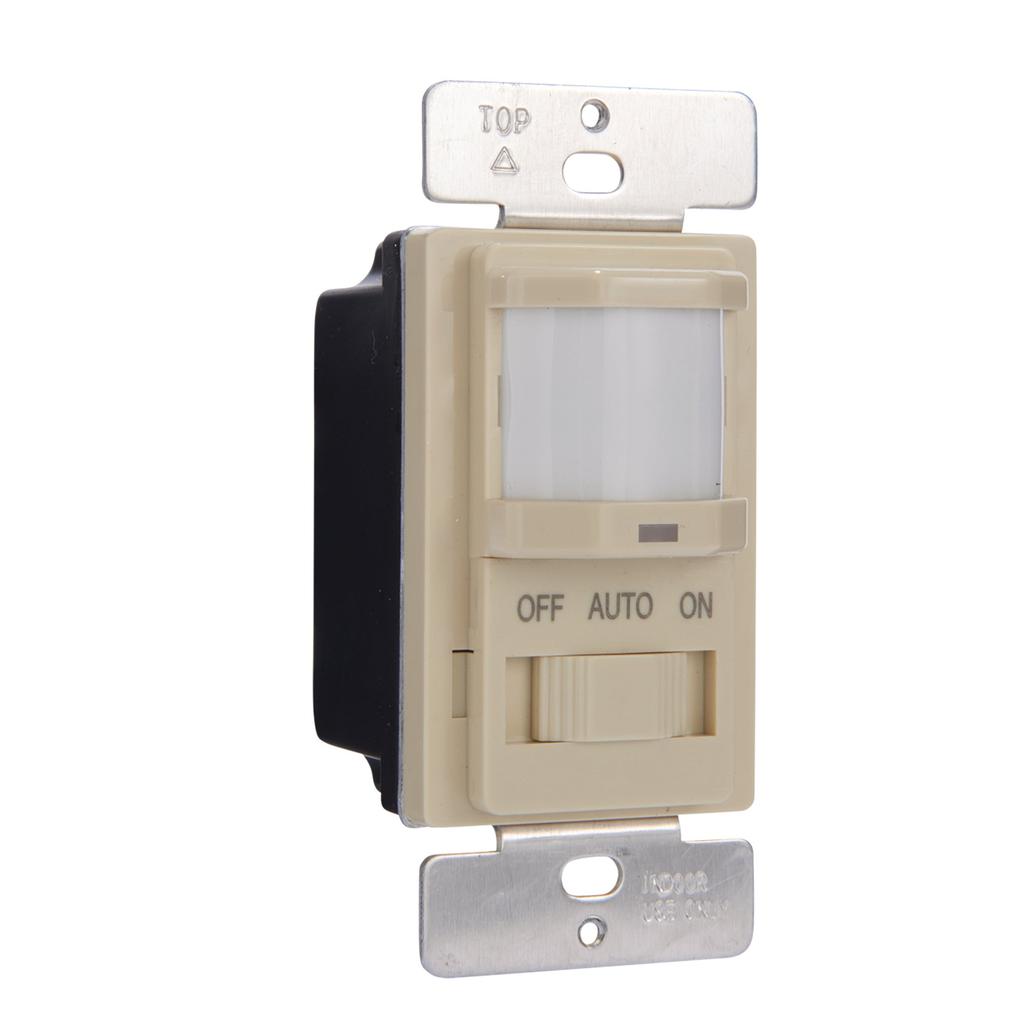

INT-MAT IOS-DSIMF-IV Residential In

Manufacturer: Intermatic, Inc | Catalog # IOS-DSIMF-IV | Cooper Electric Part # 1798801
$43.33/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.

Technical Information

Applications
Indoor Sensing Control
Input Voltage
120 V
Load Type
500 VA @ 120 VAC (Fluorescent),500 WTT @ 120 VAC (Tungsten)
Max Operating Temperature
131 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
In-Wall
Operating Cycles
20000
Operating Temperature
131 degrees F
Sensing Range
150 DEG 980 SQ-FT
Standard
CULus Listed,Title CA 20 Listed,UL/cUL Listed
Type
Electronic and Magnetic

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275125285
Color
Ivory
GTiN
00078275125285
Product UPC
07827512528
Weight
0.3 lb

Dimensions

Depth
1-5/8 Inch
Height
2-3/4 Inch
Warranty Length
2 yr
Width
1.438 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive Infrared (PIR) sensing for presence detection
  • Adjustable PIR sensitivity
  • Adjustable time delay 15 sec to 30 min
  • Adjustable ambient light sensor override
  • Coverage: 150, 980 ft2 with non-obstructed views
  • IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
  • 'No neutral' models offered for retrofit applications

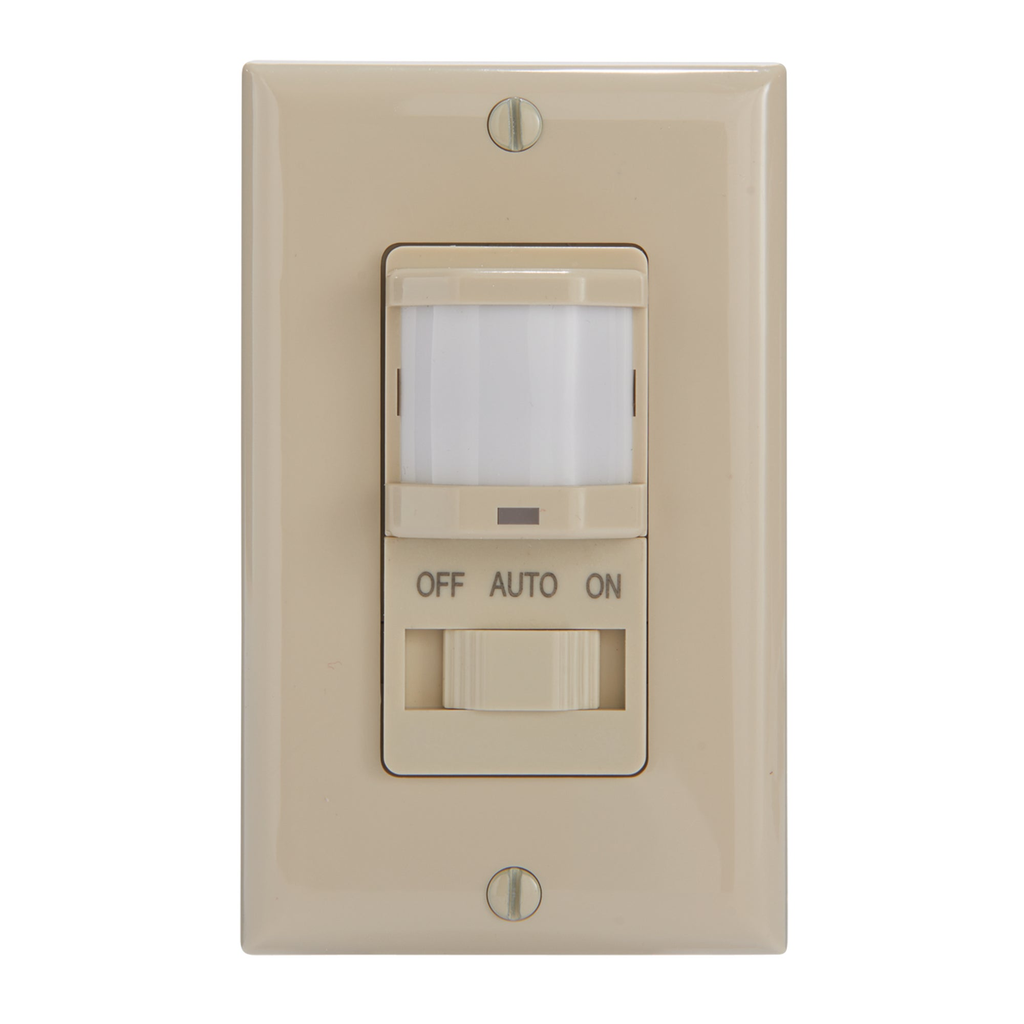

  • Fits standard decorator wall plate (included)
  • NA
