SQD NSYPLA15124G Floor standing pol

Manufacturer: Square-D / Schneider | Catalog # NSYPLA15124G | Cooper Electric Part # 1798169
$1,153.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

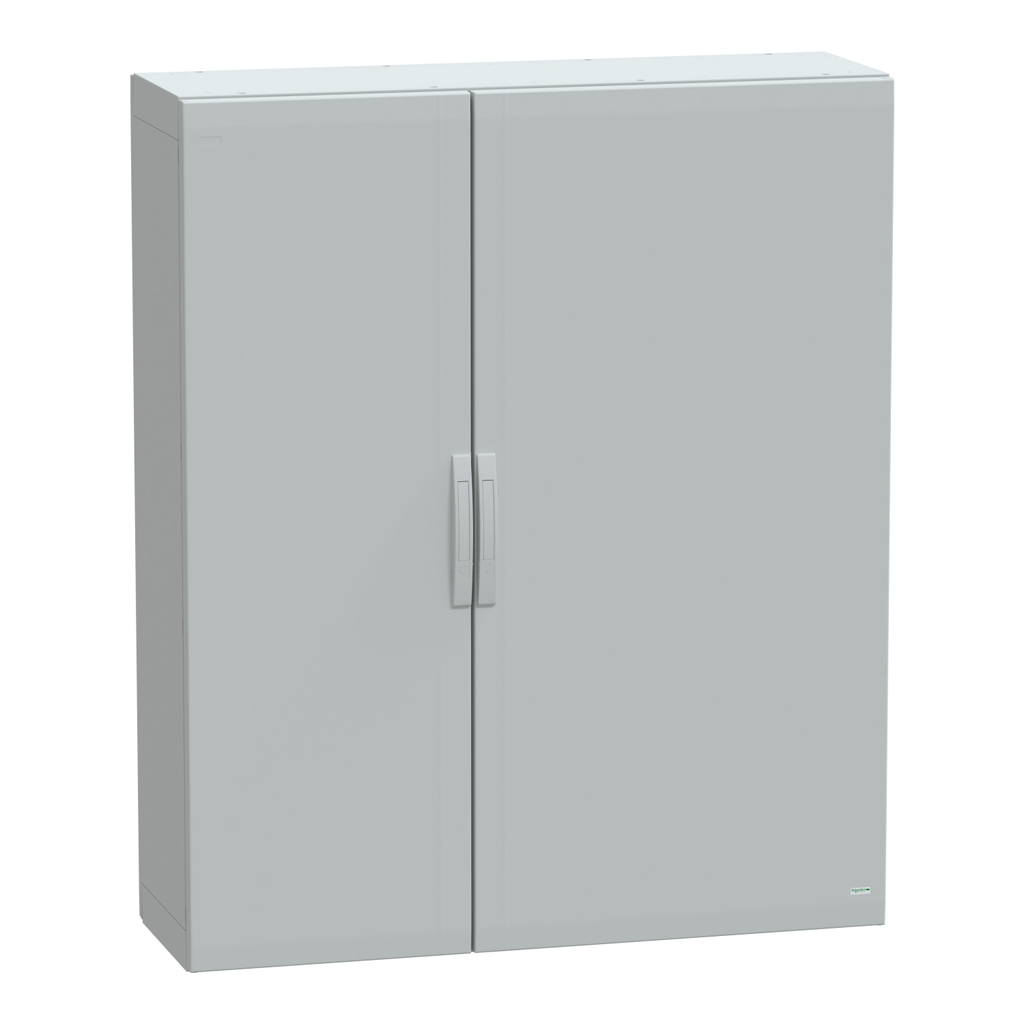

Thalassa PLA Floor standing polyester enclosure completely sealed, version PLA. 1500 x 1250 x 420 mm. Sealed top and bottom part assembled with side parts. 4 points door locking system with 5-mm double-bar locks. Polyester reinforced with fibreglass body. Protection IP 65, IK10, Grey RAL 7035.

Technical Information

Body Type
Sealed Top And Bottom Part Assembled With Side Parts
Door Type
Solid Front
Enclosure Type
Multi-purpose
Lock Type
5 mm
Material
Polyester Reinforced With Fibreglass
Number of Doors
2
Range
Thalassa
Standard
IEC 62208,UL 508 A
Storage Temperature
-35-90 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901949923
Color
Gray RAL 7035)
GTiN
03606480774737
Product UPC
78590194992

Dimensions

Enclosure Depth
420 mm
Enclosure Height
1500 mm
Enclosure Wdth
1250 mm
Height
1500 mm
Warranty Length
18 mth
Width
1250 mm

Certifications and Compliance

Certifications
DNV Marine,UL/cUL Listed,Veritas
Country of Origin
Spain
Compatible Products
  • NSYMUPLA154G
  • NSYUVPLA
  • NSYTJPLA124G
  • NSYFMPLA
  • NSYZA2124G
  • NSYZNPLA124G
  • NSYAZ4PLA
  • NSYSNLPLA
  • NSYINS61
  • NSYIN2452E1
  • NSYCBCMPLAG
  • NSYPMM1512
  • NSYPMB1512
  • NSYDPLA4
  • NSYTEX8
  • NSYTVR15
Cross Sell Products
  • NSYLAMLDF
  • NSYCVF85M230PF
  • NSYCAG125LPF
  • NSYCCOTHO
  • NSYCCOHYT230VID
  • NSYCR100WU2
  • LV847210
  • C16F3TM160
  • LV434001
  • LUB12
  • GV2L32
  • LC1D32M7
  • XB4BS8446
  • XB4BVB4
Spare Part Products
  • NSYAEDPLA004
  • NSYAEDPLA001
  • NSYASPLA002
  • NSYVPLA15MG
