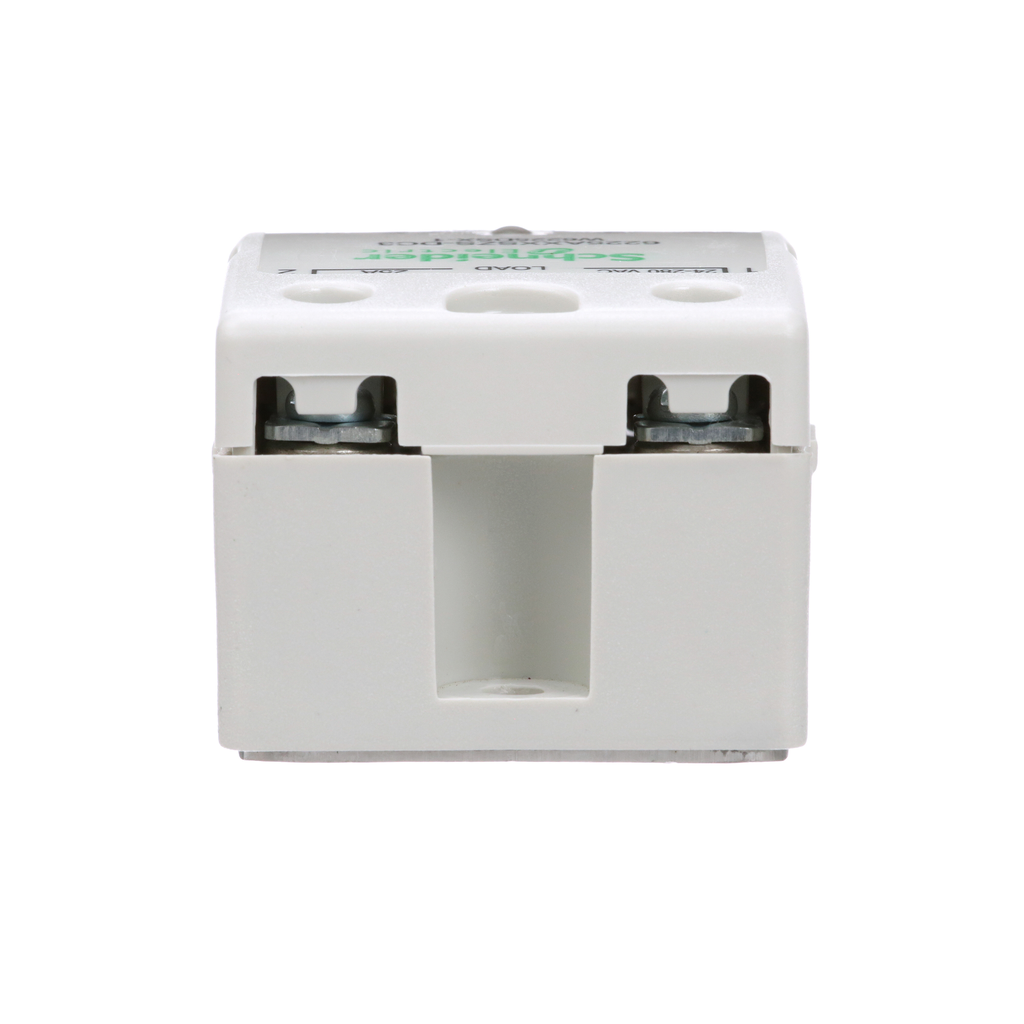

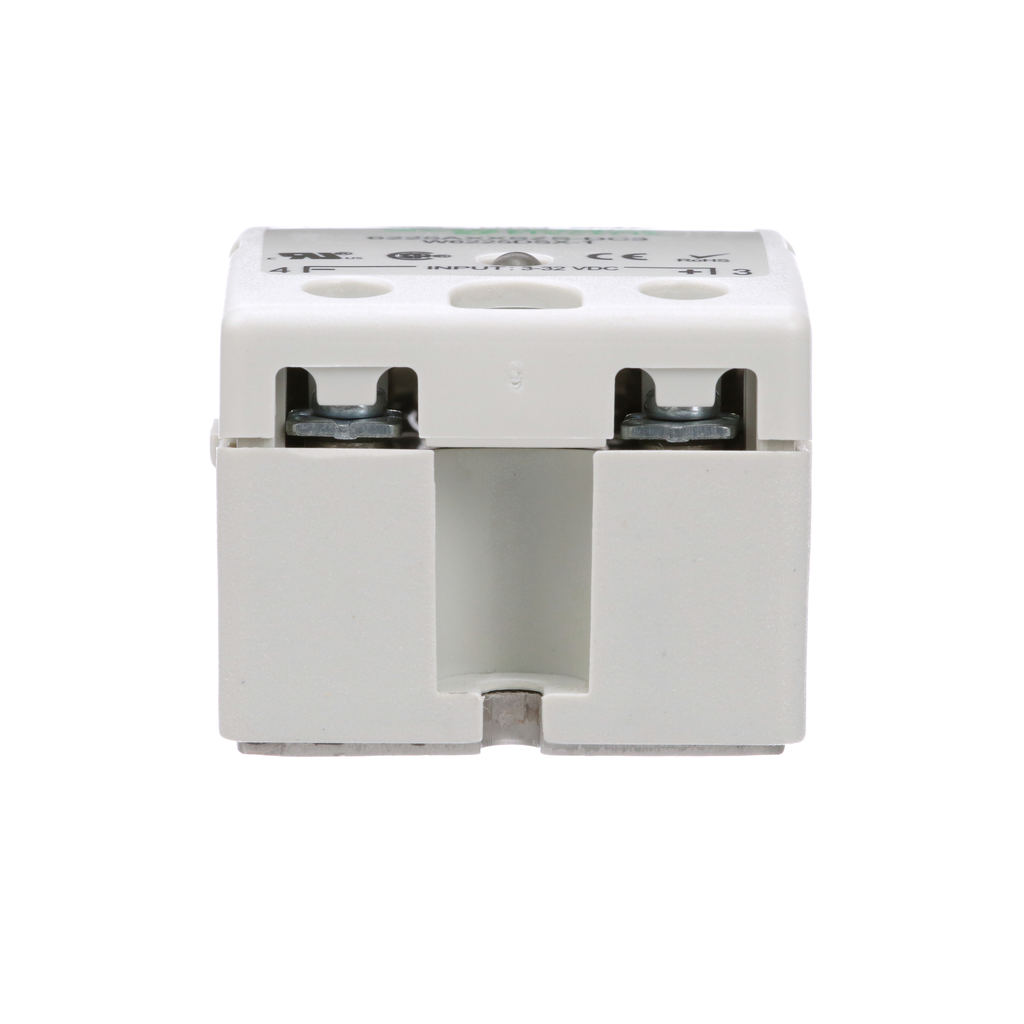

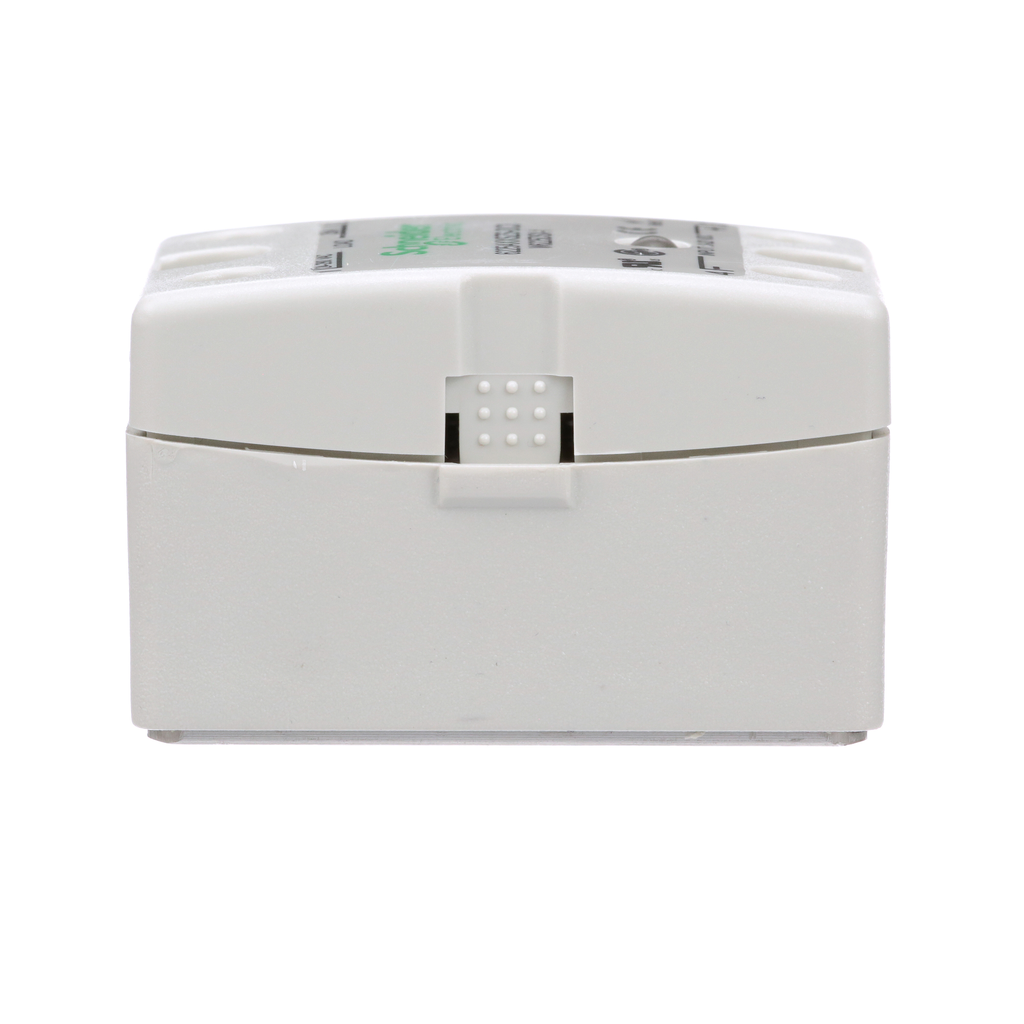

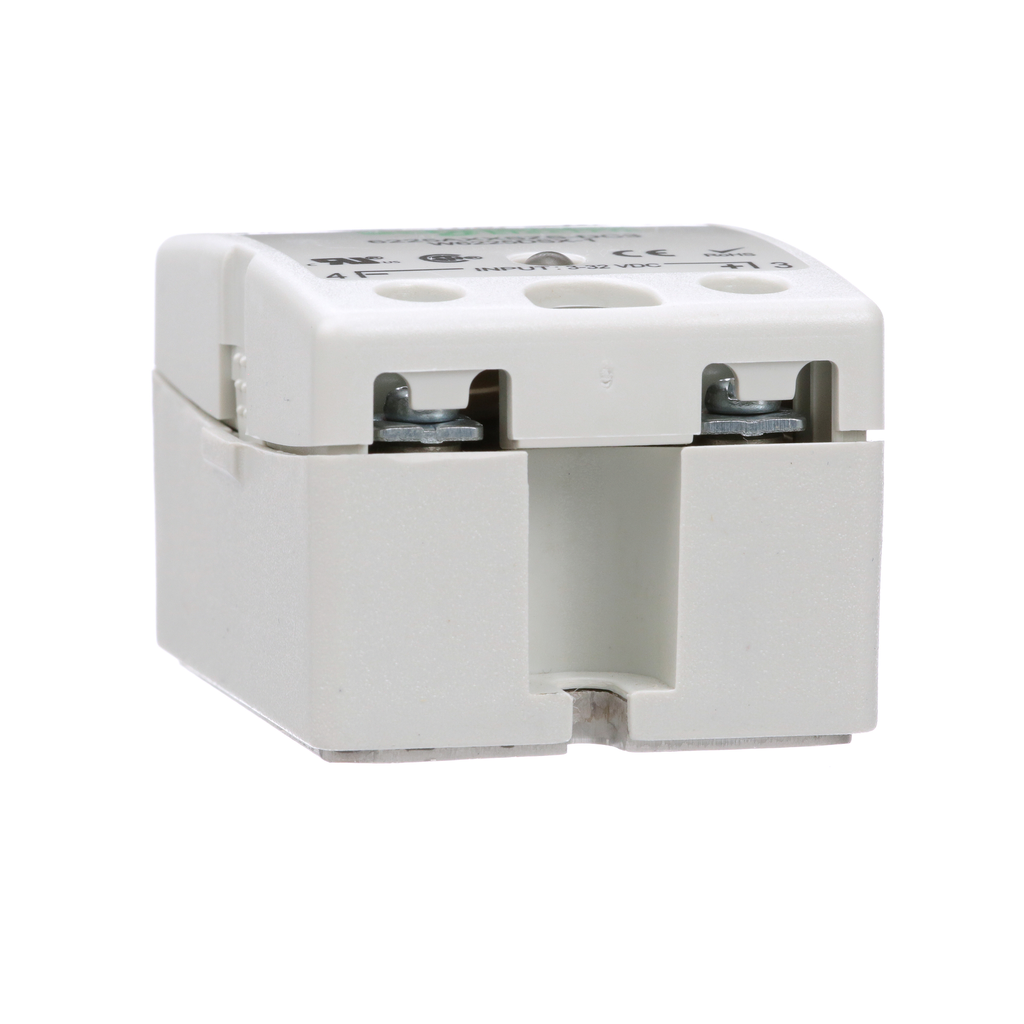

SQD 6225AXXSZS-DC3 Relay, SE Relays

Manufacturer: Square-D / Schneider | Catalog # 6225AXXSZSDC3 | Cooper Electric Part # 1796991
$18.74 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
The SE Relays 6000 series , solid-state relays offer an energy-efficient SCR AC Zero cross current switching device with input voltage range as 3VDC to 32VDC . Switching contacts configuration performed as SPST-NO with rated current 25A and output voltage 240VAC to 280VAC Finger protected screw terminals help prevent an operator from touching live circuits.

Technical Information

Net Weight
86.5 g
Number of Phases
1 Phase
Operating Temperature
-40176 degrees F (-4080 degrees C)
Output Voltage
24-280 V
Storage Temperature
-40-125 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901154129
GTiN
03606480277313
Product UPC
78590115412
Weight
3.05 oz

Dimensions

Depth
2.3 in
Height
1.39 in
Width
1.85 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Screw Type
  • M3.5
  • M6
Connections Terminals
  • input screw clamp terminal, 1
  • output screw clamp terminals, 1
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=6225AXXSZS-DC3_3D&p_File_name=6225AXXSZS-DC3_3D.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=6225AXXSZS-DC3_3D&p_File_name=6225AXXSZS-DC3-SchneiderElectricMagnecraft-2DBottomView-03-10-2020.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=6225AXXSZS-DC3_3D&p_File_name=6225AXXSZS-DC3-SchneiderElectricMagnecraft-2DFrontView-03-10-2020.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=6225AXXSZS-DC3_3D&p_File_name=6225AXXSZS-DC3_3D.dxf
Power Factor
  • 0.5 with maximum load
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Response Time
  • 8.33 ms (turn-on, turn-off)
Maximum Leakage Current
  • 10 mA at off-state
UC Control Circuit Voltage
  • 3...32 V DC
DV DT
  • 500 V/s off-state at maximum rated voltage
Maximum Output Current
  • 25 A AC
Accessories
  • SSR-HS-1
  • SSR-TP-1
Maximum I T For Fusing
  • 250 A².s 8.3 ms
Solid State Output Type
  • SCR output
  • zero voltage switching
Input Current Limits
  • 5-40 mA at 5 V DC typical
Accessory Products
  • SSR-HS-1
  • SSR-TP-1
Dielectric Strength
  • 4000 V between input and ground
  • 4000 V between output and ground
  • 4000 V between input and output
Tightening Torque
  • 10 lb.in for input
  • 20 lb.in for output
Local Signalling
  • 1 LED (green) for input status
Maximum Voltage Drop
  • <1.6 V on-state AC
Surge Current
  • 250 A 16.6 ms
Output Voltage
  • 24...280 V AC
