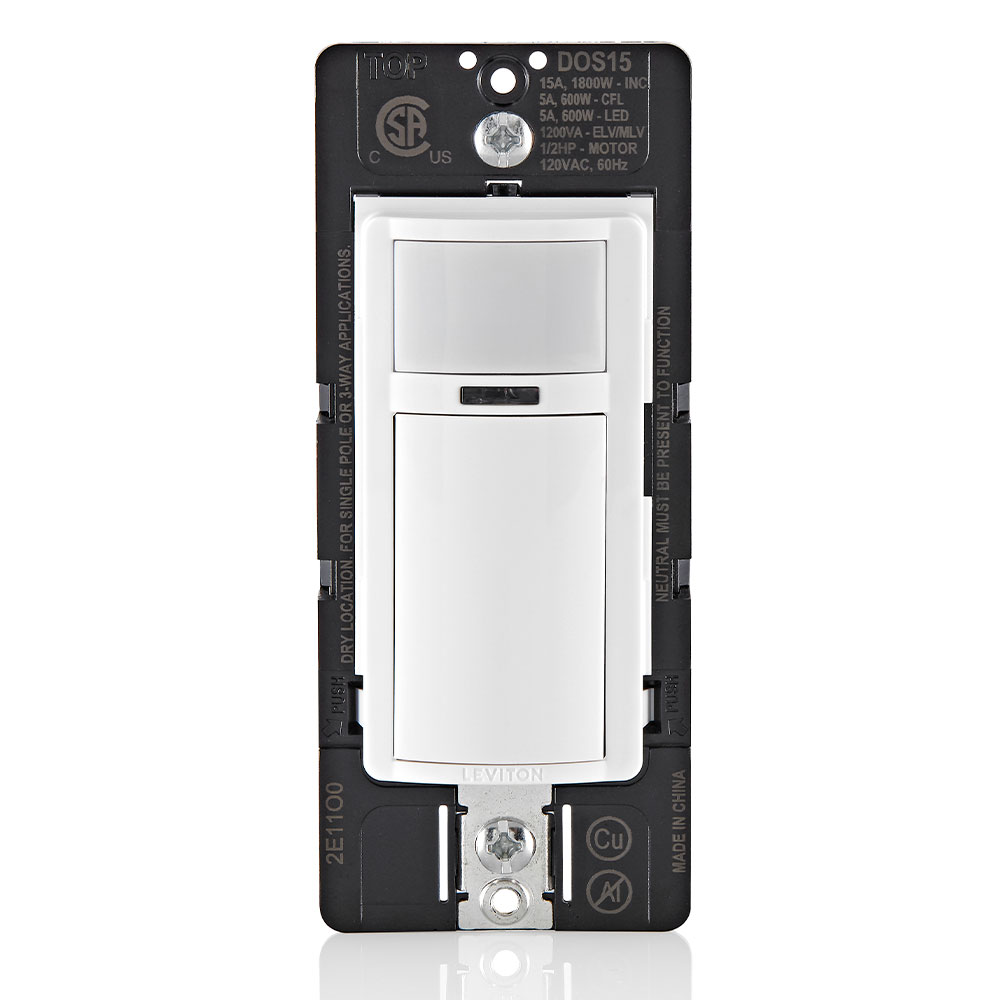

Product image for LEV DOS15-1LZ WH/IV/LA OCC SENSOR 1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

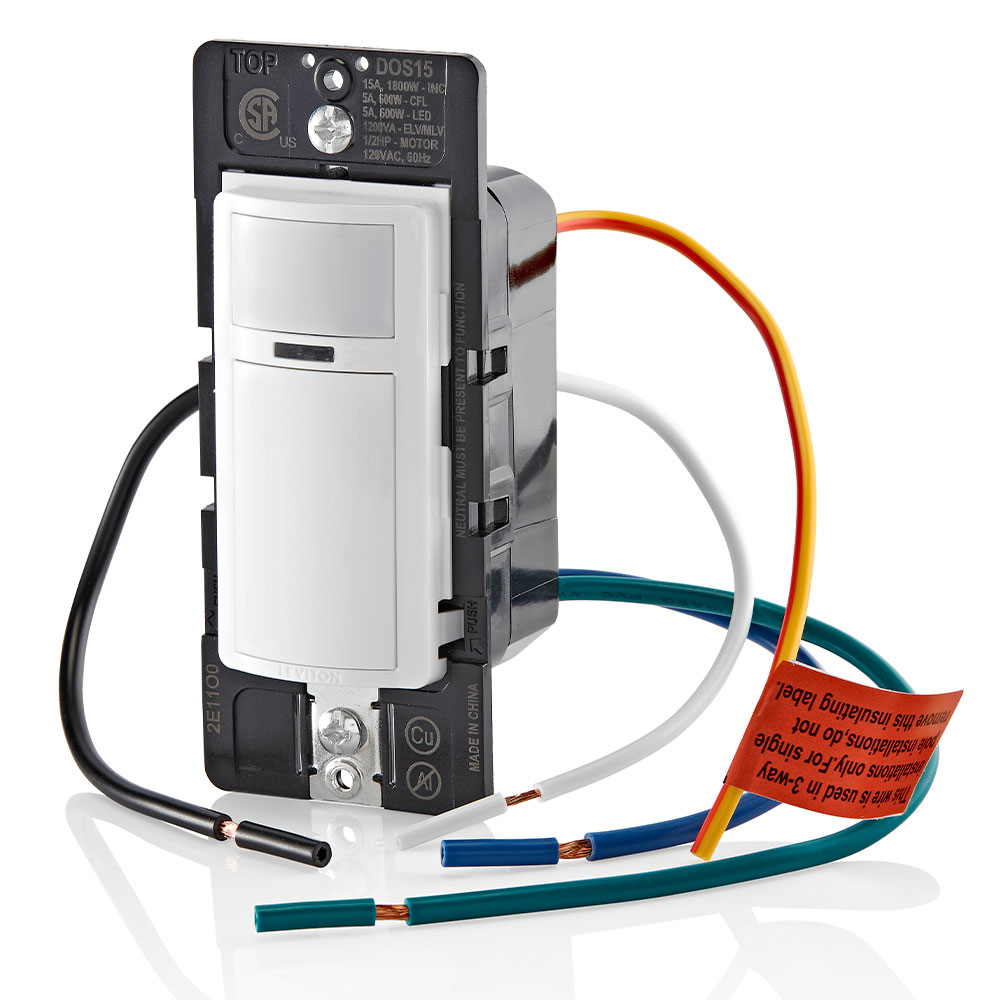

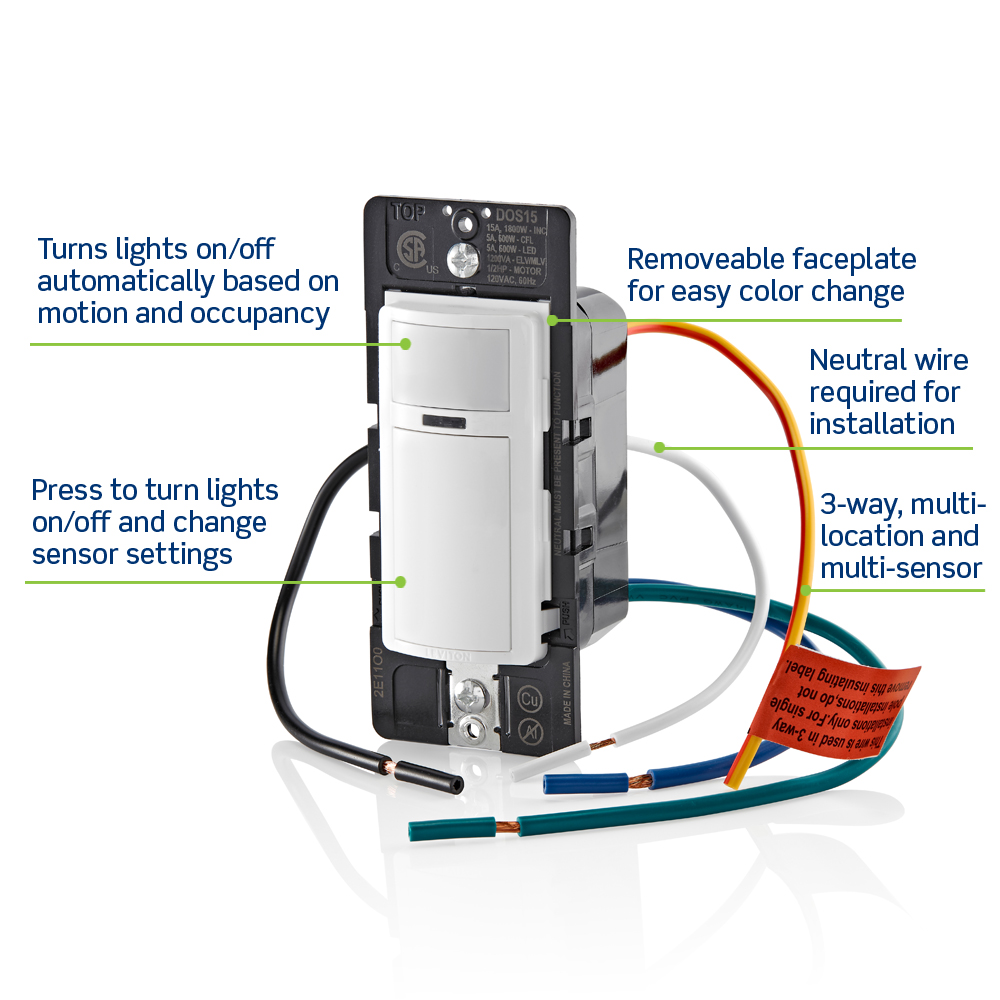

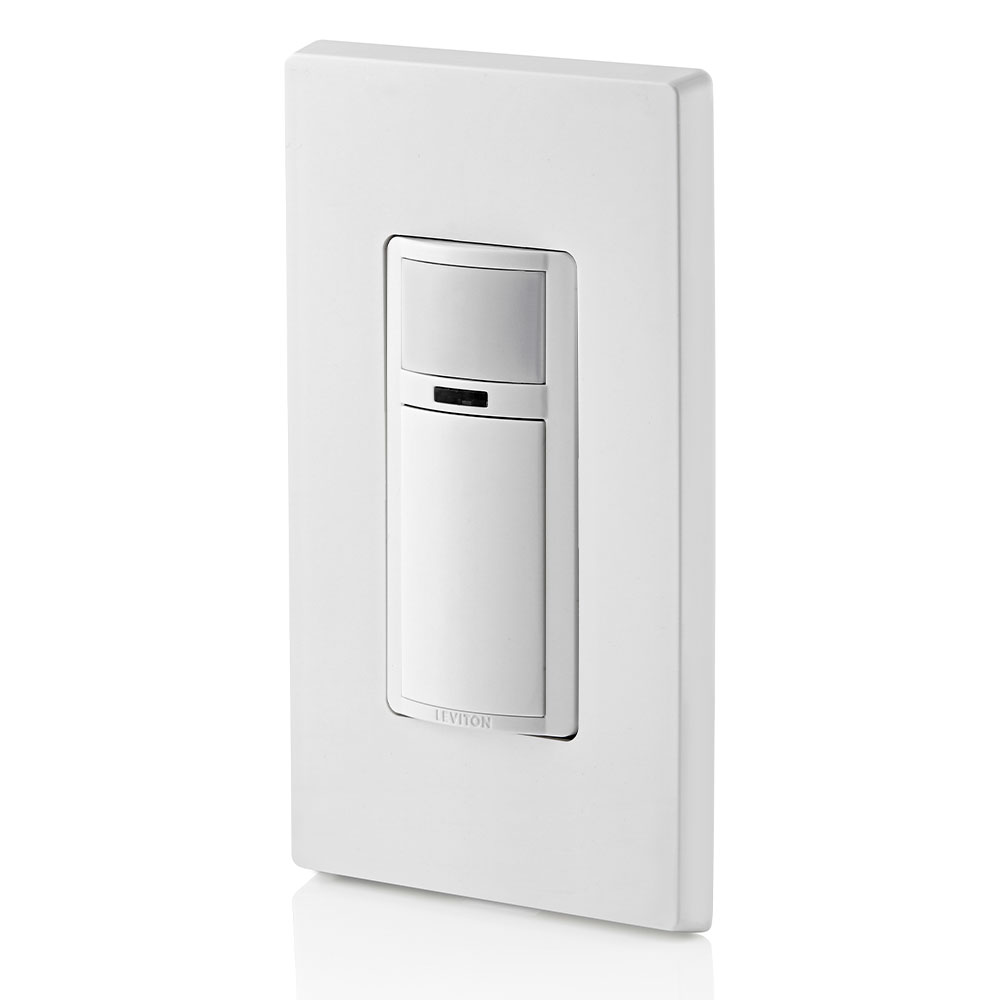

LEV DOS15-1LZ WH/IV/LA OCC SENSOR 1

Manufacturer: Leviton Mfg Co | Catalog # DOS15-1LZ | Cooper Electric Part # 1796714
$65.57/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Decora Occupancy Motion Sensor Light Switch. 180. PIR automatic-on, automatic-off, single pole, 3-way or multi-location (multi-way) when used with DD0SR switch companions or multi-sensor with two DOS15 sensors, 600W LED/CFL, 1800W Inc/Halogen 1200VA ELV/MLV/FL, 1/2HP Motor, 15A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC . White with ivory and light almond faceplates included

Technical Information

Grade
Residential
LED Color
Green,Red
Mounting Type
Surface
Number of Poles
3 Pole

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477471272
Color
White
GTiN
00078477471272
Product UPC
07847747127

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
  • Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Florescent or Motor loads

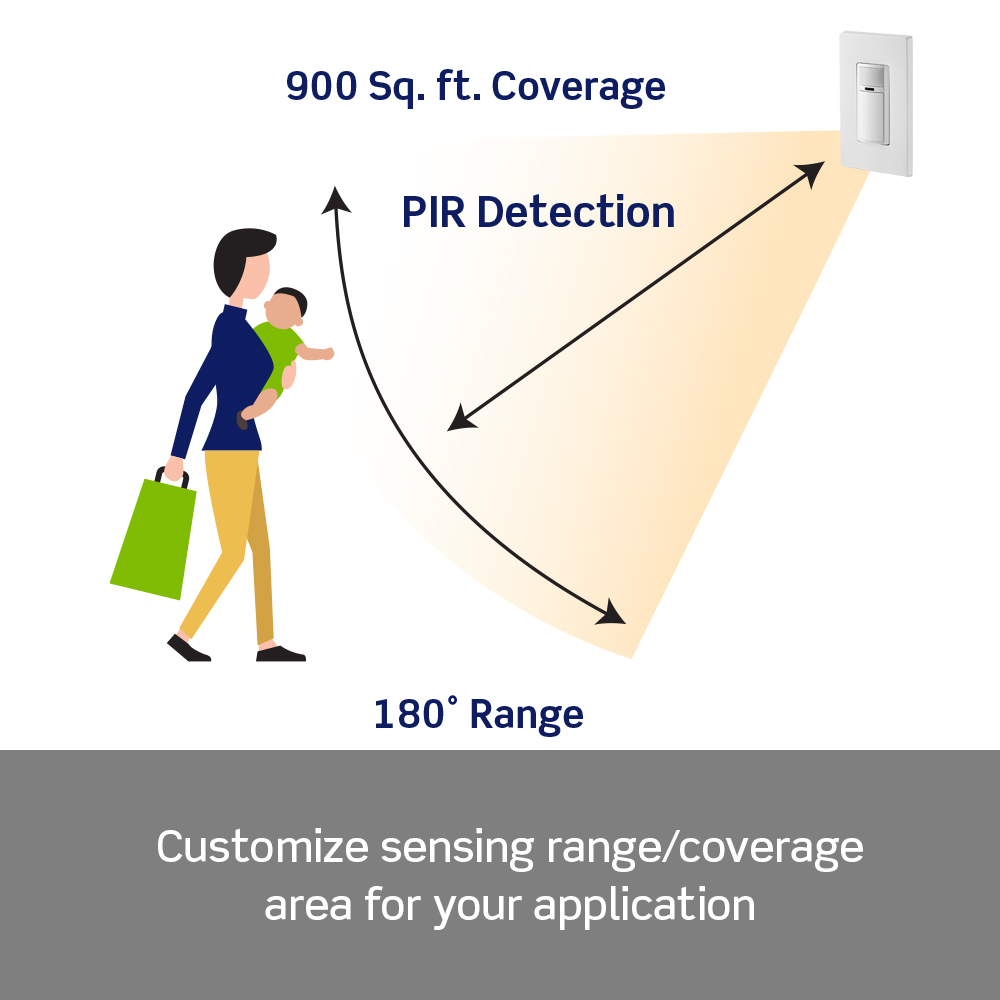

  • Provides 180° Field-of-View, 900 sq. ft. of coverage
  • Shallow design easily fits in the wallbox and can replace single pole switch
  • Leaded terminals for easier installation
  • Requires a neutral wire for installation
  • Single pole, 3-way or multi-location (multi-way) when used with up to four (4) DD0SR-DLZ and/or up to nine (9) DD0SR-01Z switch companions
  • Multi-sensor with two DOS15 sensors
  • Program settings without removing the wallplate or faceplate
  • Low profile design blends in with walls for a discreet appearance
  • Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
  • Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
  • Adjustable Range (sensitivity) to fit various coverage areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC
  • Color change faceplates DOSKT are available in white, ivory, light almond, gray, black, brown
  • Five-Year Limited warranty
  • CONVENIENT Automatically turns lights on/off based on motion. Provides 180° Field-of-View, 900 sq. ft. of coverage
  • EASY TO INSTALL Shallow design easily fits in the wallbox, a neutral wire is required for installation
  • FLEXIBLE Multi-sensor application where two sensors are needed for the coverage area, such as an L-shaped room
  • VERSATILE For higher wattage fixtures and exhaust fans. Can be set for vacancy (manual-on) switching
  • STYLISH Easily change the color using DOSKT faceplates available in white, ivory, light almond, gray, black and brown
Patents
  • CA2708330
  • MX315382
  • US11264189
  • US11815868
  • US7924155
  • US8981299
