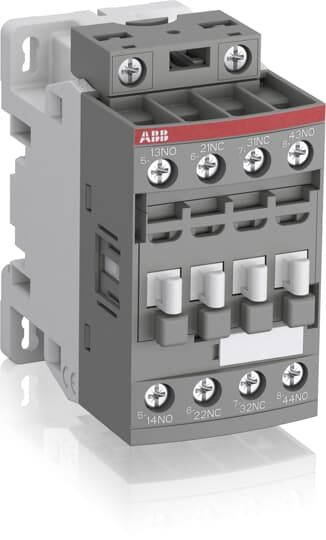

ABB NF22E-14 RELAY,2NO,2NC,250-500V

Manufacturer: ABB Low Voltage | Catalog # NF22E-14 | Cooper Electric Part # 1794561
$164.13/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. NF contactor relays have built-in surge protection and do not require additional surge suppressors. Poles: 4-pole contactor relays (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically" symbol on the contactor relay side) Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.

Technical Information

Amperage
2 Amp at 500/690 VAC, 3 Amp at 400/440 VAC, 4 Amp at 220/240 VAC, 6 Amp at 24/127 VAC, 0.1 Amp at 600 VDC, 0.13 Amp at 500 VDC, 0.15 Amp at 400 VDC, 0.27 Amp at 220/250 VDC, 0.55 Amp at 110/125 VDC, 1 Amp at 72 VDC, 2.8 Amp at 48 VDC, 6 Amp at 24 VDC
Applications
For Switching Auxiliary and Control Circuits
Contact Configuration
2 NO - 2 NC
Number of Poles
4 Pole
Operating Cycles
6000 Mechanical
Standard
CSA C22.2 N14,EN 60947-5-1,IEC 60947-5-1,UL 508
Temperature Rating
-40 to 70 degrees C
Terminal Type
Screw Terminals
Voltage
690 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)

General Product Info

12-Digit UPC
804325555982
GTiN
00804325555982
