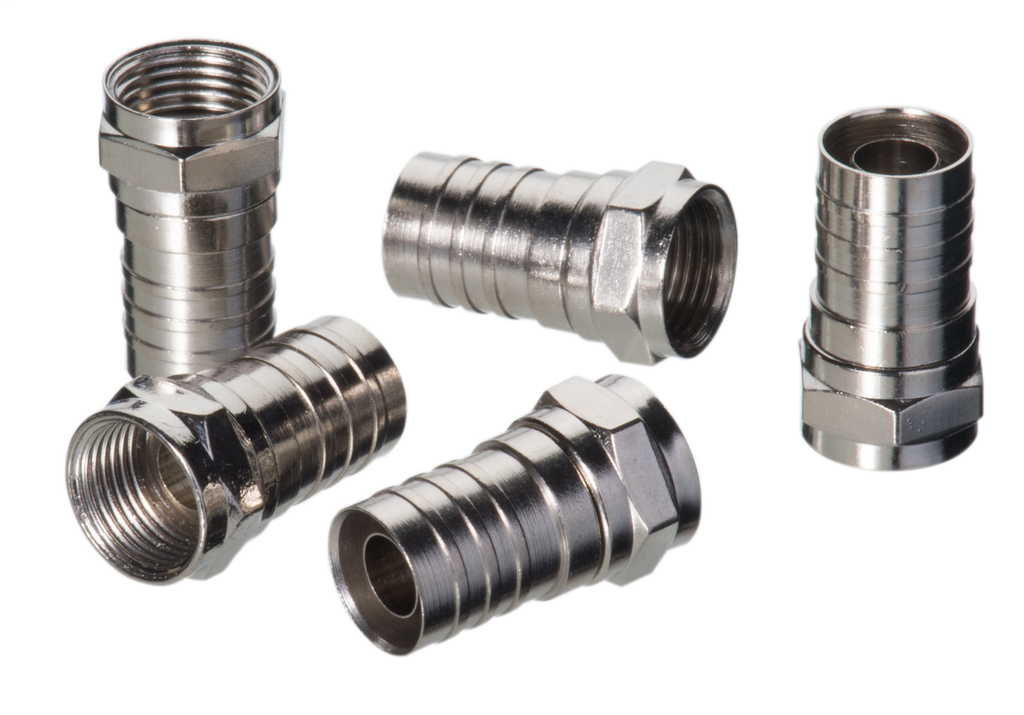

Product image for Ideal 85-057 F-Type Coax Connector, RG6 Crimp-On Quad Shld 10/Pack
Email

Ideal 85-057 F-Type Coax Connector, RG6 Crimp-On Quad Shld 10/Pack

Manufacturer: Ideal Industries | Catalog # 85-057 | Cooper Electric Part # 17917
$209.51/c (100 ea)
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
IDEAL, Coaxial Connector, F-Type, Connection: Quad Shield, Material: Brass, Coaxial Cable Type: RG-6 Quad Shield

Technical Information

Applications
For Threaded Couplings And Cable Conductors As Contacts For CATV And Other UHF Applications
Connection Type
Quad Shield
Material
Brass
TC Connection
Quad Shield
Type
F-Type

Manufacturer Information

Brand
Ideal Industries

General Product Info

12-Digit UPC
783250850570
GTiN
00783250850570
Product UPC
78325085057

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Features
  • Accepts RG-6 Quad coax cables
  • Designed for use in indoor video applications
  • Hex crimp cable retention requires .350 hex crimp
  • Industry standard 1/4 x 1/4 cable preparation
  • Nickel plated brass bodies
  • Designed for 75? coaxial cables
  • 7/16 nut diameter with 3/8-32 thread
  • 1) Prepare RG-6 Quad coax with a 1/4 x 1/4 strip, and fold back the braiding.
  • 2) Slide the connector on to the cable until the white dielectric is flush with the bottom of the nut.
  • 3) Place connector in IDEAL crimp tool with .350 hex and terminate. Crimp only the back sleeve portion of the connector not the nut or shoulder area of connector.
  • 4) Attach connector to device.
