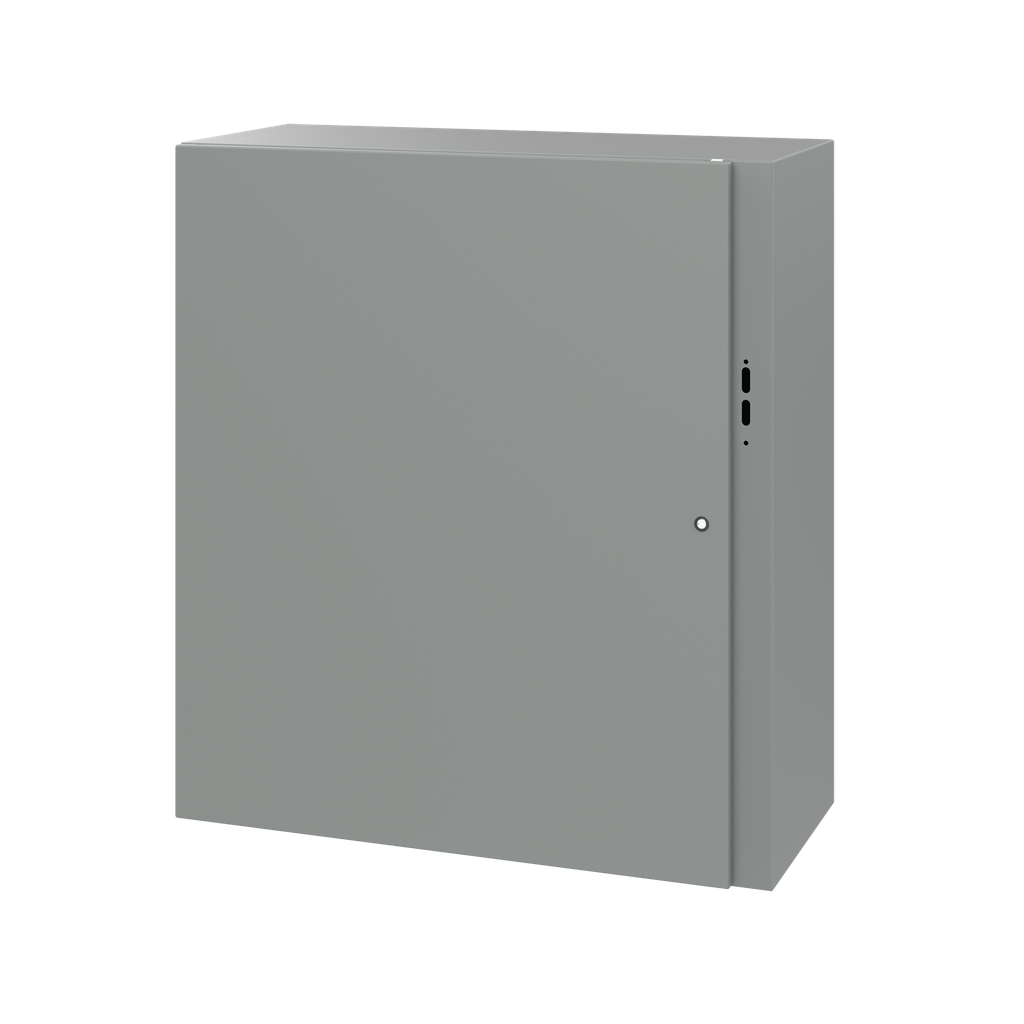

Product image for NVENT HOF CDSC423816 CONCEPT Discon
Email

NVENT HOF CDSC423816 CONCEPT Discon

Manufacturer: Hoffman | Catalog # CDSC423816 | Cooper Electric Part # 1791659
$4,072.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Concept Disconnect Enclosures provide an extra level of visual ON or OFF indication. This Concept Disconnect Enclosure Type 4, CDSC423816 item measures 42.00x38.00x16.00 inches with a material of Steel colored Gray.

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Power Distribution
Body Gauge
14
Body Thickness
1.9 mm
Color Coding
ANSI 61
Door Gauge
14
Material
Steel
Size
42.00x38.00x16.00 in
Type
Mild Steel Wall Mounted Industrial Disconnect Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510295523
Color
Gray
Finish
Powder Coated
GTiN
00783510295523
Product UPC
78351029552
Weight
95 lb

Dimensions

Depth
16 Inch
Height
18 Inch
Length
46 Inch
Width
38 in
Features
  • Seams continuously welded and ground smooth
  • External-formed 90-degree body flange channels away liquids
  • Bonding provision on door; grounding stud on body
  • Holes in body for mounting disconnect operating handle and operating mechanism
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting for optional external mounting brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Corner-formed doors
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Seamless foam-in-place gasket
  • Door alignment device on doors wider than 30 inches (762mm)
  • Concept-style latching system interlocks with the disconnect handle for added safety
  • Unique integrated door handle with tool-to-open feature and padlocking option
  • Self-grounding latch system with double seal
  • Four hinges on 60-inch-high enclosures
  • Simple easy-to-remove and install hinge pins with captivation clip
  • High-torque threadless studs and fasteners on door
  • V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
