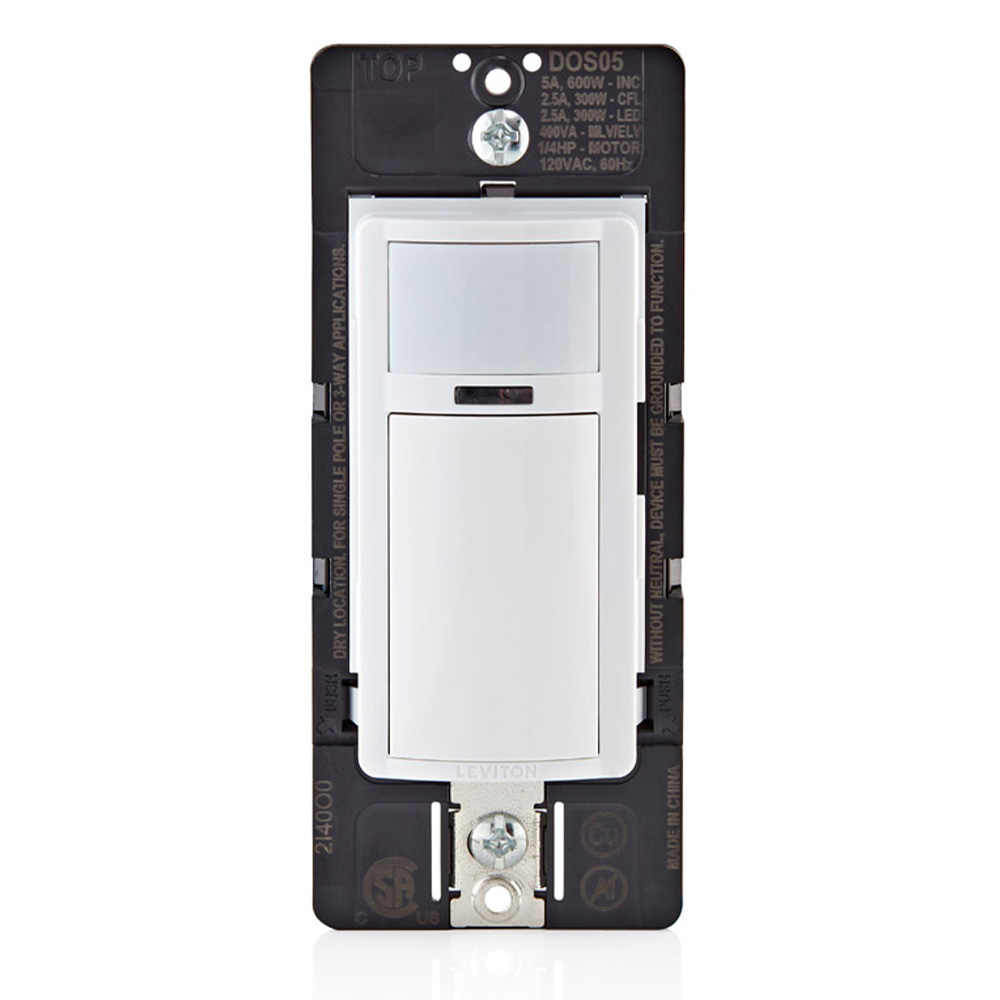

LEV DOS05-1LZ WH/IV/LA OCC SENSOR 6

Manufacturer: Leviton Mfg Co | Catalog # DOS05-1LZ | Cooper Electric Part # 1789988
$117.53/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Decora Occupancy Motion Sensor Light Switch. 180. PIR automatic-on wallbox sensor, single pole or 3-way when used with a single pole or 3-way switch, 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage, . HP Motor, 5A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC . White with ivory and light almond faceplates included

Technical Information

Amperage
5 Amp
Applications
Ideal for Pantries, Closets, Laundry Rooms and Basements
Grade
Residential
LED Color
Green,Red
Lens Type
Green and Red LED
Mounting Type
Wall
Number of Poles
3 Pole
Response Time
1 min, 5 min, 10 min, 20 min
Sensor Type
Passive Infrared
Type
Auto-On/Off
Voltage
120 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477572603
Color
White/Ivory/Light Almond
GTiN
00078477572603
Product UPC
07847757260

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Ideal for pantries, closets, laundry rooms and basements
  • Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
  • Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage or Motor loads
  • Provides 180° Field-of-View, 900 sq. ft. of coverage

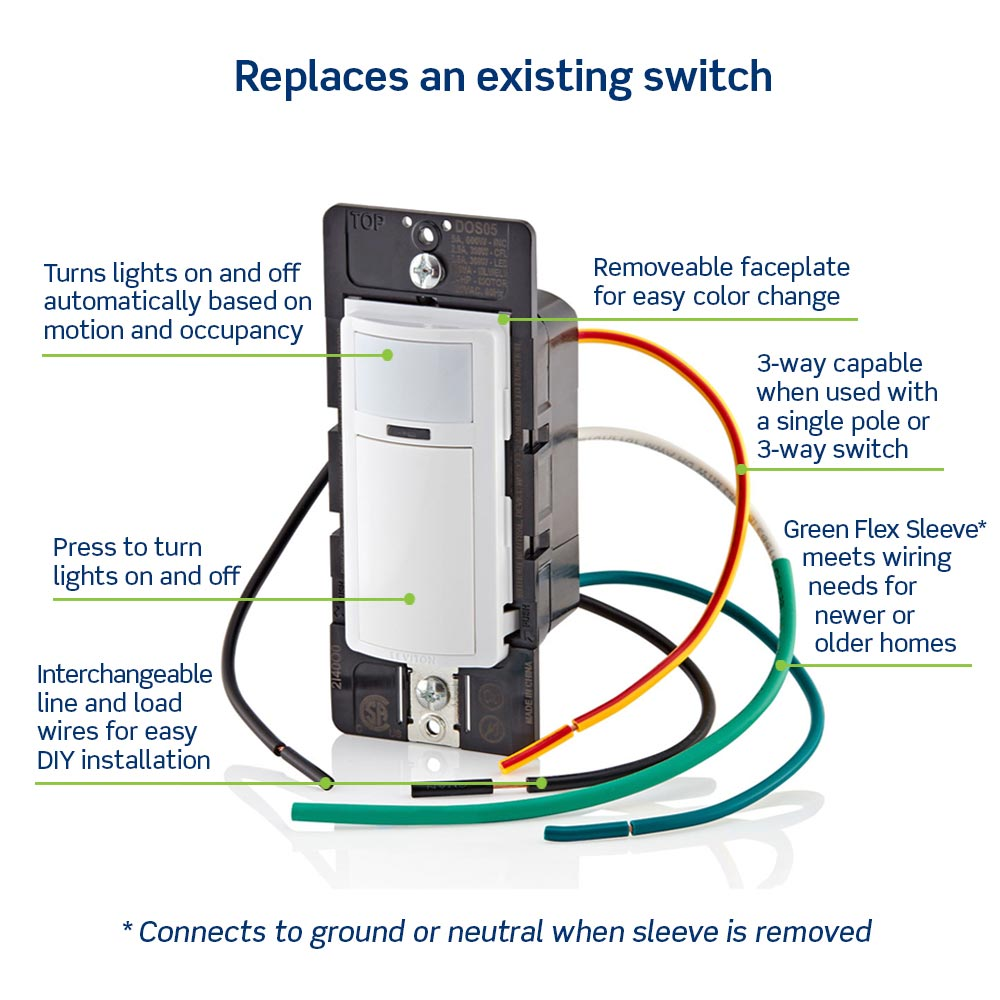

  • Shallow design easily fits in the wallbox and can replace single pole switch
  • Leaded terminals for easier installation
  • Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
  • Interchangeable line and load wires
  • Single pole or 3-way when used with a single pole or 3-way switch
  • Program settings without removing the wallplate or faceplate
  • Low profile design blends in with walls for a discreet appearance
  • Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
  • Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
  • Adjustable Range (sensitivity) to fit various coverage areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC

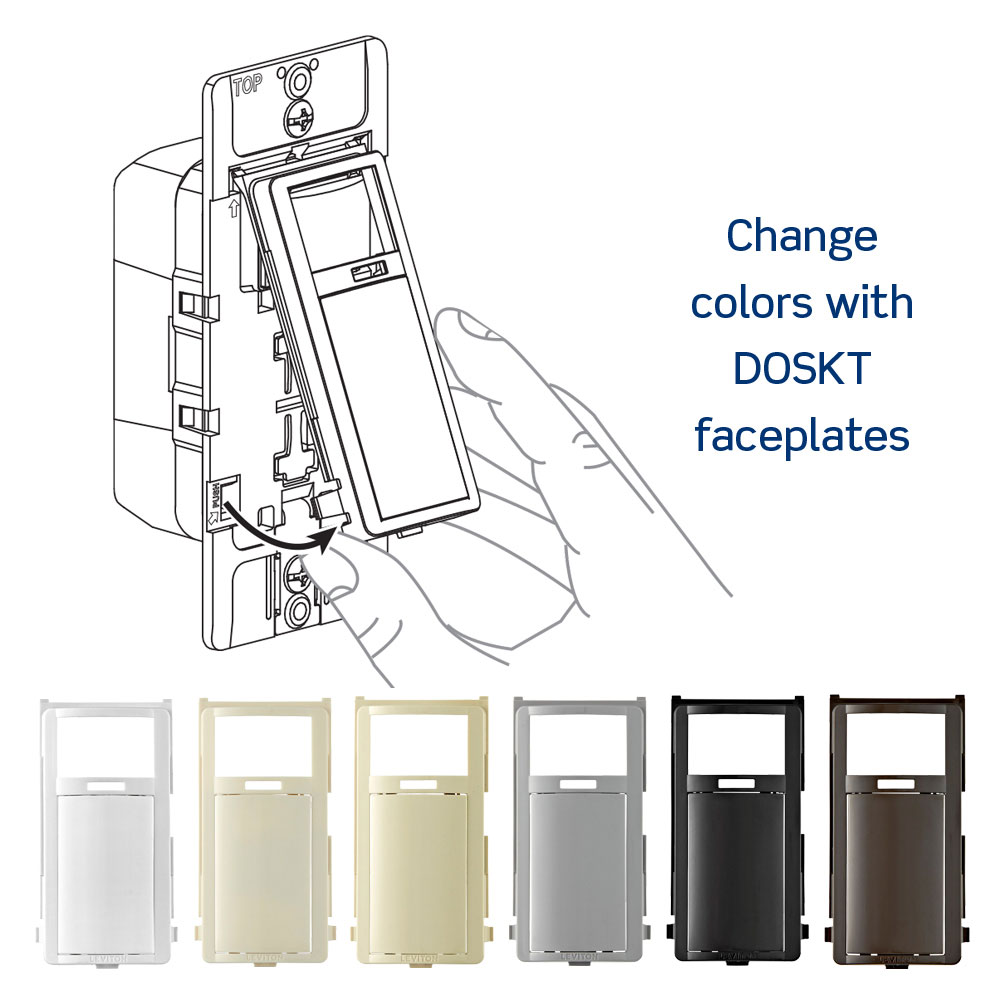

  • Color change faceplates DOSKT are available in white, ivory, light almond, gray, black, brown
  • Five-Year Limited warranty
  • CONVENIENT Automatically turns lights on/off based on motion. Provides 180° Field-of-View, 900 sq. ft. of coverage
  • EASY TO INSTALL Shallow design easily fits in the wallbox
  • FLEXIBLE Install with or w/out a neutral wire, ground required
  • VERSATILE Can be set for vacancy (manual-on) switching
  • PRACTICAL Perfect for garage, pantry, closet, basement and laundry room
  • STYLISH Easily change the color using DOSKT faceplates available in white, ivory, light almond, gray, black and brown
Patents
  • CA2708330
  • MX315382
  • US11264189
  • US11815868
  • US7924155
  • US8981299
