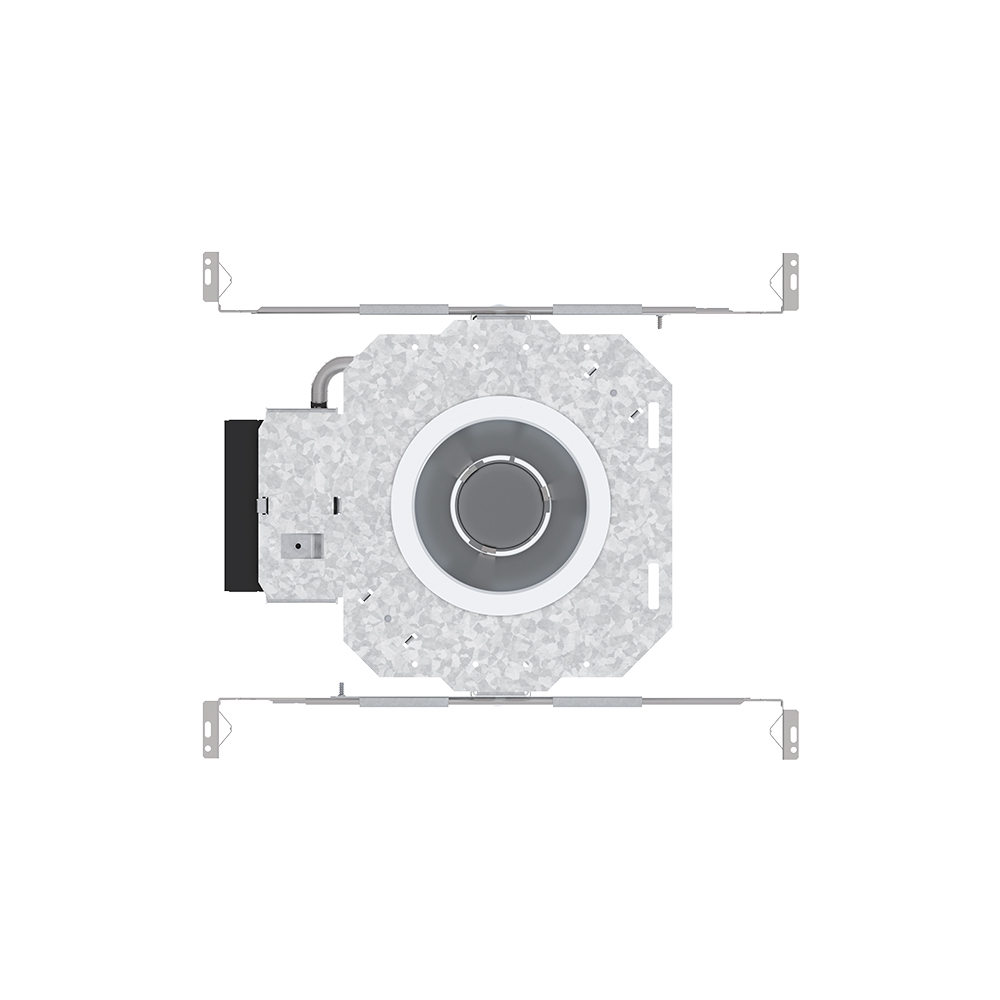

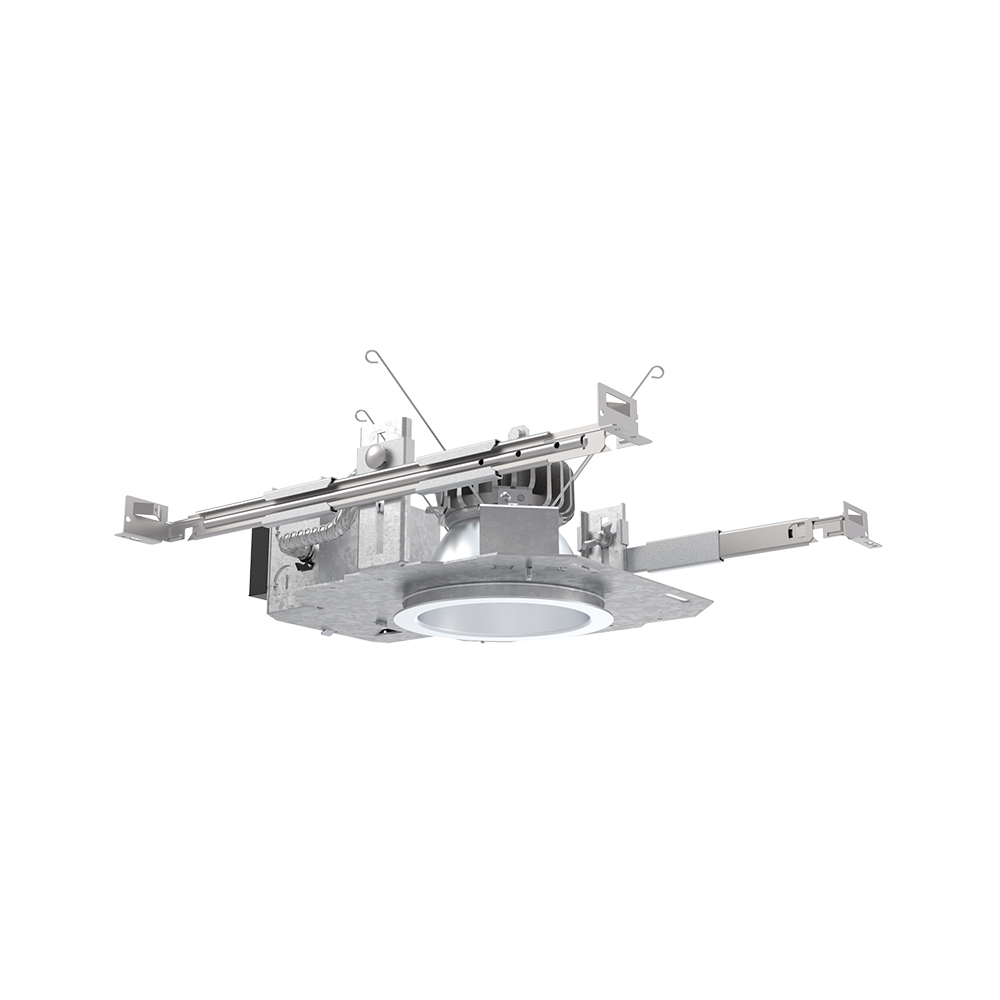

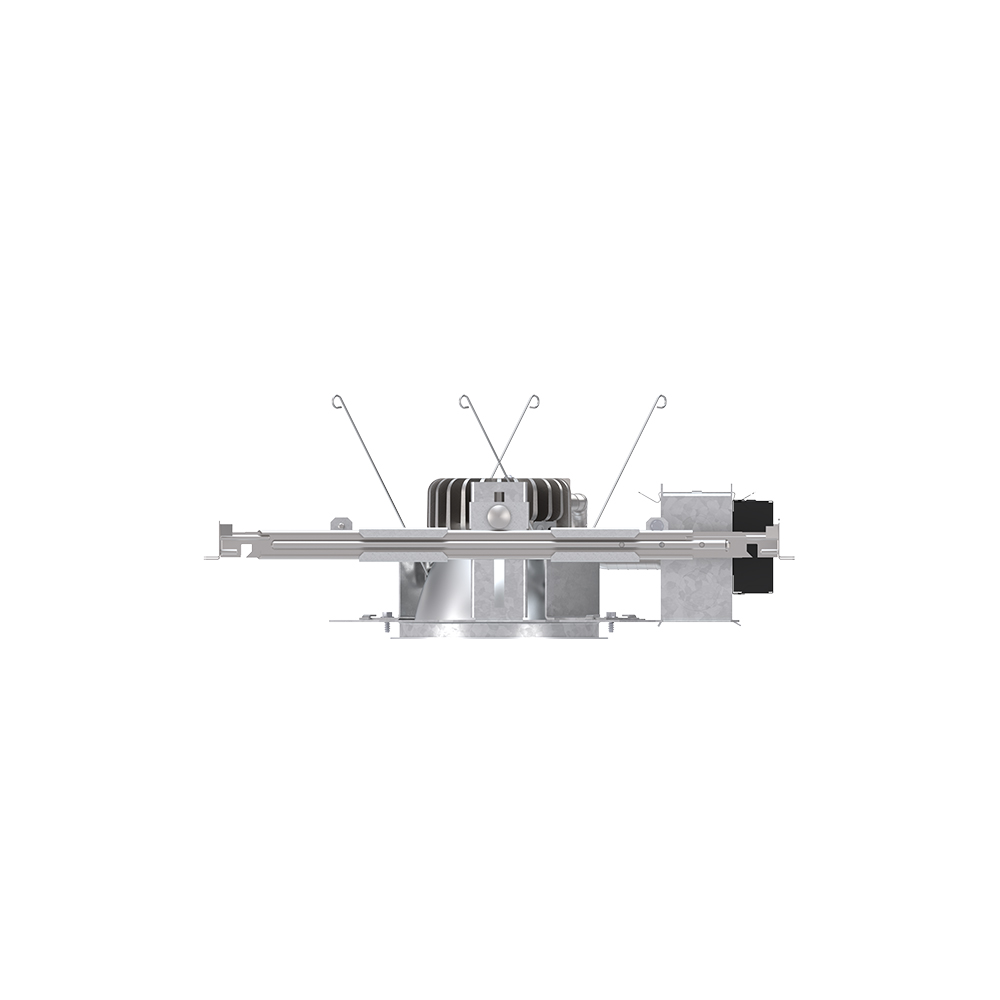

LITH LDN4 ALO2 SWW1 MVOLT UGZ HSG L

Manufacturer: Lithonia Lighting | Catalog # LDN4-ALO2-SWW1-MVOLT-UGZ-HSG | Cooper Electric Part # 1788004
$165.82/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
LDN 4" round, Adjustable lumen output 1000/1500/2000LM, Switchable CCT 3000k-3500k-4000k-5000k, 120/277 V, Universal dimming to 1%, Housing

Technical Information

Aperture Size
4 in
Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail
Color Rendering Index
80
Color Temperature
Variable K
Correlated Color Temp
0 K
Dimmable?
Yes
Lamp Type
LED
Lens Material
Polycarbonate
Lumens
1,000 Lumen,1500 Lumen,2000 Lumen,Switchable Lumen
Material
Steel
Mounting Type
Recessed
Number of Lamps
1
Power Source
Hardwired
Standard
CULENERGY STAR,Low UGR
Type
Housing
Voltage
120 Volt
Wattage
25.6 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194994881117
Construction
New Construction
Environment
Indoor
Environmental Conditions
Indoor
GTiN
00194994881117
Product Type
Housing
Product UPC
19499488111
Shape
Round
Weight
35.214 lb

Dimensions

Height
6-1/8 Inch
Length
9-3/4 Inch
Warranty Length
5 yr
Width
10.63 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • TECHNOLOGY: LDN Switchable offers switchable CCTs (3000K-3500K-4000K-5000K) and switchable lumens (ranging from 1000-2000LM) as well as a combo driver capable of handling phase dimming (120V) and 0-10V (MVOLT).
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life, and up to 114 LPW
  • DIMMING: MVOLT 120-277V, 0-10V and phase dimming (120V) in an all-in one driver for 10% dimming
  • RATINGS: Energy Star, Wet Location, Damp Location, Title 20
  • VOLTAGE: MVOLT 120-277V, 0-10V and phase dimming
  • HOURS OF LIFE: L80 at 60,000 hours
  • INSTALLATION: Traditional mounting frame allows for a quick installation in new construction applications
  • BATTERY: Emergency battery pack not included, available for purchase separately. Refer to spec sheet for field installed battery pack options.
  • WARRANTY: 5-year limited warranty
Application
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Retail
Mounting
  • Recessed
Standard
  • cULLow UGR
