SQUARED M9LC320 surge arrester cart

Manufacturer: Square-D / Schneider | Catalog # M9LC320 | Cooper Electric Part # 1786023
$54.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

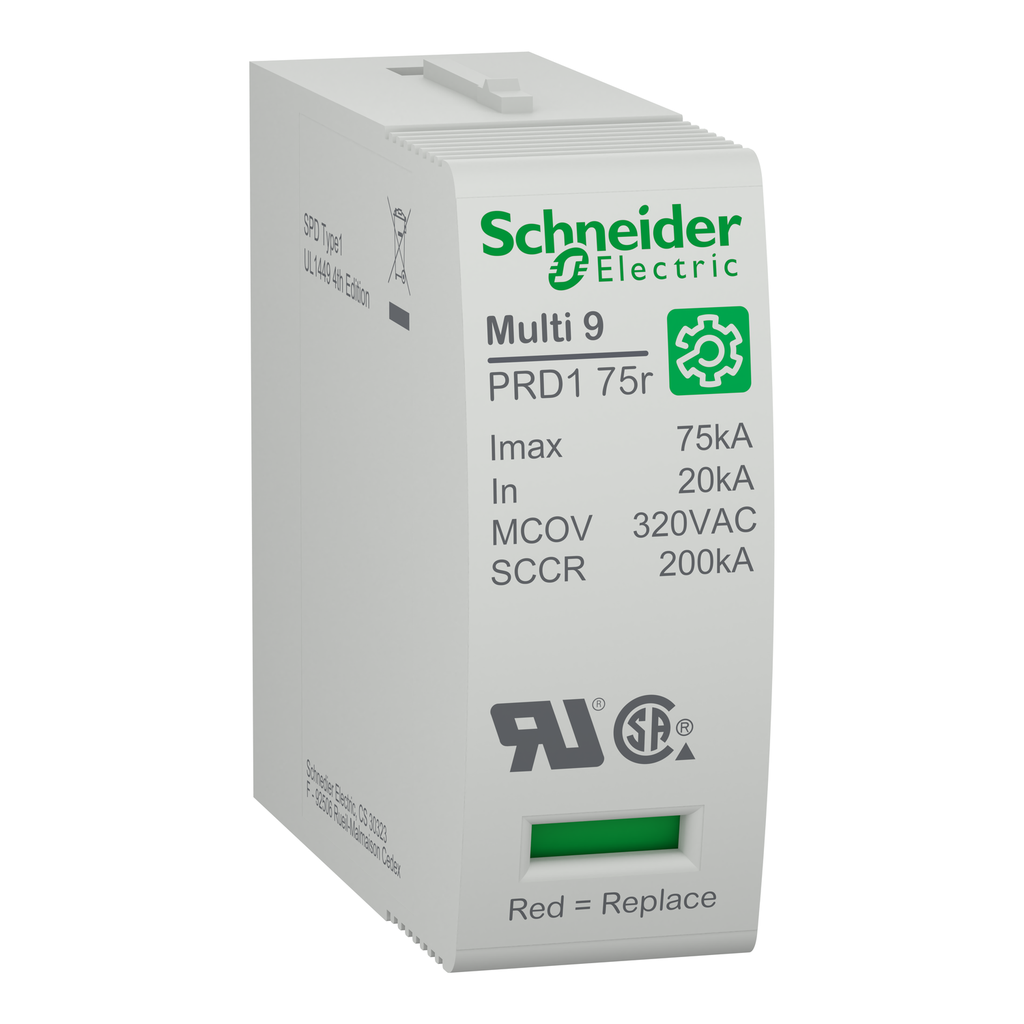

This Multi9 product is a cartridge for PRD1 75r surge protection device. The Imax maximum discharge current is 75kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage is 320VAC. The maximum Up voltage protection level is 1000V. It can be plugged into a surge protecting device module. Its width is 2 pitches of 9mm. The product color is light grey (RAL 7035). The dimensions are (W) 17.5mm x (H) 45mm x (D) 68.5mm. The degree of protection is NEMA 1. The operating temperature is -25.C to 60.C. The storage temperature is -40.C to 85.C. It is compliant withUL 1449 standard.

Technical Information

Mounting Type
Plug-In
Net Weight
82 g
Nominal Discharge Current
20 kA
Standard
UL 1449
Storage Temperature
-40-85 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606481586103
Color
Gray RAL 7035)
GTiN
03606481586100
Product UPC
60648158610
Weight
82 g

Dimensions

Depth
68.5 mm
Height
45 mm
Width
17.5 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • M9L31277
  • M9L33480
  • M9L37480
  • M9L57690
Cross Sell Products
  • M9L33480
  • M9L37480
