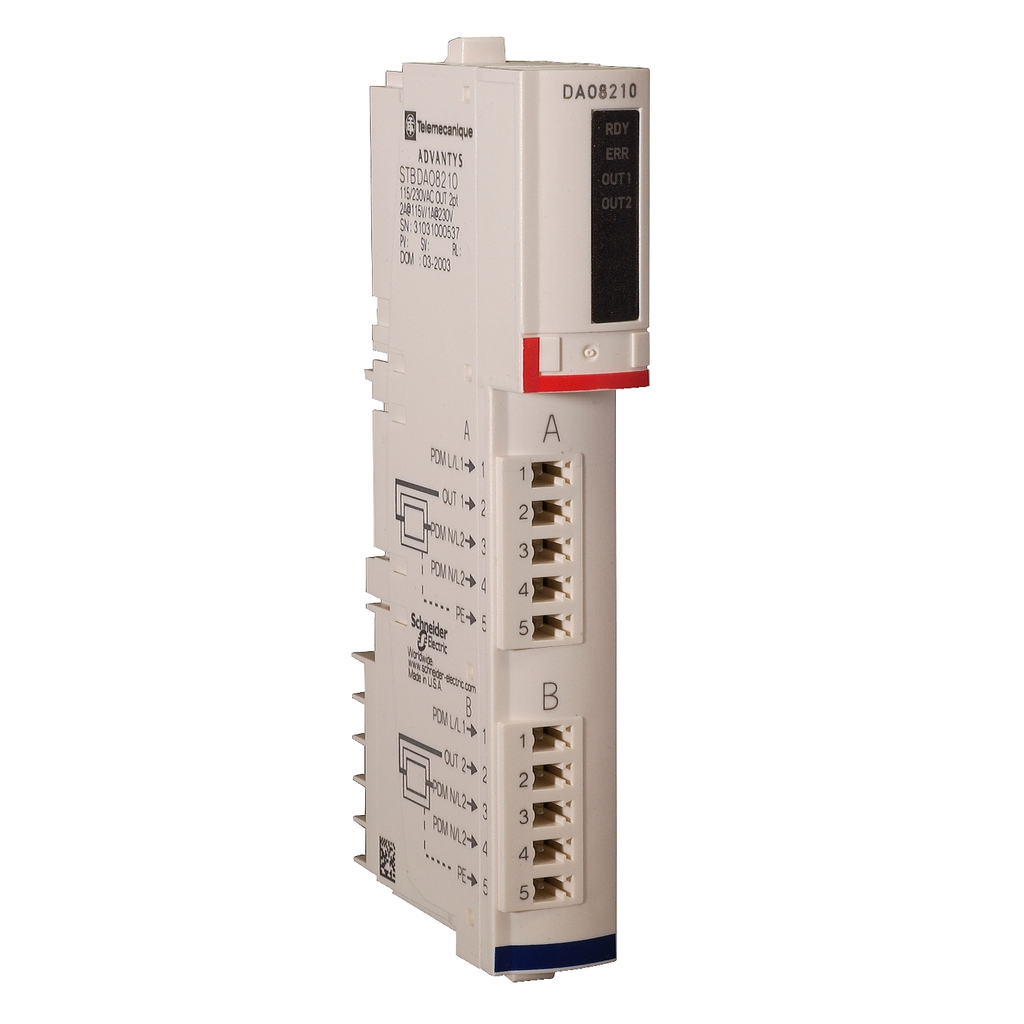

SQUARED STBDAO5260K standard digita

Manufacturer: Square-D / Schneider | Catalog # STBDAO5260K | Cooper Electric Part # 1783226
$183.04 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This product is an offer of Schneider Electric's Modicon STB distributed I/O solution range. It is a standard digital output kit for I/O base and power distribution modules. The kit consists of a base, a module, a 5-terminal spring clamp connector, and a

Technical Information

Applications
I/O BASE STBXBA2000-POWER DISTRIBUTION MODULE STBPDT2100/2105
Current
70 mA
Enclosure
IP20 EN 61131-2 CLASS 1
IP Rating
IP20
Net Weight
0.067 kg
Output
1000 MA 60 AC-2000 MA 30 AC,115 V,2,AC,POSITIVE OR NEGATIVE,TRIAC
Output Voltage
74-132 V
Power Supply
70 MA 5 V DC LOGIC BUS,POWER DISTRIBUTION MODULE
Standard
IEC 61131-2
Storage Temperature
-40...185 degrees F Without Derating
Temperature Rating
0 to 60 C
Type
STANDARD DIGITAL OUTPUT KIT

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Schneider Electric
Sub Brand
MODICON

General Product Info

12-Digit UPC
785901609797
GTiN
03595863949001
Product UPC
78590160979
Weight
0.067 kg

Dimensions

Depth
2.76 in
Height
0.72 in
Length
70 mm
Warranty Length
18 mth
Width
5.05 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,FM Class 1 Division 2,UL
Country of Origin
Indonesia
Range Compatibility
  • Logic/motion controller - Modicon M262
  • Modicon M580
  • third party
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Typical Current Consumption
  • 70 mA 5 V DC
Maximum Leakage Current
  • 2 mA AC at state 0
Response Time On Output
  • < 10 ms maximum (turn on)
  • < 10 ms maximum (turn off)
Discrete Output Number
  • 2 triac at 115 V AC
Persona Type Names
  • End User
  • OEM - Control Panelbuilder
  • System Integrator
Discrete Output Current
  • 1000 mA at 60 °C
  • 2000 mA
Relative Humidity
  • 95-95 % 60-60 °C without condensation
Persona Type Ids
  • EU
  • OM8
  • SI
Kit Composition
  • STBXBA2000 base
  • STBDAO5260 module
  • STBXTS1100, 5-terminal screw type connector
  • STBXTS2110, 5-terminal spring clamp connector
Shock Resistance
  • 30 gn 11 msIEC 88 reference 2-27
Product Compatibility
  • power distribution module STBPDT2100/2105
  • I/O base STBXBA2000
Product Certifications
  • CSA
  • UL
  • FM Class 1 Division 2
Discrete Output Voltage
  • 115 V ACtriac
Compare
