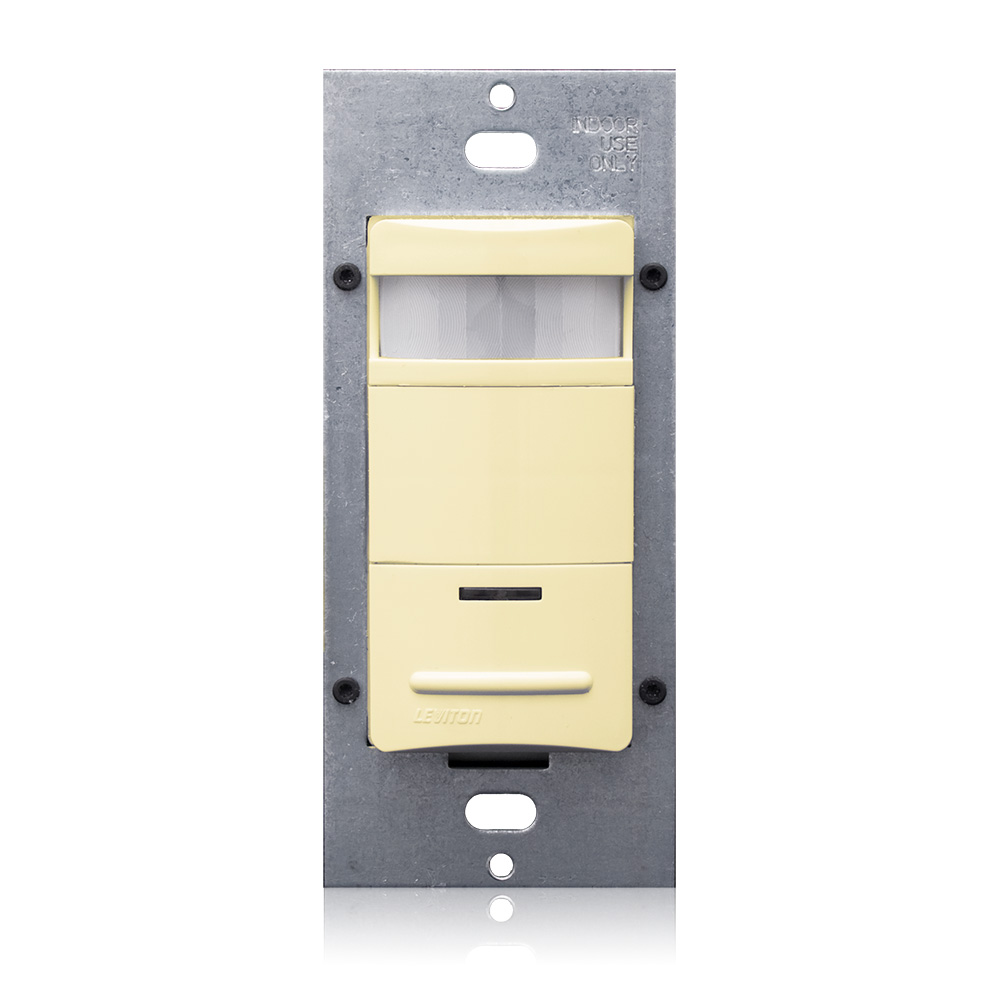

LEV ODS15-TDI IV PIR VAC SENS NO NE

Manufacturer: Leviton Mfg Co | Catalog # ODS15-TDI | Cooper Electric Part # 1779594
$103.61/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Vacancy Sensor, PIR, (ManualON/AutoOFF) Lighting Control, Vandal resistant, Manual 1 Pole Wall Switch. Robust Latching 15A Relay, No-Neutral wire required. Adjustable Service Switch: OFF/AUTO/ON (Keep in AUTO) 120/208/220/230/240/277VAC, 50/60hz, Field of View 2100 sq ft (Motion: Major 60'x40'; Minor 40'x20'), Dual Pyrometers for true 180 degree view with Blinders (32 degree block on each side). Adjustable time delay (in Adapting mode: 30s, 5/10/20m, Non-Adapting mode: 5/10/20/30m), Walk-through features. Audible Beep Warn. Light Sensor (Photocell) included for Ambient Light Hold-Off feature. Energy Code Compliant. CEC Title 20/24 compliant. USMCA Compliant. Wall plate sold separately. Color: Ivory

Technical Information

Applications
For Commercial Indoor, Education, Healthcare, Hospitality, Manufacturing, Retail, Warehouse
Coverage
2100 sq-ft
Device Type
Vacancy Sensor
Frequency
50 Hz
Grade
Commercial
LED Color
Red
Mounting Type
Wall Switch
Operating Temperature
0 degrees
Power Consumption
120 m 280m W
Size
47.2 mm
Standard
CUL Listed Complies (24) And (20),FCC Regulations,NOM,NYC (L48),UL Listed
Storage Temperature
-10 To 85 degrees C
Switch Type
Single-Pole
Type
Wall Switch
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477612248
Color
Ivory
Environmental Conditions
0 to 50 50 Deg C Operating
GTiN
00078477612248
Product UPC
07847761224

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Certifications
UL/cUL
Country of Origin
Mexico
Features
  • The Leviton Decora Wall Switch Passive Infrared (PIR) Vacancy Sensor (ODS15-TD) uses Passive Infrared (PIR) detection technology to monitor a room for vacancy through a segmented Fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and keeps the lights ON. The lights will remain ON as long as there is an occupant moving through the sensor zones. Do you have a question about an occupancy sensor or vacancy sensor?
Color Variations
  • Light Almond
