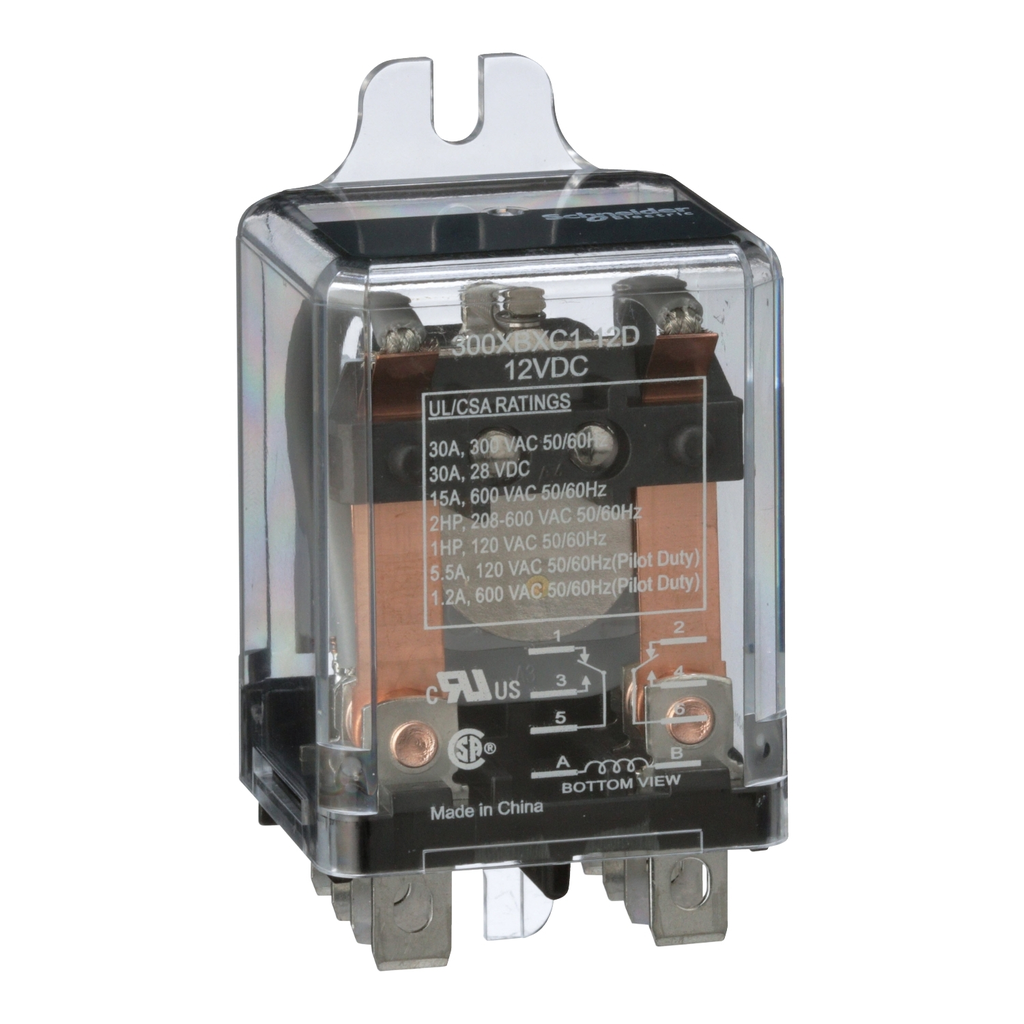

This product belongs to Schneider Electric, an offer of 300 series power relay range. It offers a high contact rating with a magnetic blowout of 30A at 300V AC. This product can hold motor loads up to 2HP at 208V to 600V AC with a nominal coil voltage of 12V DC. Its maximum switching voltage of 600V and improved dielectric strength of 4000V(rms) between mutually isolated conductive elements and frame make it suitable for high-power switching applications. It offers a DPDT (double pole double throw) contact configuration with increased space between stationary contact terminals. This makes it an ideal solution for various application requirements and also enables the use of fully booted Quick Connect terminals. Its dimensions are 37.8mm (width) x 73.6mm (height) x 34.5mm (depth), and it weighs 85g. It has a 2mm contact gap, 8mm creepage, and clearance for mounting that meets international requirements. 600V and improved dielectric strength 4000V(rms) between mutually isolated conductive elements and frame make relay suitable for high-power switching applications. Its wide range of accessories and the side flange mounting option help increase design and installation flexibility. contact configuration with increased space between stationary contact terminals makes an ideal solution for variety of application requirements and enables use of fully booted Quick connect terminals. Side flange mounting option with wide range of accessories helps increase design and installation flexibility. 2mm contact gap and 8mm creepage and clearance for mounting meet international requirements It complies with directives such as RoHS, WEEE, and REACh relating to environmental protection.
