ABB SA 6 N AL 2HOLE NEMA STR LUG 6

Manufacturer: Blackburn / Thomas & Betts | Catalog # SA-6-N | Cooper Electric Part # 1777748
$26.47/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet

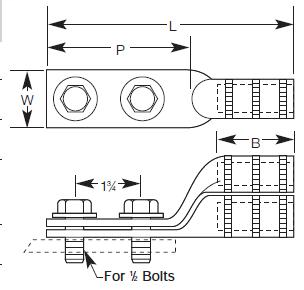

Aluminum Two-Hole NEMA Lugs - straight lug, #6 ACSR, #6 Compressed , #4 Solid - Compact. Installing dies TU, 52, BG, 243, 5/8, CSA22. Length 5-1/8 inch. Pad 7/8 inch wide x 3-1/16 inch long x 7/32 inch thick. (2) 9/16 inch diameter holes on 1-3/4 inch center. Barrel 1-15/32 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors

Technical Information

Applications
Routing System is a System of Channel, Fittings, Covers, and Brackets Designed to Route, Manage, and Protect Fiber Optic and High Performance Copper Cabling Above Network Racks and Cabinets within Data Centers and Service Provider Facilities
Material
Aluminum
Size
5-1/8 x 7/8 inch wide
Standard
ANSI C-73
TC Connection
Compression
Type
Compression Terminal Lug
Wire Size
6 STR AWG ; 6 COMPR AWG ; 4 COMPT AWG ; 4 SOL AWG ; 6 ACSR AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
783786750320
GTiN
00783786750320
Product UPC
78378675032
