SQUARED NSYSM1612302DP Spacial SM c

Manufacturer: Square-D / Schneider | Catalog # NSYSM1612302DP | Cooper Electric Part # 1774929
$1,442.33 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

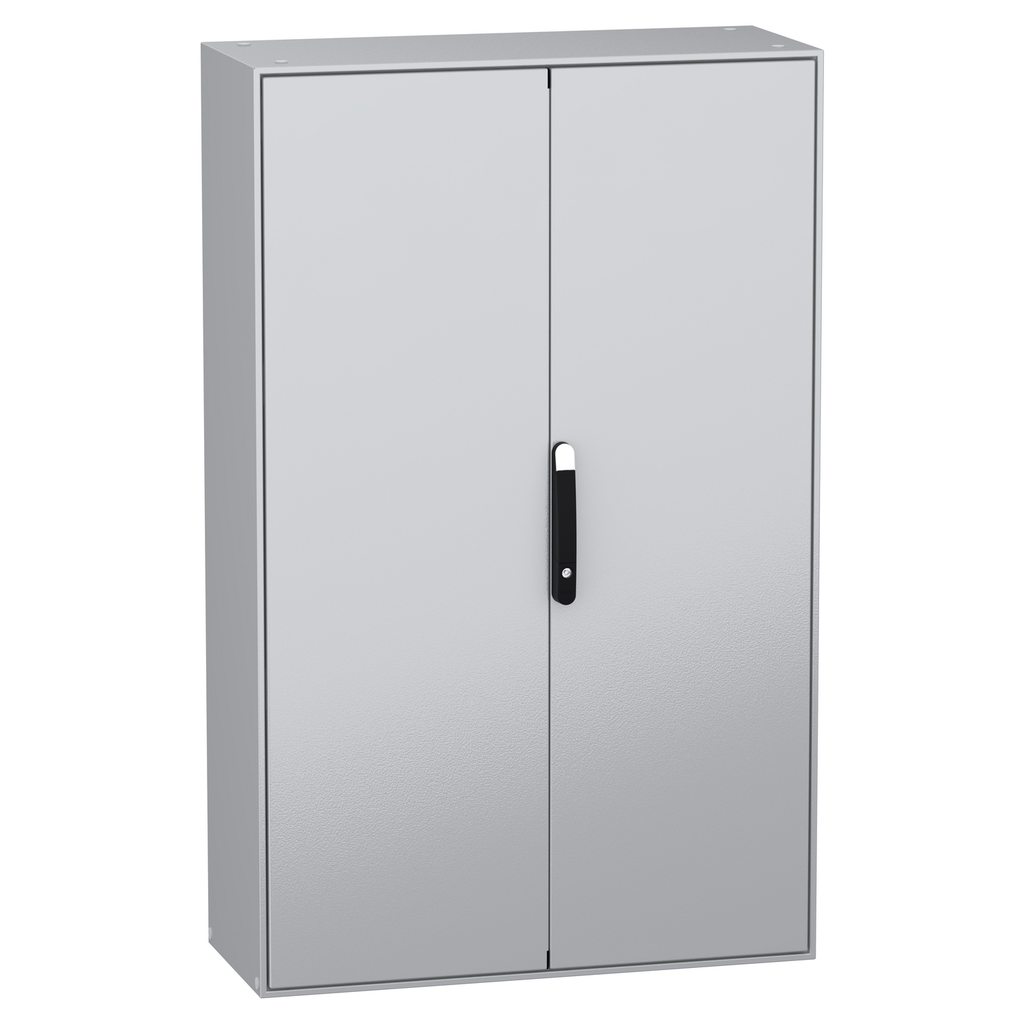

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1599 x 600 x 300 mm. Back panel welded, mounting plate included. 4 point door locking system with handle DB 5mm. Sheet steel, galvanized steel mounting plate. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets included.

Technical Information

Body Type
Front Part Forming A Rigid Frame With Welded Corners, Single Piece Body With Welded Rear Panel
Cable Entry
1 Entry
Door Type
Solid
Lock Type
5 mm
Material
Steel
Net Weight
130.5 kg
Number of Doors
Front 2
Standard
IEC 62208
Surface Finish
Epoxy-Polyester Powder

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606485120167
Color
Enclosure Gray RAL 7035),Handle Black RAL 9005)
Finish
Epoxy-Polyester Powder
GTiN
03606485120164
Product UPC
60648512016
Weight
130.5 kg

Dimensions

Enclosure Depth
300 mm
Enclosure Height
1600 mm
Enclosure Wdth
1200 mm
Height
1600 mm
Warranty Length
18 mth
Width
1200 mm

Certifications and Compliance

Certifications
BV,DNV,UL
Country of Origin
Spain
Features
  • Electrical enclosure design that contains recycled steel made with renewable energy to face environmental challenges.
  • IEC and UL compliant industrial steel cabinet, making it sturdy, robust, and durable for maximum component protection.
  • Ergonomic design for convenience & time-saving operations.
  • Large choice of sizes and accessories to simplify mounting, to adapt any control panel and electrical panel requirement.
  • Reusable recycled cardboard packaging corners.
  • Quick-fixing system that pre-holds the plate before final screwing fixation, allowing the operation by only one person.
  • Ideal compact size for floor mount.
  • Black door handle (RAL9005) adds a sleek touch to the design.
