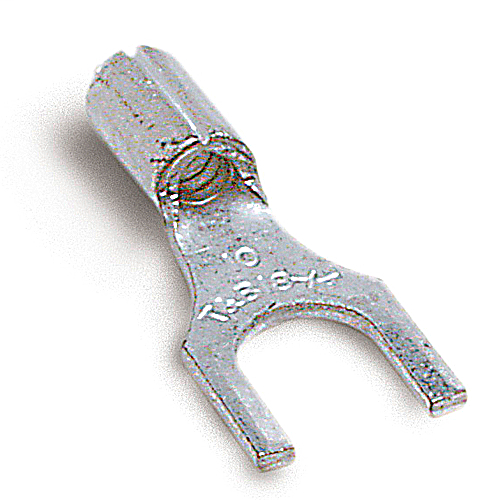

Product image for Thomas & Betts B64 #6 Bolt Hole 18-14 AWG Wire Range Metallic Non-Insulated Fork Terminal
Image thumbnail 0
Image thumbnail 1
Email

Thomas & Betts B64 #6 Bolt Hole 18-14 AWG Wire Range Metallic Non-Insulated Fork Terminal

Manufacturer: ABB | Thomas & Betts | Catalog # B64 | Cooper Electric Part # 177331
$55.49/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Non-Insulated Fork Terminal, Length .75 Inches, Width .31 Inches, Bolt Hole #6, Wire Range #18-#14 AWG, Copper, Tin Plated, 1,000 Pack

Technical Information

Conductor Size
18-14 AWG
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#6
Temperature Rating
150 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210809199
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363148548
Product UPC
78621080919
Features
  • These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
