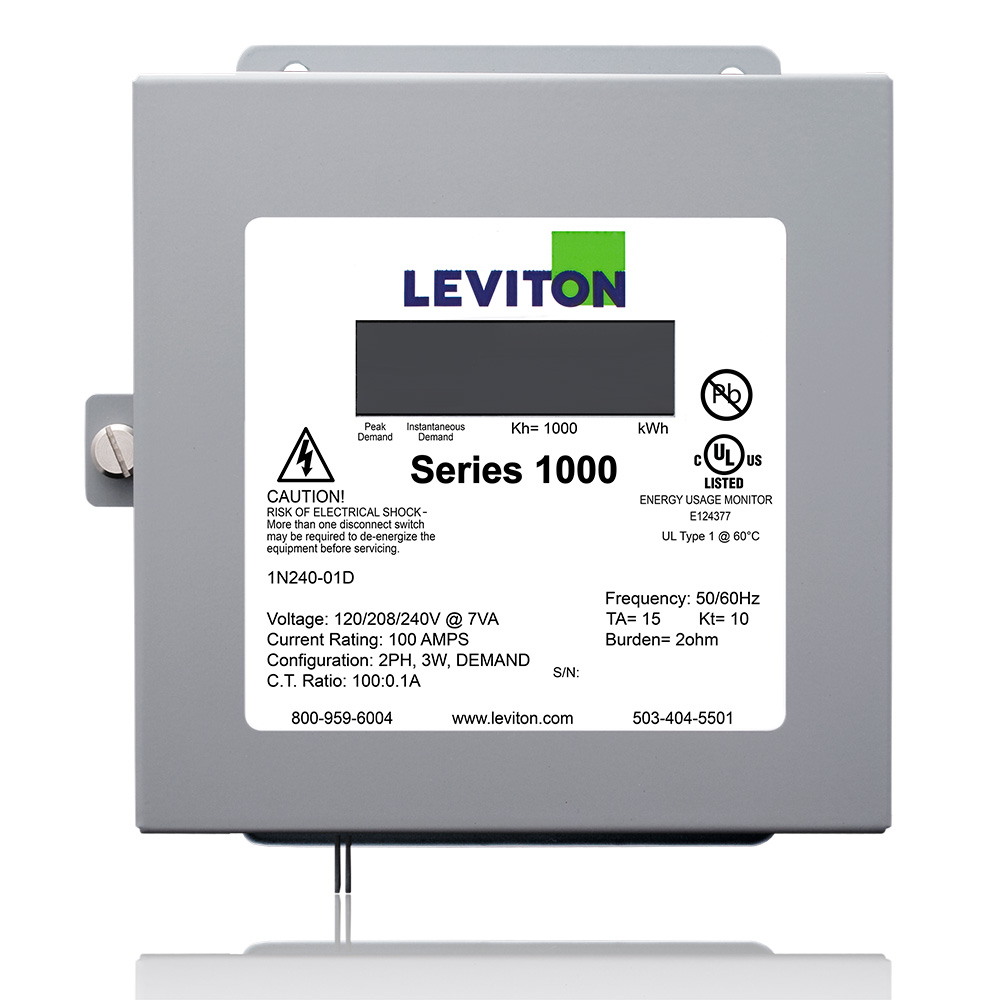

Product image for LEV 1N240-1D SERIES 1000 120 208 24
Image thumbnail 0
Image thumbnail 1
Email

LEV 1N240-1D SERIES 1000 120 208 24

Manufacturer: Leviton Mfg Co | Catalog # 1N240-1D | Cooper Electric Part # 1771910
$724.20 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens friday 7:00am et
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Series 1000 Submeter, Dual Element Demand Meter, 1P/3W, 120/208/240V, 100:0.1A, Max 100A, SUBMETER ONLY

Technical Information

Accuracy
1 PCT
Amperage
100 Amp
Applications
Commercial, Institutional, Industrial, Government
Communication Type
Pulse Output
Display Type
LCD
Enclosure
Dual Element,JIC Steel,Surface Mount
Enclosure Rating
1
Enclosure Type
Indoor (NEMA 1)
Grade
Revenue
Number of Phases
2 Phase
Standard
ANSI C12.1,ANSI C12.20,CULus Listed (916),UL Listed
Type
Indoor
Voltage
120 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Leviton
Sub Brand
METERS

General Product Info

12-Digit UPC
078477556092
GTiN
00078477556092
Product UPC
07847755609

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
USA
Features
  • Measures kWh and demand (optional)
  • Conforms to all applicable standards of ANSI C12.1
  • Equipped with an Isolated Pulse Output channel
  • Utilizes revenue-grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
  • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
  • Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
  • Interfaces with numerous communication systems Hardwired Automatic Meter Reading (AMR) or wireless AMR
  • Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
  • Load Indicator LED verifies meter functionality
  • Reverse Phase Indicator LED illuminates if the meter is improperly installed
  • UL/cUL Listed for UL 916 Energy Monitoring Equipment
  • Five year warranty
  • The Leviton VerifEye™ Series 1000 line of revenue-grade submeters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 1000 submeters are easy to specify and install for new construction and retrofits. Do you have a question about submetering? Contact us to learn more.
