Erico LPA30958 Air Terminal Base, Horizontal Mount, Imperial Thread, Aluminum, 5/8 UNC Thread

Manufacturer: Erico, Inc | Catalog # LPA30958 | Cooper Electric Part # 1771423
$52.06/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

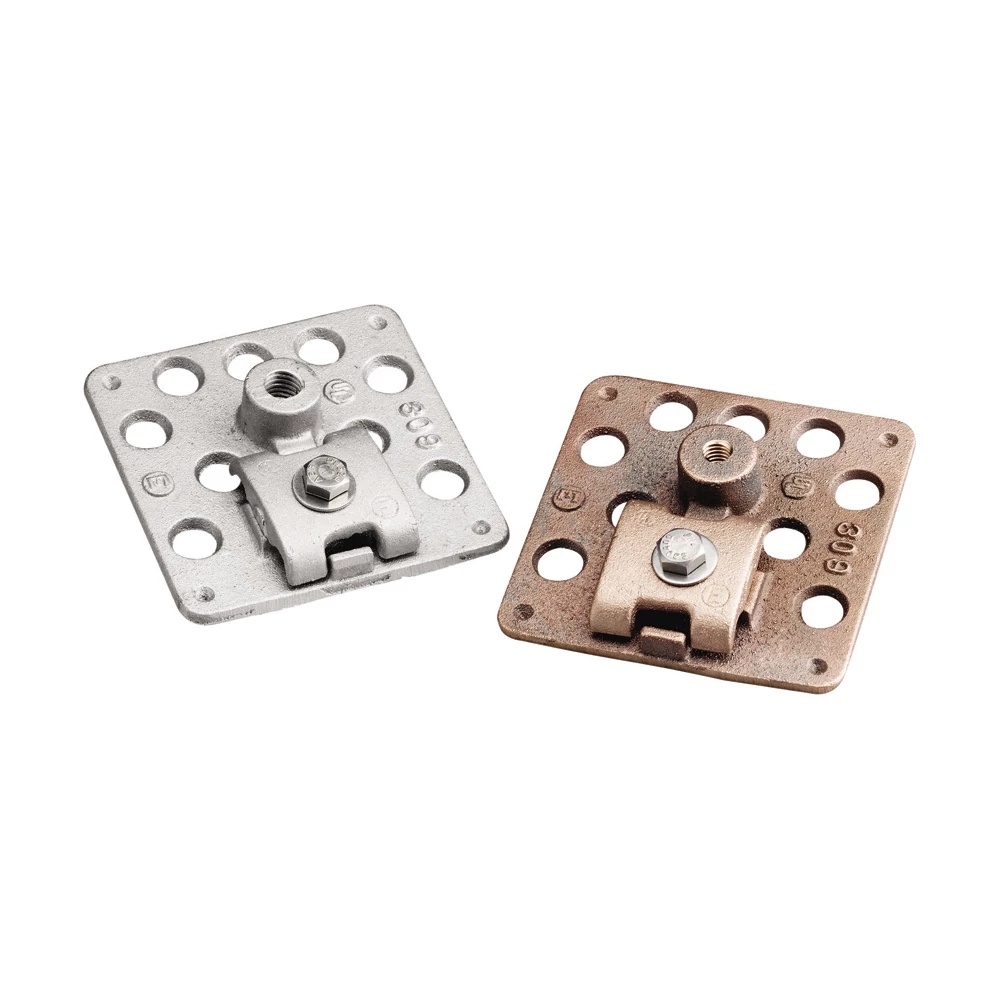

Air Terminal Base, Horizontal Mount, Imperial Thread, Aluminum, 5/8 UNC Thread

Technical Information

Applications
Facility Electrical Protection; Lightning Protection; Rail; Solar Power; Telecom; Utility
Conductor Size
4/0 AWG
Material
Aluminum
Standard
UL
Thread Size
5/8 UNC
Type
Air Terminal Base, Horizontal Mount, Imperial Thread

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856423690
GTiN
00782856423690
Product UPC
78285642369
Weight
0.14 kg

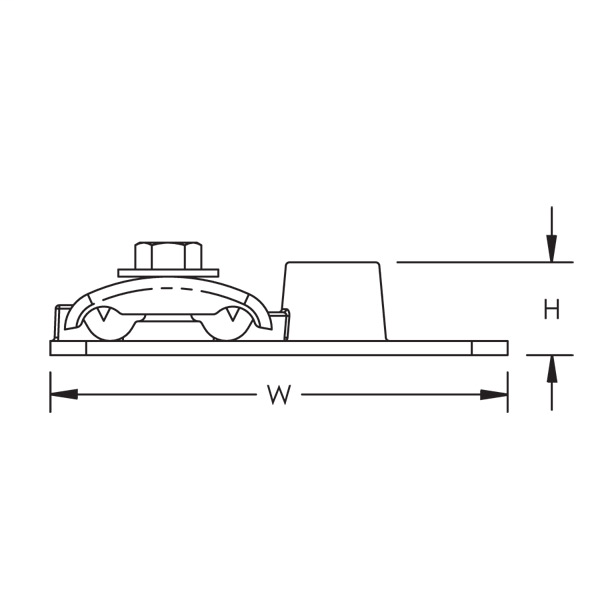

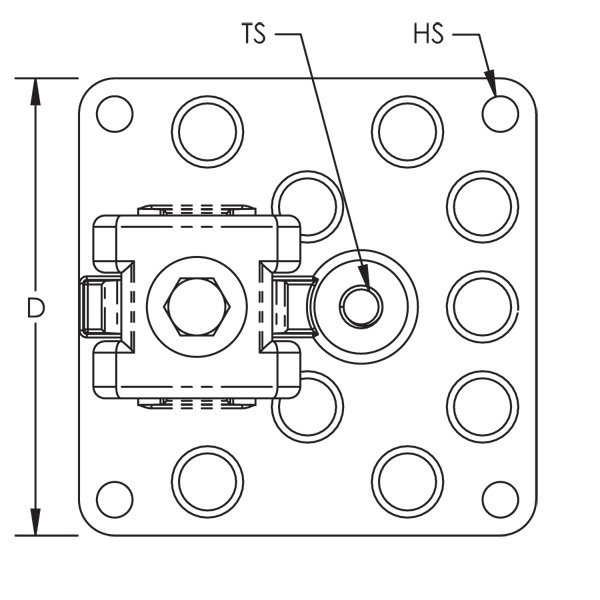

Dimensions

Depth
4 Inch
Height
13/16 Inch
Hole Size
5/16 in
Width
4 in

Certifications and Compliance

Certifications
UL
Certifications
  • UL ANSI/UL 96
Features
  • Can be fastened mechanically or bonded using hot pitch, roofing compound or commercial adhesive on built-up roof surfaces or other location where holes cannot be made
  • Positive single bolt tension for multi-directional cable clamping
