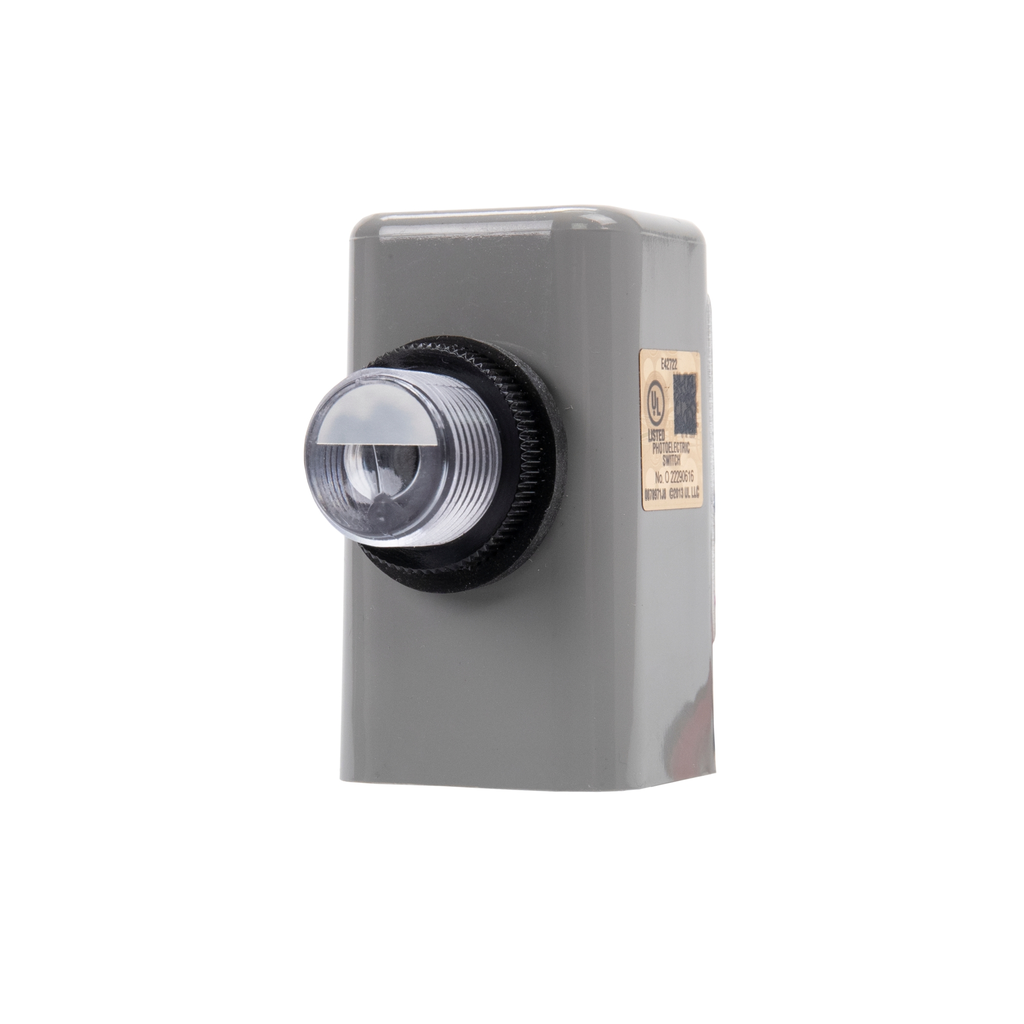

Product image for INT-MAT EK4027S NIGHTFOX Button Ele
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

INT-MAT EK4027S NIGHTFOX Button Ele

Manufacturer: Intermatic, Inc | Catalog # EK4027S | Cooper Electric Part # 1770420
$73.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. Mounts internally to an enclosure with a minimum installation hole size of 5/8. diameter. Comes with 9" wire leads.

Technical Information

Applications
Outdoor Lighting Control
Enclosure
Polycarbonate
Material
Polycarbonate
Max Operating Temperature
158 degrees F
Min Operating Temperature
-40 degrees C
Mounting Configuration
Button
Operating Cycles
10k
Operating Temperature
-40 to +158 DEG F -40 to +70 DEG C
Power Consumption
<0.5 WTT @ 277 VAC
Sensor Type
Electronic photocontrol
Size
1.31 WIDTH x 1.25 DEPTH x 2.25 HIGH IN; 3.35 WIDTH x 3.18 DEPTH x 5.72 HEIGHT CM
TC Connection
Color Coded Lead
Temperature Rating
70.0 degrees C
Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Voltage
347 Volt

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275152366
Color
Gray
Finish
Plastic
GTiN
00078275152366
Product Category
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product Type
Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges
Product UPC
07827515236
Used With
Lighting, pathways

Dimensions

Depth
1-1/4 Inch
Height
2-1/4 Inch
Warranty Length
8 yr
Width
1.313 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Nickel; DEHP
Country of Origin
Mexico
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations
  • 220 J MOV surge protection element
  • Mounts internally to enclosure
  • Features 3/8\" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter
