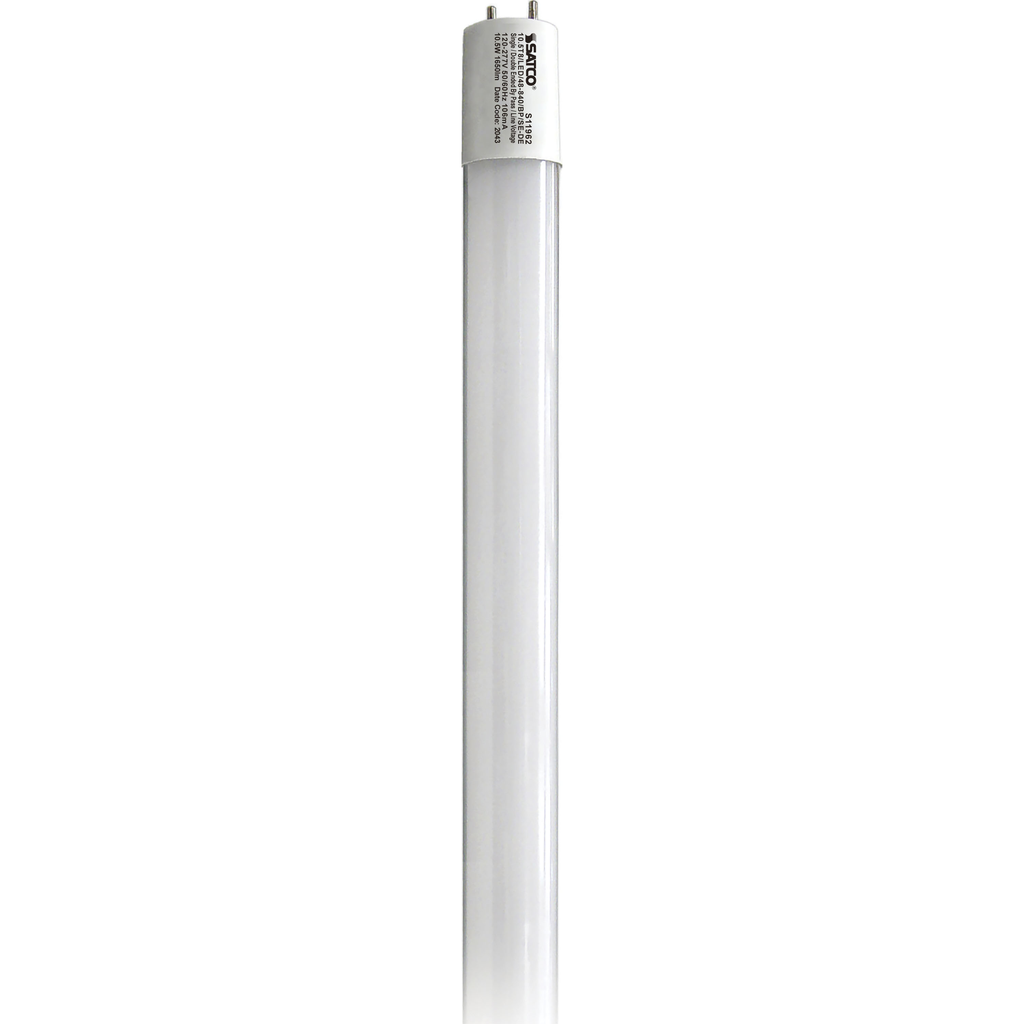

Product image for Satco S11962 10.5 Watt T8 LED; 4Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Satco S11962 10.5 Watt T8 LED; 4Ft; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1700 Lumens; Type B; Ballast Bypass; Single or Double Ended Wiring

Manufacturer: Satco | Nuvo | Catalog # S11962 | Cooper Electric Part # 1763831
$12.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
10.5W T8 LED - 4Ft - 4000K - G13 Base - 50K Hours - 1700L - Type B - Ballast Bypass - Single or Double Ended Wiring

Technical Information

Amperage
0.088-0.038 Amp
Average Rated Life
50000 hr
Base
G13
Beam Angle
210
Beam Spread
210
Bulb Shape
T8
Color Temperature
4000 K
Correlated Color Temp
4000 K
Dimmable?
No
Incandescent Equivalent
50 W
Indoor Outdoor
Indoor;Outdoor
Lens Color
Gloss,White
Lens Material
Glass
Lumens
17,000 Lumen
Material
Glass
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
48 in
Standard
CULus
Technology Type
LED
Type
T8
Voltage
120 Volt
Wattage
10.5 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923119620
Finish
Gloss
GTiN
00045923119620
Housing Color
White
Product UPC
04592311962
Weight
0.43 lb

Dimensions

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • 4-ft length
  • 10.5W
  • 25W/28W/30W/32W Fluorescent Replacement
  • Ballast Bypass Type B
  • 120-277V Range Voltage
  • Damp Location Rated
  • Suitable for use in enclosed fixtures
  • rated for use in damp locations
  • Glass Tube
  • 210-degree beam angle
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
