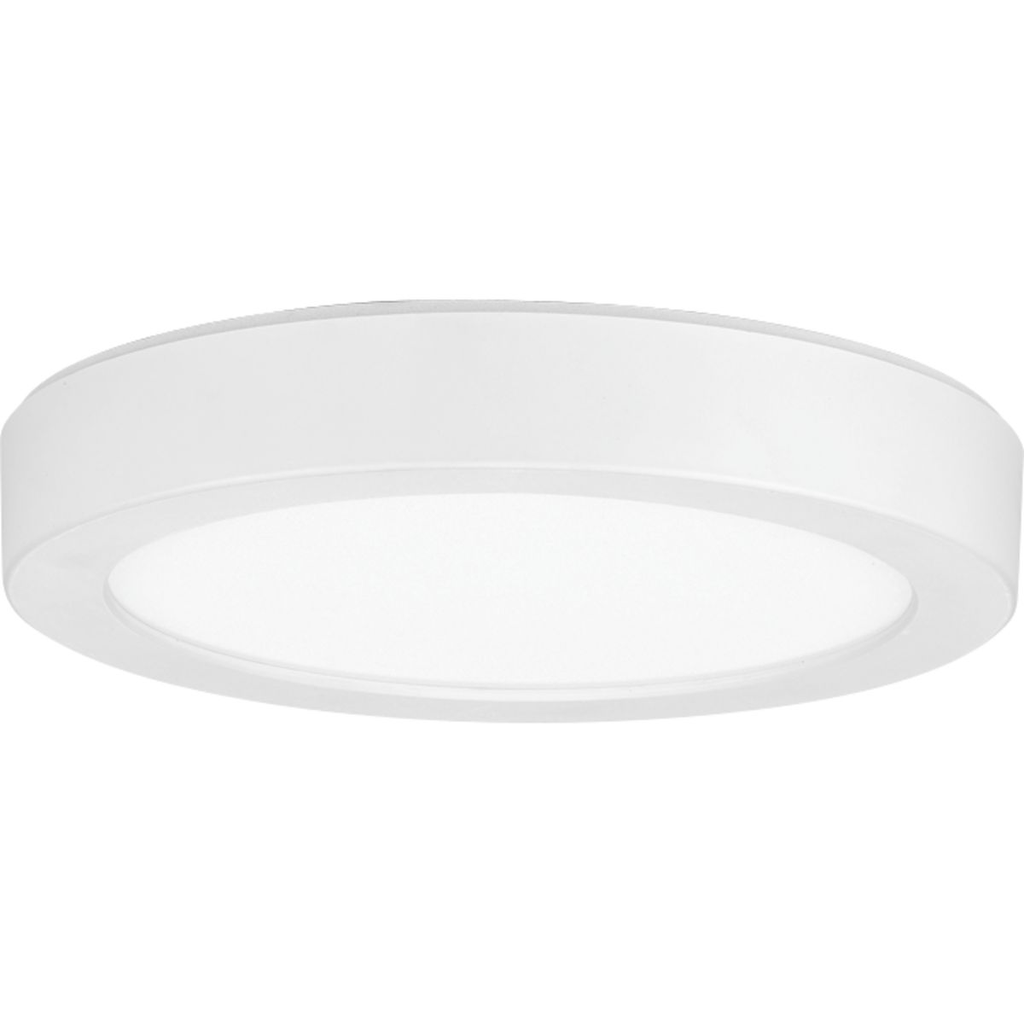

Product image for Progress P810015-030-30 Everlume Collection 7" Edgelit LED Surface Mount
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Progress P810015-030-30 Everlume Collection 7" Edgelit LED Surface Mount

Manufacturer: Progress Lighting | Catalog # P810015-030-30 | Cooper Electric Part # 1760910
$57.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Installation / Instruction Manual
EVERLUME Edgelit technology provides a large glare free, bright, and evenly illuminated surface for a variety of applications for both residential and commercial settings. Offering a very slim profile, the LED Edgelit flush mount is available in three sizes. The 7" fixture gives 1056 lumens (delivered), 90CRI and is 3000K. The integrated driver does not recess into junction box, allowing for easy install in 4" octoganal, 4" round PVC and 4-1/2" ceiling pan junction boxes. This fixture is wet location listed and offers a 50,000 hour LED life.

Technical Information

Amperage
0.128 Amp
Bulb Included
Yes
Color Accuracy
90
Color Rendering Index
90
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Frequency
60 Hz
Glass Style
Frosted
Lamp Type
LED
Lamp Wattage
15 W
Lumens
1,056 Lumen
Material
Polycarbonate
Number of Lamps
1,1
Power Source
Hardwired
Style
Transitional
Type
Non-Reversing
Voltage
120 Volt
Wattage
15 Watt
Wire Length
6 in

Packaging

Shipping Weight
1.26 Pound

Manufacturer Information

Brand
Progress

General Product Info

12-Digit UPC
785247232178
Collection
Edgelit
Color
White
Finish
Painted,Painted,White
GTiN
00785247232178
Product UPC
78524723217
Weight
1.26 Pound

Dimensions

Depth
7 Inch
Height
1.062 Inch
Length
7 Inch
Warranty Length
5 yr
Width
7 Inch

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
China
Features
  • 7 \" EVERLUME Edgelit flush mount with LED technology 3,000K, 90 CRI, 1056 lumens (delivered)
  • Simple installation to steel mounting plate
  • Light weight non-conductive polycarbonate luminaire construction
  • Polycarbonate diffuser controls glare and provides an evenly illuminated surface
  • Integrated DC LED power supply capable of flicker-free dimming to 10% brightness with many Triac/Forward Phase dimmers
  • Can be installed to 4\" octagonal j-box, 4x1/2\" round shallow j-box, 4\" round PVC j-box and single gang switch boxes
  • Can be mounted on ceiling or wall
  • Suitable for use in IC or Non-IC applications
  • Meets California Title 24 JA8-2016 and is Energy Star listed
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
