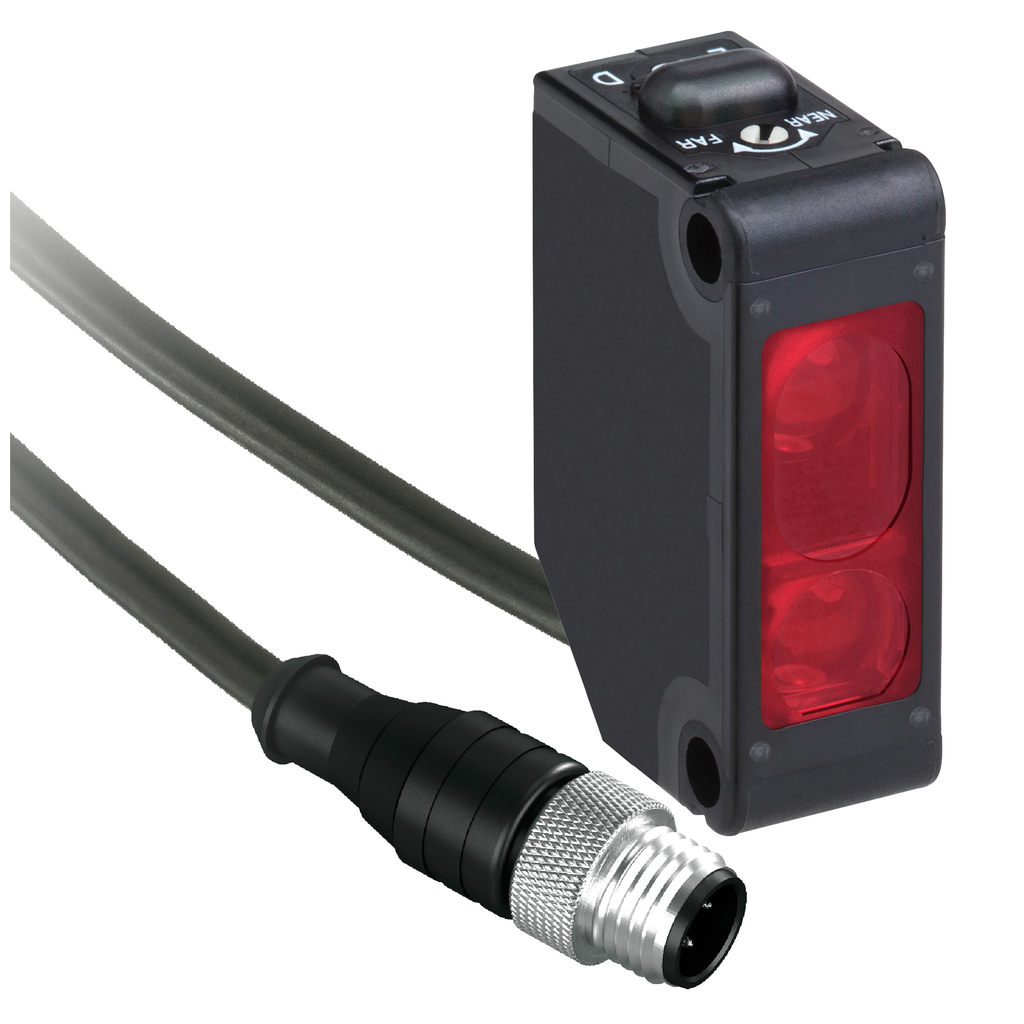

Product image for SQUARED XUM8APCNL03M12 Photoelectri
Image thumbnail 0
Image thumbnail 1
Email

SQUARED XUM8APCNL03M12 Photoelectri

Manufacturer: Square-D / Schneider | Catalog # XUM8APCNL03M12 | Cooper Electric Part # 1760249
$68.30/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Photoelectric sensors XU, XUM, BGS, Sn 0.3 m, 12...24 VDC, M12, cable 0.3 m

Technical Information

Amperage
<= 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION)
Applications
-
Current
20 mA
Enclosure
IP67 CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Net Weight
0.02 kg
Operating Temperature
-25-55 degrees C
Output
1 NO or 1 NC programmable;PNP;Solid state;Discrete
Sensing Range
0.3-0.3 M DIFFUSE WITH BACKGROUND SUPPRESSION,> 0.98...3.28 FT (> 0.3...1 M)
Size
0.79 in
Storage Temperature
-30-70 degrees C
TC Connection
REMOTE MALE CONNECTOR M12, 4 PINS
Type
Diffuse with background suppression;Photo-electric sensor;Miniature;General purpose single mode
Voltage
12...24 Volt DC REVERSE POLARITY PROTECTION

Manufacturer Information

Brand
Telemecanique

General Product Info

12-Digit UPC
785901145233
GTiN
03389119073059
Product UPC
78590114523

Dimensions

Cable Length
0.3 m
Depth
20 mm
Height
33 mm
Length
11 mm
Warranty Length
18 mth
Width
11 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CURus
